Fr4 PCBA OEM&ODM Manufacturing PCB Assembly PCBA PCB Board

Name: Fr4 PCBA OEM&ODM Manufacturing PCB Assembly PCBA PCB Board
Brand: all-electronics-online.com
SKU: 764134885
Availability: InStock
Rating: 5 (105 reviews)

Price:	US $ 0.12-0.21/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FL912
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Thickness:	1.6mm
Copper Thickness:	1oz
Material Type:	Fr4
Surface Treatment:	HASL Lead Free
Solder Mask:	Green, Red, Blue, Black
Silk Screen Color:	White
Board Layer:	2 Layer
Shipping Type:	DHL, UPS, TNT, EMS, FedEx etc
Packing Type:	Carton + Vacumm
Lead Time:	5-7 Days
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V1
Type:	PCBA
Base Material:	Fr4
Brand:	Fastline

Product Description

Product Description

Fr4 PCBA OEM&ODM Manufacturing PCB Assembly PCBA PCB Board

This is a type of FR4 PCBA for the application of Portable Sound Systems. It's a 4 layer PCBA with part in the middle at 1.6mm thick. The base laminate is from Shengyi, It's fabricated per IPC 6012 Class 2 using supplied Gerber data.

Parameter & Data Sheet

Size of FR4 PCBA	60.22 X 132.27mm
Number of Layers	4
Board Type	FR4 PCB
Board Thickness	1.6mm
Board Material	FR-4 1.6mm / Polyimide 25µm
Board Material Supplier	Shengyi
Tg Value of Board Material	60ºC

PTH Cu thickness	≥20 µm
Inner Iayer Cu thicknes	35 µm
Surface Cu thickness	35 µm

Coverlay Colour	Yellow Coverlayer / Green solder mask
Number of Coverlay	2
Thickness of Coverlay	25 µm
Stiffener Material	no
Stiffener Thickness	N/A

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	White
Number of Silkscreen	2

Peeling test of Coverlay	No peelable
Legend Adhesion	3M 90ºC No peeling after Min. 3 times test

Surface Finish	Immersion Gold
Thickness of Nickle/Gold	Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25ºC±125ºC, 1000 cycles.
Thermal Stress	Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2

Assembly products show

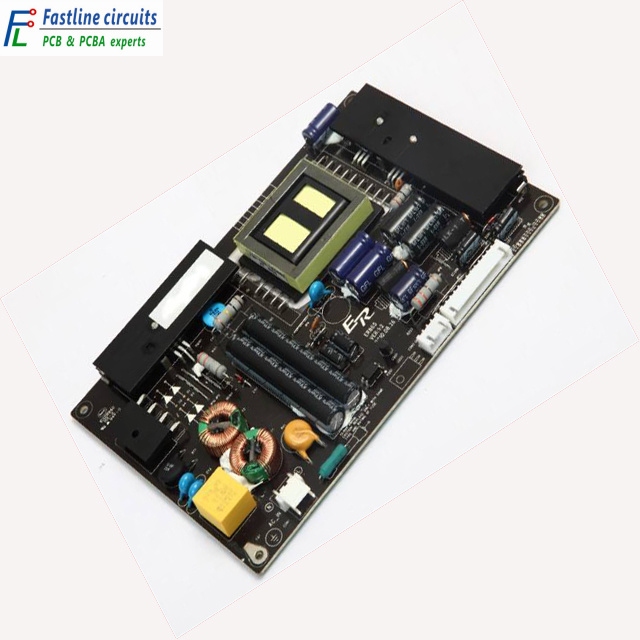

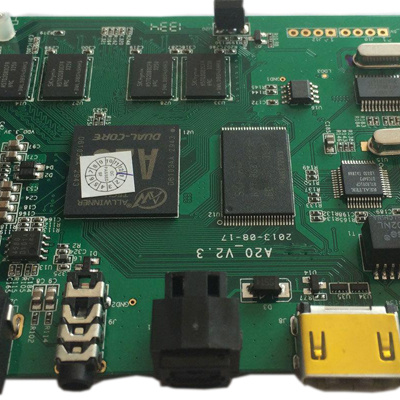

FR4 PCBA

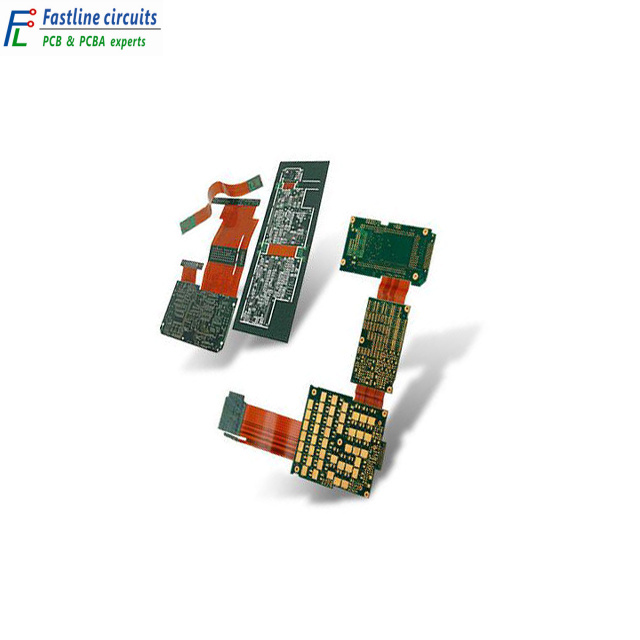

FPC PCBA

HDI PCBA

High frequency PCBA

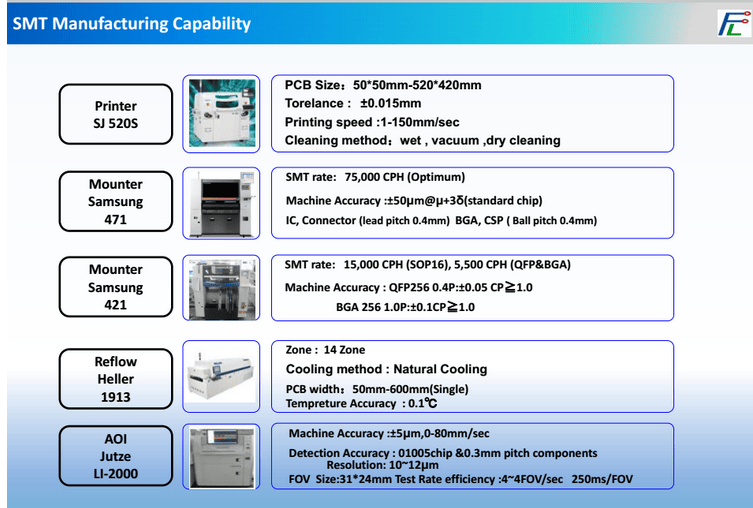

Our PCB Assembly capability

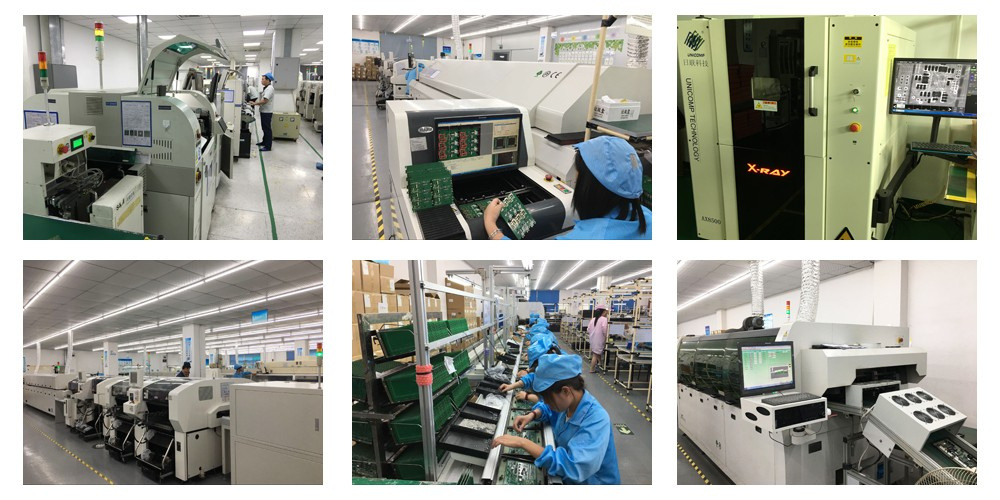

Assembly line

Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
