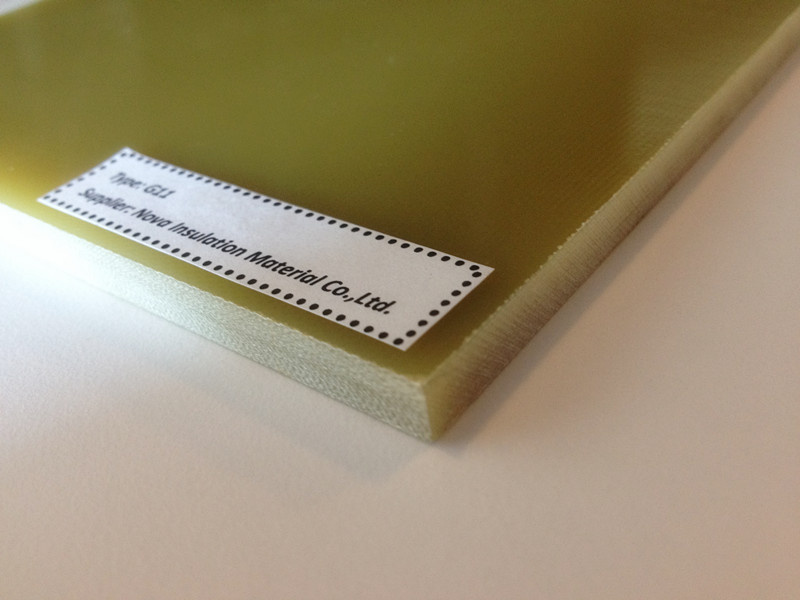

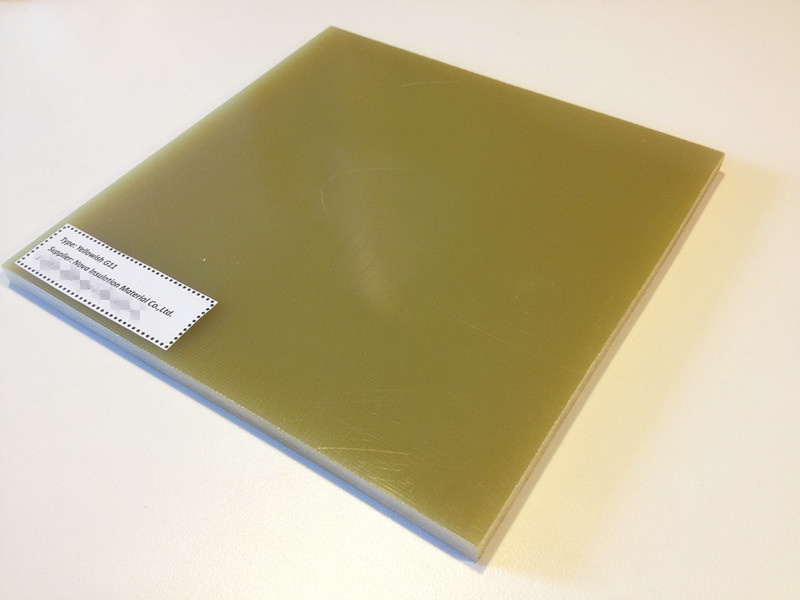

Fr5 Rigid Laminate for Industrial Application

Name: Fr5 Rigid Laminate for Industrial Application
Brand: all-electronics-online.com
SKU: 753897805
Availability: InStock
Rating: 4.3 (73 reviews)

Price:	US $ 0.8-1kilogram
Trade Terms:	FOB,CFR,CIF
Min Order:	1000kilogram
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	fr5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	1020*1220
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV
Color:	Nova
Brand:	Nova

Product Description

G11 is similar to G10, with the addition of a higher operating temperature
And improved mechanical strength at elevated temperature up to 180 Degree Celsius.

Applications:
Widely used as insulating structural parts in electrical & mechanical equipments, such as generators, motors, transformers, terminal boards, PC boards, washers, and many others.

Advantages:
* G11 Temperature Index: 155 / 180 Degree Celsius
* Maximum operating temperature up to 200 degree Celsius
* Proof tracking index (CTI) 600V, halogen-free, and flame -resistance. (specific grade)
* Higher mechanical at elevated temperature.
* Excellent rigidity & dimensional stability
* Good dielectric properties
* Low water absorption

Specifications:
1) Grade: G11
2) Color: Brown; Yellowish;
3) Thickness range: 0.1mm~100mm

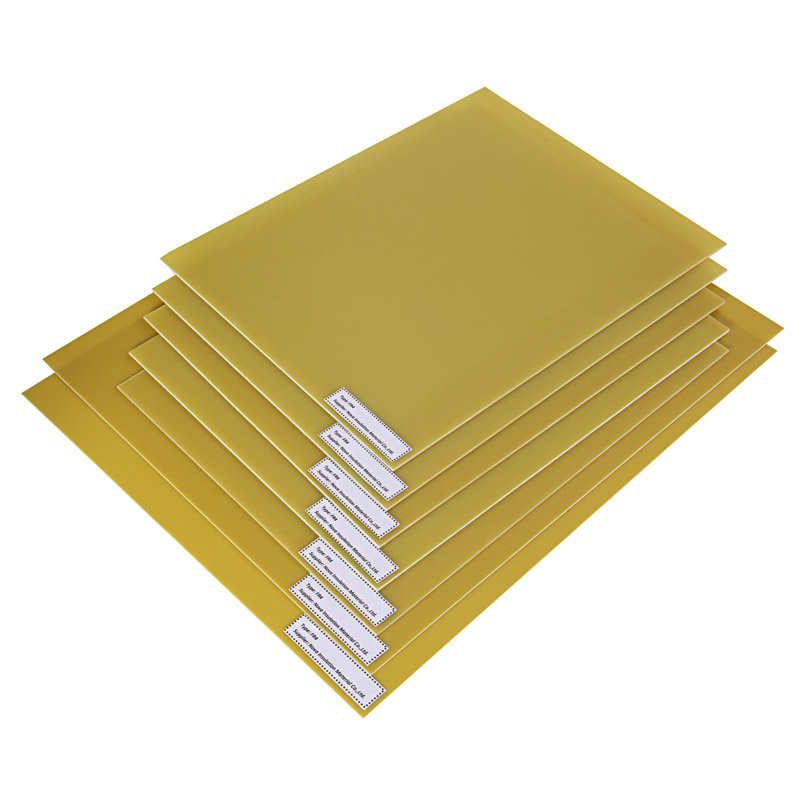

4) Sheet size: 1020*1220mm; 1020*2040mm; 1220*2440mm
5) Min. Order Quantity: 500 kgs in a lot

Packaging & Shipping
Pallet,wooden boxes or according to customer requirements
Shipment By Express Such as Fedex,DHL,TNT and etc,Would take 3-5 days
Shipment By Air would take 5-7 Days
Shipment By Ocean(Sea) would take 18-30 Days

About Us:
Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Epoxy glass fabric laminated products with over 10 years experience, including G10/FR4, G11/FR5 and so on.

We can serve you not only customize the Epoxy Glass Fabric Laminated Sheet G11 (F Class) products for you, but also very experienced design concept, strong program management system, well trained employees for Epoxy Glass Fabric making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.
We sincerely hope to be your long-term partner to develop new markets together,and create brilliant!

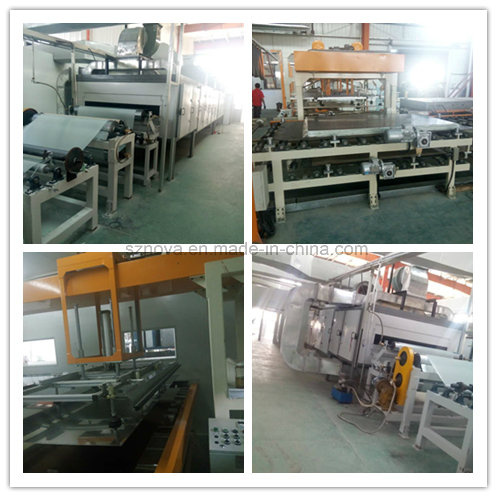

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
