| Prod Model: |
GL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery Case: |
ABS |
| Terminal: |
Cooper/Lead |
| OEM/ODM: |
Workable |
| Recycle: |
Yes |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Flat Battery |
| Rechargeable: |
Chargeable |
Product Description

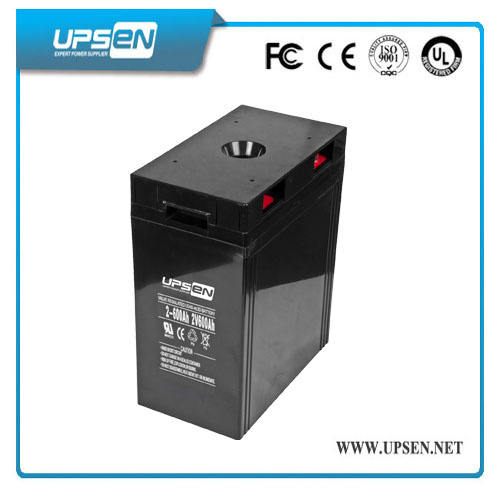

Free maintance solar deep cycle gel battery for solar system
Gel Battery Key Features
1:Long cycle life
2:Safety valve installation for explosion proof
3:Maintenance-free, convenient for installation
4:Low self-discharge and powerful recover ability
5:Solving the acid layering which normal battery cannot
6:No memory effect after repetitious usage or discharges
7:inner battery formation, top quality inner circuit board
8:comply with environmental requirements, ease of use
9:Rechargeable highly efficient, leak proof and maintenance free
10:Strong ABS container, Reliable venting system, Safety approved by American UL
11:quality check with auto machine,can test inner problem , to ensure all goods quality
12:Tight assembly technology ensures an excellent high-rate discharge performance
Gel Battery Applications
Telecommunication equipment,Telephone switchboard,medical equipments, instruments,Electric equipment,Office,Printers Aeronaoutics,Astronautics,Electronic,Light equipment,Telecom,Army Technology,Securities System,Sensitive Electronic Equipment etc.
Technical Specification
Model | Nominal | Capacity | External Dimension | Weight | Terminal |
| Voltage | (Ah) | Length | Width | Height | Total Height | Approx | Type |
| (V) | 10Hr(20hr) | mm | inch | mm | inch | mm | inch | mm | inch | kg | pound |
|
| GL12310 | 12 | 31 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.69 | 11 | 24.31 | T64/T16 |
| GL12400 | 12 | 40 | 196 | 7.73 | 166 | 6.54 | 171 | 6.73 | 171 | 6.73 | 14 | 30.94 | T9/T16 |
| GL12500 | 12 | 50 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 232 | 9.13 | 17.5 | 38.55 | T9/T16 |
| GL12650 | 12 | 65 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | 23 | 50.8 | T9/T16 |
| GL12700 | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.01 | 24 | 53 | T33B/T16 |
| GL12800 | 12 | 80 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.02 | 26 | 57.4 | T33B/T16 |
| GL12850 | 12 | 85 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.21 | 29 | 64.1 | T10B/T16 |
| GL12950 | 12 | 95 | 394 | 15.51 | 109 | 4.29 | 285 | 11.22 | 285 | 11.2 | 34 | 74.96 | T46 |
| GL12950(II) | 12 | 95 | 508 | 20 | 110 | 4.33 | 224 | 8.82 | 239 | 9.41 | 33 | 72.75 | T46 |
| GL121000 | 12 | 100 | 331 | 13 | 173 | 6.81 | 213 | 8.39 | 235 | 9.25 | 32 | 71 | T10T16 |
| GL121000(II) | 12 | 100 | 330 | 12.99 | 173 | 6.81 | 214 | 8.43 | 219 | 8.62 | 32 | 70.4 | T16 |
| GL121200 | 12 | 120 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | 39.5 | 87.3 | T11D/T16 |
| GL121340 | 12 | 134 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 283 | 11.1 | 42.5 | 93.7 | T19 |
| GL121350 | 12 | 135 | 484 | 19.06 | 177 | 6.97 | 241 | 9.49 | 241 | 9.49 | 46 | 101.4 | T12/T50 |
| GL121500 | 12 | 150 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | 49 | 108 | T12/T50 |
| GL121500(II) | 12 | 150 | 551 | 21.69 | 109 | 4.29 | 228 | 8.98 | 228 | 8.98 | 51 | 112.4 | T46 |
| GL121550 | 12 | 155 | 547 | 21.54 | 125 | 4.92 | 317 | 12.48 | 317 | 12.5 | 56 | 123.5 | T46 |
| GL121600 | 12 | 160 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.33 | 53 | 117 | T11/T60 |
| GL121800 | 12 | 180 | 530 | 20.8 | 209 | 8.23 | 216 | 8.5 | 237 | 9.33 | 57 | 126 | T11/T60 |
| GL122000 | 12 | 200 | 522 | 20.6 | 240 | 9.45 | 220 | 8.66 | 244 | 9.6 | 67 | 148 | T11/T19 |
| GL122300 | 12 | 230 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 240 | 9.44 | 76 | 168 | T12/T19 |
| GL122500 | 12 | 250 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 241 | 9.29 | 79 | 175 | T12/T19 |
| GL61800 | 6 | 180 | 260 | 10.2 | 180 | 7.09 | 246 | 9.69 | 251 | 9.89 | 30 | 66.1 | T19 |
| GL62000 | 6 | 200 | 323 | 12.7 | 178 | 7.01 | 224 | 8.81 | 248 | 9.77 | 31 | 38.3 | T19 |
| GL62200 | 6 | 220 | 243 | 9.57 | 188 | 7.41 | 275 | 10.83 | 275 | 10.8 | 34.5 | 75.9 | T19 |
| GL2500 | 2 | 50 | 160 | 6.3 | 50 | 1.97 | 166 | 6.54 | 176 | 6.93 | 3.2 | 7.1 | T16 |
| GL21000 | 2 | 100 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 227 | 8.94 | 6.4 | 14.11 | T16 |
| GL21500 | 2 | 150 | 172 | 6.8 | 102 | 4.02 | 206 | 8.11 | 227 | 8.92 | 9 | 19.8 | T94 |
| GL22000 | 2 | 200 | 172 | 6.8 | 111 | 4.37 | 329 | 12.96 | 365 | 14.4 | 14 | 30.9 | T20 |
| GL23000 | 2 | 300 | 171 | 6.7 | 151 | 5.94 | 330 | 13 | 365 | 14.4 | 20.5 | 45.2 | T20 |
| GL24000 | 2 | 400 | 211 | 8.3 | 176 | 6.93 | 330 | 13 | 366 | 14.4 | 27.5 | 60.6 | T20 |
| GL25000 | 2 | 500 | 242 | 9.5 | 172 | 6.8 | 331 | 13 | 356 | 14 | 33.5 | 73.9 | T20 |
| GL26000 | 2 | 600 | 301 | 11.9 | 175 | 6.89 | 331 | 13 | 356 | 14 | 41 | 90.4 | T20 |
| GL28000 | 2 | 800 | 411 | 16.1 | 175 | 6.89 | 330 | 13 | 356 | 14 | 55 | 121.3 | T20 |
| GL210000 | 2 | 1000 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14 | 66.5 | 146.6 | T20 |
| GL215000 | 2 | 1500 | 401 | 15.8 | 351 | 13.8 | 344 | 13.5 | 369 | 14.5 | 103.5 | 228.2 | T20 |
| GL220000 | 2 | 2000 | 491 | 19.3 | 351 | 13.8 | 344 | 13.5 | 369 | 14.5 | 136 | 299.8 | T20 |
| GL230000 | 2 | 3000 | 712 | 28 | 353 | 13.9 | 343 | 13.5 | 369 | 14.5 | 203.5 | 448.6 | T20 |
| *Specification are subject to change without prior notice |
Competitive Advantages:
1: Good after-sales service, we will be full responsible for any faults caused by our side
2: Professional experience in power field more than 10 years
3: Professional technical support before and after sales
4: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
5: Free OEM & ODM Service
6: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
