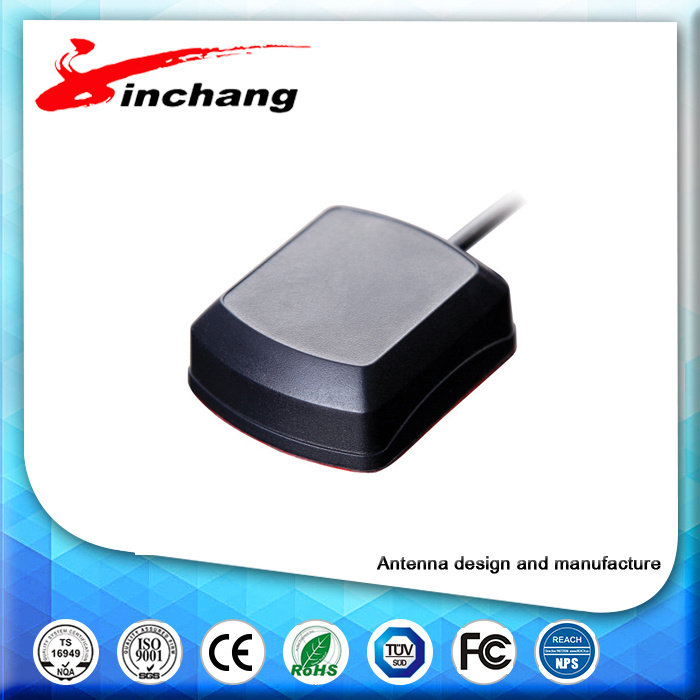

| Prod Model: |
JCA001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
48X39X14mm |
| Cable: |
Rg174 3m/5m or Others |
| Connector: |
SMB SMA Fakra MCX |
| Plastic Housing: |
Black |

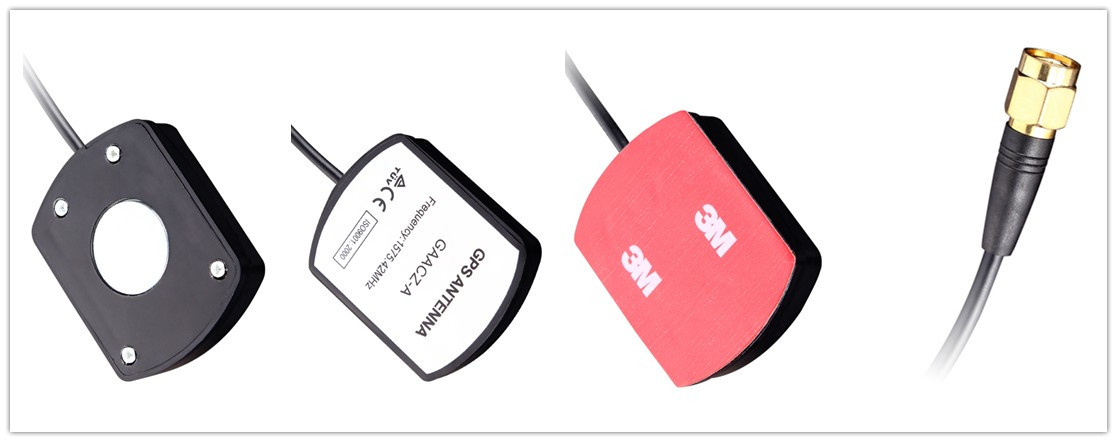

| Mounting: |
Magnet/Adhesive |
| Frequency: |
1575.42MHz/1602MHz /1561MHz |
| Usage: |
Navigation, Fleet Management, Tracking |
| Operating Wavelength: |
Microwave |
| Directionality: |
Directional Antenna |
| VSWR: |
1.5 |
| Material: |
ABS |
Product Description
Application
• Military
• Car navigation
• AVL/Fleet Management
• Vehicle tracking
• Weather balloon
• Security surveillance
• External antenna for handheld
• Avionics GPS antenna
• External antenna for battery operated handheld receivers
• Router and so on
Partners
Electrical CharacteristicsCenter frequency: 1575.42+3 or -3MHz
VSWR: 1.5: 1
Bandwidth: +5 and -5MHz
Impedance: 50 Ohms
Polarization: RHCP
LNA gain (without cable): 28+2 or -2dB (typical)
Noise figure: 1.5dB
DC voltage: 2.2 to 5V
DC current: 5~15 mA (maximum)

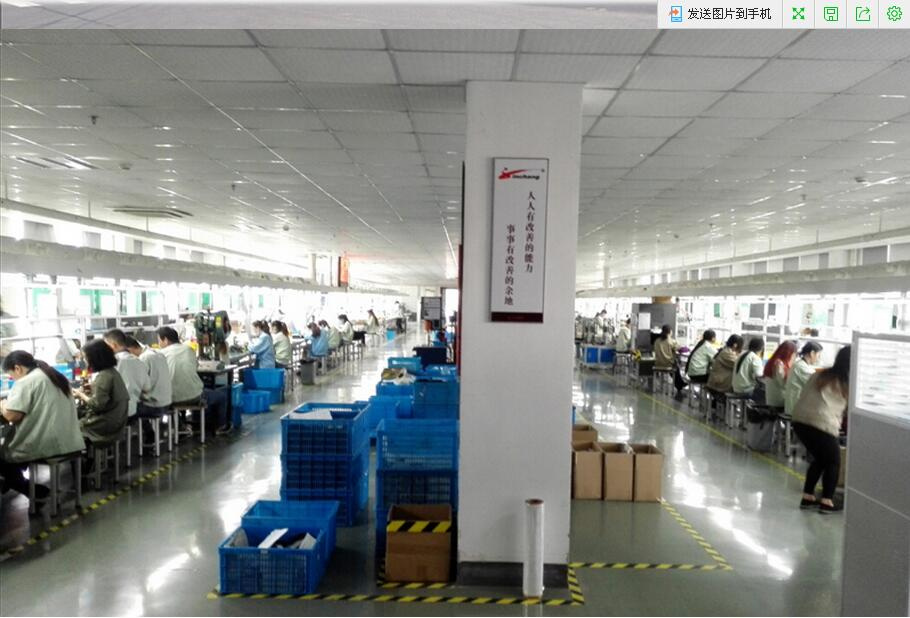

Jiashan Jinchang Electronics Co., Ltd. is a national high-tech enterprise, specialized in high-frequency GPS/GLONASS/GSM/WIFI antenna manufacturing, engaged in antenna industry for 28 years. The products including GPS/GLONASS antenna, 2G/3G/4G GSM antenna, WIFI/Bluetooth antenna, GPS active antenna, GPS Car antenna, won National Award for New Product, Technology Innovation Fund and National New Product Award. Currently Jinchang have 13 patents, passed TS16949, ISO9001 certification. The antennas have CE and FCC certification, comply with ROHS through SGS test. Jinchang have HP network tester, noise-figure meters, high-frequency signal generator, anechoic chamber, as well as other antenna testing equipment and facilities. Eight production lines can produce all kinds of antenna 30000pcs per day. 70% products exported to Europe and America. Nissan, Nokia, Motorola, Coca-Cola, Volkswagen, Audi, Datang, SEG and other enterprises have bulk used Jinchang's products.
Our Advantages:
1.As a national key technological innovation and R&D center and a post- doctoral research station, the company obtains more than three million dollars national research grants annually.
2.There are 80 technical engineers, including 5 expert-level engineers and 20 chief technicians. Each year, more than 10 patented models are promoted to market.
3. Sticking to the principle of "customer first", our salesmen and technicians provide you professional services any time.

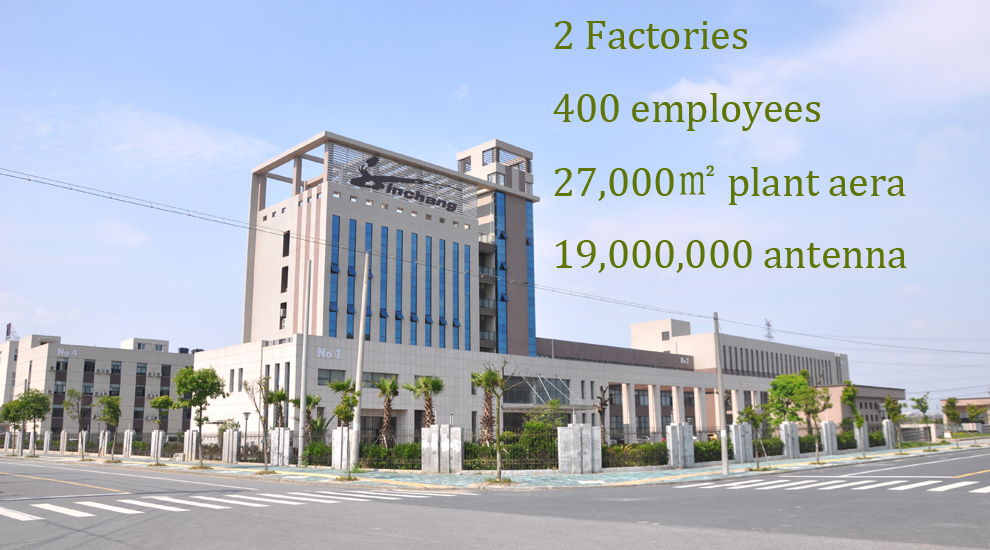

Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.
Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.
Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.
Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.
Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.
Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.
