Free Sample High Quality Antenna for GPS

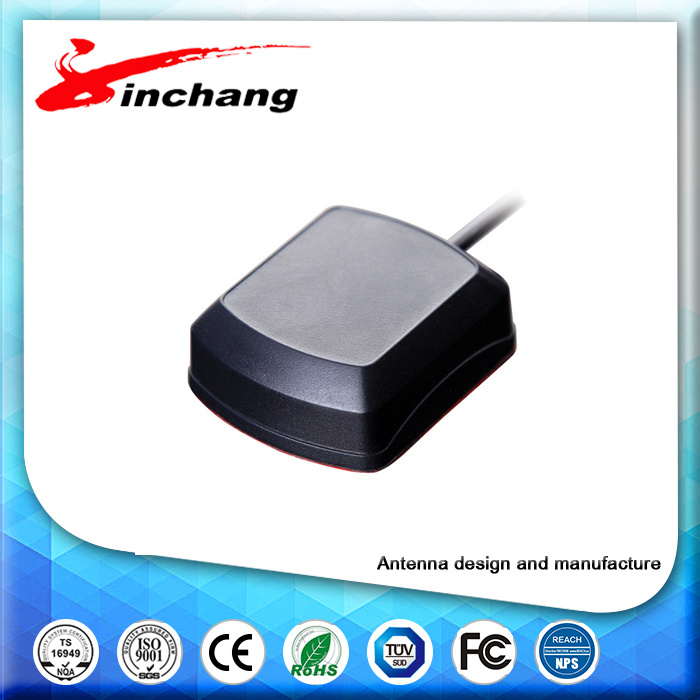

Name: Free Sample High Quality Antenna for GPS
Brand: all-electronics-online.com
SKU: 712368695
Availability: InStock
Rating: 4.8 (27 reviews)

Price:	US $ 3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	L/C,T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JCA002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	43x33x14mm
Band Width(MHz):	5 MHz
V.S.W.R(in Bw):	1.5:1
Gain(Zenith):	28 dB
Polarization:	Rhcp
Impedance:	50
Usage:	Car Antenna
Directionality:	Directional Antenna
VSWR:	<1.5

Product Description

Key Specifications/Special Features:

Size: 43x33x14mm

Center frequency: 1575.42+3 or -3MHz

VSWR: 1.5: 1

Bandwidth: +5 and -5MHz

Impedance: 50 Ohms

Polarization: RHCP

LNA gain (without cable): 28+2 or -2dB (typical)

Noise figure: 1.5dB

DC voltage: 2.2 to 5V

DC current: 5~15 mA (maximum)

no	Item	Specifications	Post Environmental Tolerance
1	LNA Gain	28±2 dB	±2.5 dB
2	Noise Figure	1.5 dB	±1 MHz
3	Filter Out Band Attenuation	12dB Min f0+50MHz 16dB Min f0-50MHz
4	DC Voltage	2.2~5 V
5	DC Current	5~15 mA

Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.

Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.

Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.
