| Prod Model: |
3-FM-4 |
| Material: |
High Pure Lead |
| Certificate: |
UL/Ce/RoHS/ISO9001/ISO14001/IEC60896/IEC61427 |
| Size: |
70X48X100/105mm |
| Weight: |
0.68kg |
| Maintenance: |
Free |
| Color: |
Grey / Black |
| Terminal: |
Copper or Lead Material |
| Warranty: |
3 Years |
| Expected Cycle Life: |
10 Years |
| Sealed: |
Yes |
| Usage: |
Solar System, Telecom |
| Nominal Voltage: |
6V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Type: |
AGM Lead Acid Battery |
Product Description

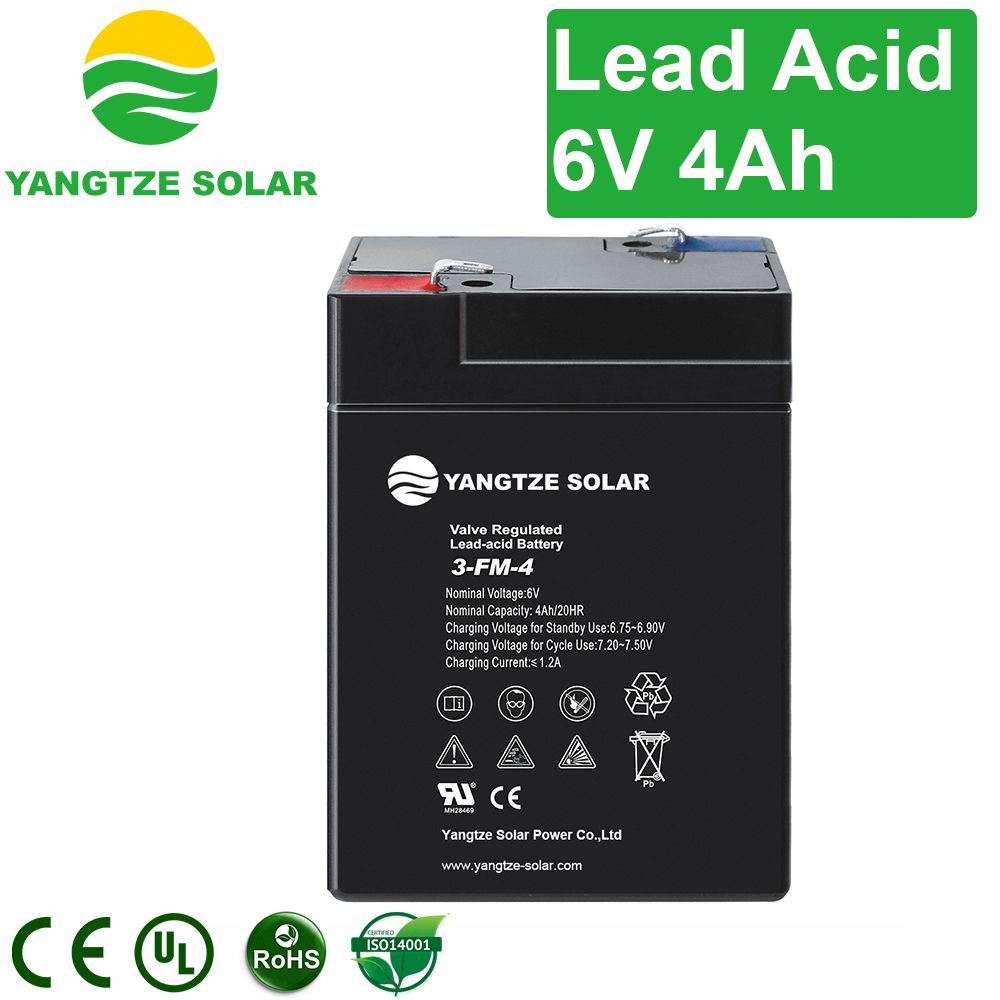

***** Free shipping 6v4.0ah sealed rechargeable lead acid battery *****
Key Features :
♦Maintenance-Free ,Absorbent Glass Mat Technology
♦Low Self Discharge
♦Long Designed service Life ,Deep Cycles
♦Excellent Discharge Performance
♦Environment Friendliness
♦Wide suitability of ambient temperature range
Applications :
♦Solar and wind energy storage system
♦EPS and UPS battery backup
♦Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power source for portable devices or tools
| 1. Functional Parameter | 5. Environment Temperature |
| Nominal Voltage | 6V | Discharge Temperature | -15~50ºC |
| Nominal Capacity (20 hour rate) | 4Ah | Charge Temperature | 0~40ºC |
| Number of Cells | 3cells | Storage Temperature | -15~40ºC |
| 2. Rated Capacity at 25ºC (77° F) | 6. Inner Resistance & Max . Discharge Current |
| 20 hour rate (0.05C, 10.8V) | 4Ah | Fully Charged battery at 25ºC (77° F) | 21mΩ |
| 5 hour rate (0.165C, 10.8V) | 2.8Ah | Max. Discharge Current | 150A (5s) |
| 1 hour rate (0.55C, 10.5V) | 1.9Ah | Short Circuit Current | 500A |
| 3. Capacity affected by Temperature (20 hour rate) | 7. Self-discharge at 25ºC (77° F) |
| 40ºC (104° F) | 103% | Capacity after 3 month storage | 91% |
| 25ºC (77° F) | 100% | Capacity after 6 month storage | 82% |
| 0ºC (32° F) | 85% | Capacity after 9 month storage | 73% |
| -15ºC (5° F) | 65% | Capacity after 12 month storage | 64% |
| 4. Dimension and Weight | 8. Constant voltage charging at 25ºC (77° F) |
| Length | 70mm | Cyclic use | 14.4~14.9V |
| Width | 48mm | Maximum charging current | 3A |
| Height | 100mm | Temperature compensation | -30mV/ºC |
| Total Height | 105mm | Float use | 13.6~13.8V |
| Reference Weight | 0.68kg | Temperature compensation | -20mV/ºC |
***** Factory Introduction *****
♦ Founded in 1994 , 300MW solar panel production capacity ,solar panel power range 3watt to 360watt for both polycrystalline and monocrystalline solar panel
♦ 10 years total workmanship and materials warranty , 10 years for at least 90% and 25 years for 80% linear power output warranty
♦ 100% EL test before package and shipping
♦ Two factories , solar panel factory , battery factory
♦ Cooperated with world famous big companies like Trina Solar , Suntech Solar , Yingli Solar , HUAWEI
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) , UL(America) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
***** FAQ *****
♦ What's your payment terms ?
T/T, Letter of Credit, Western Union, Paypal, etc .
♦ What's your minimum order quantity ?
1 Unit
♦ Could you send free samples ?
Your samples fee will be returned when you place bulk order
♦ What's your delivery lead time ?
5-15 days, it is up to your order quantity and your stock. If in stocks, once you make the payment ,
your products will be sent whithin 2 days
♦ What;s your price list and discount ?
The Above price is our wholesale price, if you'd like to know more our discount policy, please free free to contact us mobile phone +86 173 3300 5102
6. Can we print our own logo ?
Yes
Yangtze Solar, founded in 1994, have supplied more than 1.5GW photovoltaic solar panels and 10 million units of batteries, solar charger controllers and solar inverters. Yangtze Solar is focusing on product development, production, system integration, sales and service. Products include Poly-crystalline PV panel, Mono-crystalline PV panel, Valve Regulated Lead Acid ( VRLA) Battery, Solar Charge Controller, Solar Inverter, Turn-key completed Off Grid and On Grid solar systems. We aim to develop, manufacture, and deliver the most reliable and cost-effective solar energy solutions to every corner in the world...
Our Solar PV module factory covers 90, 000 Square Meters, has more than 750 employees. With an emphasis on management, research and development, Yangtze Solar continuously manufactures leading-edge products. The modules range from 5W~330W and are approved by TUV, UL, CE, IEC61215, IEC61730, CSA, CEC, JET. The production capacity of solar panel has reached 320MW in 2016.
Our Battery factory covers 80, 000 Square Meters, has more than 700 employees. The batteries made by Yangtze Solar include 2V&12V VRLA AGM type, VRLA GEL type, Tubular Plate OPzS and OPzV type which can be applied in Solar Power Plant Storage, Wind Energy Storage, Telecommunications, UPS, Fire Alarm System, Emergency Lighting, etc. The production capacity of battery has reached 1 million units in 2016
The company follows ISO9001 quality system strictly. Up to date, Yangtze Solar has largely realized production line automation with imported advanced equipment and technology from Germany, USA and Japan. We keep strict controls on incoming inspection, production process, finished goods inspection. All products are certified by TUV IEC(Germany), UL(America), JET(Japan), CSA( Canada), CEC( Australia ) and CE. With excellent quality and good reputation, Yangtze Solar Panel and battery have been exported to more 120 different countries in the worldwide, especially to America, Germany, UK, Japan.
Yangtze Solar will continue to innovate and improve its renewable energy product portfolio, to help the world create a cleaner and brighter future.
