| Prod Model: |
tk 103a Rastreador |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Vehicle GPS Tracker |
| Weight: |
120g |
| Sos Button: |
Yes |
| Monitoring Function: |
Yes |
| Fuel Sensor: |
Optional |
| Tracking By: |
SMS , Mobile Phone , Web Platform |
| Software: |
Free |
| Tracking Map: |
Real Time Google Maps |
| Tracking Way: |
SMS , Phone APP , Web Platform |
| Warranty Time: |
1 Year |
| Type: |
GPS Tracker |
| Use: |
Tracking |
| Model: |
103A |
| Screen Size: |
No Screen |
| Brand: |
Coban or OEM |
Product Description

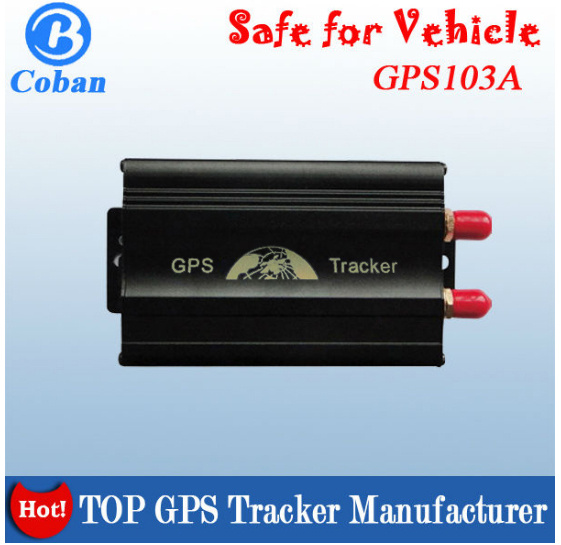

free software tracking system COBAN engine immobilizer gps tracker TK103A, tracker gps for car anti theft tracking
Product Description
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Main Function Description
*Single Locating
•Auto track continuously
•Track with limited times upon time interval
•Track with unlimited times upon time interval
•Smart track upon time and distance interval
•Automatic update positions of vehicle turns
•GPS drift suppression
•Absolute street address by SMS
•Location based service (LBS)
•Monitor(voice surveillance)
•Data logging
•Data Load
•Forward the third parties' message
•Charges Inquiry
•Low battery alarm
•Power off alarm
•GPS blind Spot alert
•SOS
•Geo-fence
•Multi-area management
•Movement alarm
•Over speed alarm
•Accident alarm (Option)
•ACC working alarm
•Fuel alarm;Fuel level measurement
•Cut off the Oil and Power System remotely
•Arm
•Disarm
•Alarms under Arm State
•Door alarm
•3-aixs accelaration sensor
•ACC alarm
•Silent Mode
•Alarm without GSM network service
•Check the Vehicle State
•Reset Hardware
•Sleep Mode
•Terminal (local) Time Setting
•TCP/UDP switch
•Configure parameters by USB
•GPRS Setting
•Less GPRS traffic
•Modes Switch between SMS and GPRS
•Set up monitor center number
Specification:
Content | specifications |
DIM. | 83*54*26mm |
Weight | 120g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS Sensitivity | -159dBm |
GPS Accuracy | 5m |
GPS Start time | Cold status 45s Warm status 35s Hot status 1s |
Voltage of car power system | 12 V -24V |
Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +65°C |
Humidity | 5%--95% non-condensing |
Multiple Tracking Ways:
*Calling the gps tracker via your mobile phone,it will reply a SMS including longitude and latitude and a google map link,open this link,you can see the location on the google map.
*Real track by our own developing ios app and andriod app.
*Web based online tracking system our server www.gpstrackerxy.com.
