Free Tracking Platform Fuel Sensor RFID Vehicle GPS Tracker
Price: |
US $ 60-70/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
VT900 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Function: |
Car Security |
Anti-Theft: |
Anti-Hijack |
Voice Monitoring: |
Yes |
Live Tracking: |
Yes |
Sos Button: |
Yes |
Fuel Monitoring: |
Yes |
Free Tracking Platform: |
Yes |
Camera: |
Yes |
Two Way Communication: |
Yes |
Is Customized: |
Yes |
Product Description
Free tracking platform Fuel Sensor RFID vehicle GPS tracker (2 years warranty *Free tracking platform *Technical support and after-sale services lifelong )Product Description

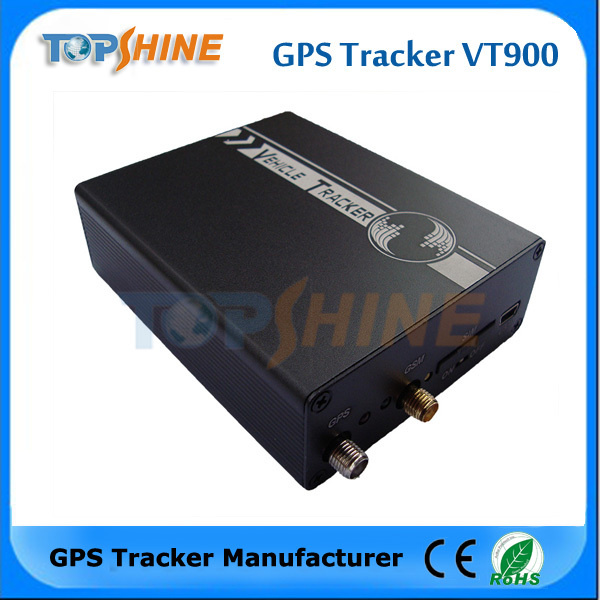

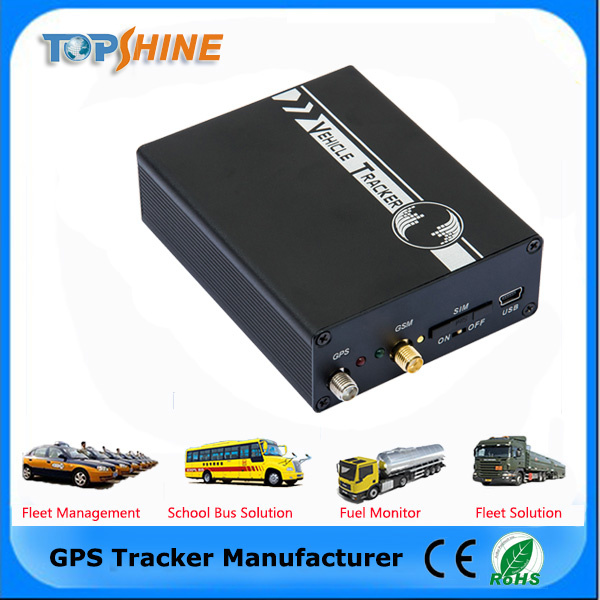

VT900 is an advanced GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GSM modules, VT900 has good sensitivity and stable performance. Especially, VT900 is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customer or manage their fleet. It is a fully function tracker that supports camera and voice prompt/broadcasting functions and has strong expansibility and customization ability.
Application
Vehicle Real Time Tracking
Car Security/Anti-Hijack
Fleet managemnent
Specification Items | Specifications | |
Dimension | 105*75*30mm | |
Weight | 180g | |
Input voltage | DC 9V~36V/1.5A | |
Back-up Battery | 950mAh/3.7V | |
Power Consumption | 65mA standby current | |
Operating Temperature | -20°C~75°C | |
Humidity | 5%~95% | |
Work Time | 43 hours in power-saving mode and 10 hours in normal mode | |
LED | 2 LED lights to show GPS, GSM status | |
Button | 1 SOS and 1 power on/off | |
Microphone | Default | |
Speaker | Optional | |
Camera | Optional | |
Memory | 4MByte | |
Sensor | Motion sensor | |
GSM Frequency | GSM 850/900/1800/1900MHz | |
GPS Chip | Latest GPS SIRF-Star III Chipset | |
GPS Sensitivity | -159dB | |
Positioning Accuracy | 10meters, 2D RMS |
I/O | 5 Input 5 Output 1 Camera Port 2 Analog Input 1 RS232 Port 1 MIC & Speaker Port |
Functions
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* OTA Function
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 950 mAh battery
* Remote Engine cut off to stop the car in safe condition
* ARM9 high speed microcontroller
* Wiretapping/remote listening
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Door open/close status detecting
* Door open/close control
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* I/O: 5 Inputs, 5 Outputs, 2 Analog Inputs.
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Harsh braking and harsh acceleration alarm
* Suddenly acceleration/brake alert
* Accident Alarm (optional)
* Two way communication (Listen & Speak, need speaker support) (optional)
* Oil leaking/Refuel Alarm (need fuel sensor support) (optional)
* Accident alarm (need crash sensor support) (optional)
* Photo with location & driving information log function (need camera support) (optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, support max 2 fuel sensor manage (optional)

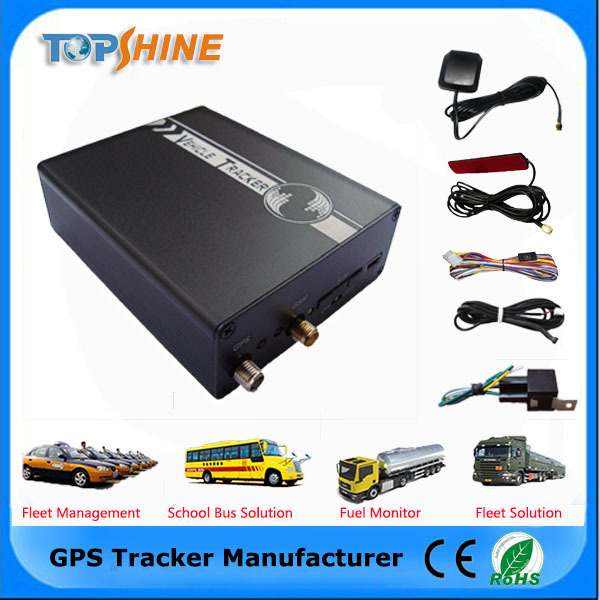

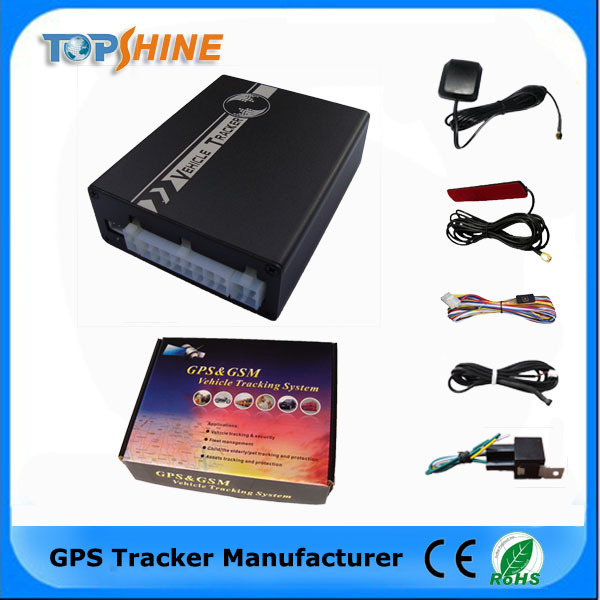

Packaging & Standard Accessories
1.Main unit
2.GSM antenna
3.GPS antenna
4.SOS button
5.Microphone
6.Relay(12V/24V)
7.Wiring
Optional Accessories
Camera
Fuel sensor
Temperature sensor
Passive RFID kit
SD card
Crash sensor
Smart phone reader
OBDII
Door sensor
Alcohol Sensor
Speed Limiter

Welcome to test our free tracking software:
Tracking platform site: www.track-car.com
Username: hongkong
Password: 123
Tracking platform site: www.tstrack.net
Username: test1
Password: 123
What can we do for you:
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
