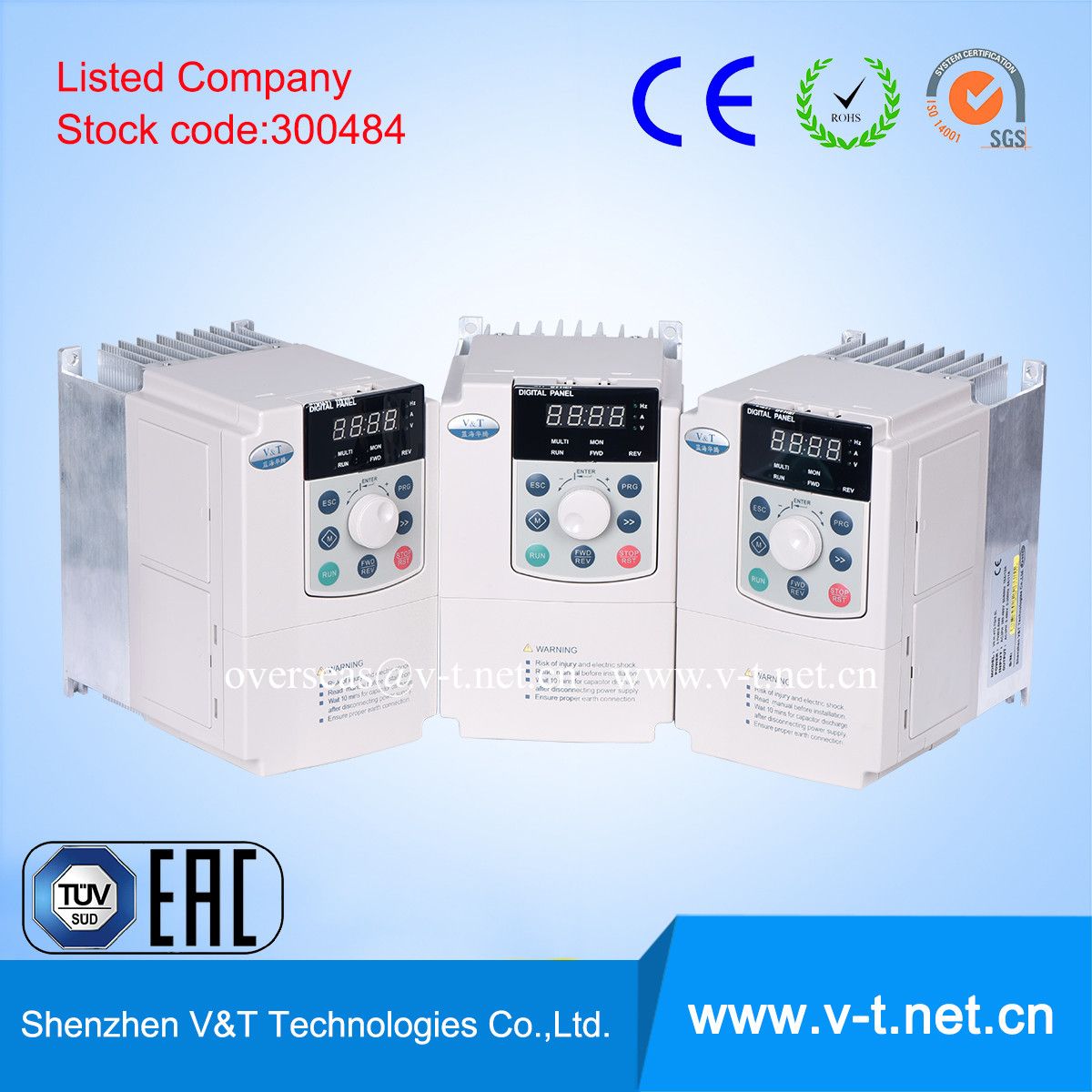

Frequency Inverter for Dual-Inverter Wire Drawing Machine (V5-E)

Name: Frequency Inverter for Dual-Inverter Wire Drawing Machine (V5-E)
Brand: all-electronics-online.com
SKU: 823800375
Availability: InStock
Rating: 4.3 (101 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	V&T V5-E
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage and Current
Brand:	V&T

Product Description

V5-H Series high performance vector control inverter
For over two decades, various industry sectors have been reaping the benefits of V&T's cost-effective, performance-oriented AC Drive solutions. V&T's grasp of specific needs of each industry enables it to offer application-specific solutions for various industries-such as processing ,textile, plastic, ceramic ,pharmaceutical, elevator, oil& gas, power, cement and material-handling.
Main Features
1. Range:0.4 kW to 450kW
2. V/F Sensorless Vector Control, Slip Compensation
3. Staring Torque at 180% at 0.25 Hz for Sensorless Control
4. Component Life Monitor
5. Peer to Peer Communication to share I/Os
6. Built-in PLC logic
7. Multi Keypad
8. Stores last 5 faults
9. Built-in RS485 Modbus RTU Communication
About the Product
V5-H series vector control inverter adds a new dimension to V&T's AC drive solutions. Built to V&T's stringent quality standards, the V5-H is tested and certified to meet global benchmarks, giving you the assurance of total reliability. The V5-H is built to deliver powerful performance. It produces a starting torque of 180% at 0.5Hz, which provides better control at low-speed. Its compact size enables panel-size reduction, hence helps in space-efficient design.
Applications
1. Energy-saving central air conditioning;
2. Plastic &Textile Machinery;
3. Energy-saving air compressor;
4. Printing;
5. Fan & Pump / HVAC/AHU/Blowers machine /ID/FD Fan
6. Crane Control;
7. Food & Packaging Industry;
8. AHU Control.

With complete applications for water supply, with high efficiency, pressure stable, reliable, simple operation, easy installation, small footprint, low noise, no pollution, low investment, effective advantages. Widely used in:
1. Domestic water for buildings, urban areas, business units, public institutions.
2. Waterworks and modern irrigation.
3. The production, domestic water supply, constant pressure water supply, etc.
4. Musical Fountain of automatic water control.
5. Various types of central air-conditioning circulation pump, cooling water supply system.
6. High-rise buildings, hotels, restaurants and other domestic water supply system.
7. Market, office buildings, commercial buildings domestic water supply system.
8. High-rise buildings hot water supply and hot water heating system.
9. Various types of oil constant pressure supply, air constant pressure supply, fan constant pressure control system, etc.

VTDRIVE products range: Frequency inverter, soft starters, servo drives, servo motor PLC, HMI, Servo Motor & Drive system, Frekvensomformer, AC-Umrichter, frequentieregelaars, frekvensomriktare, Frequenzumrichter, AC drives, frequency converters, frequency changers, adjustable speed drives (ASD), adjustable frequency drives (AFD), variable frequency drives (VFD), variable speed drives (VSD), Frequency Invert(AC Drives), Soft Starters, Electrical AC Motor, Induction motor, Brake Units, EMI filter, AC Choke, Brake resistor, Breakers manufacturer in ChinaProducts application: Knitting Machine, compressor, extruding machine, injection machine, motor, braiding machine, pressure fan; Forced draught blower; Blower, blowing machine, blow molding machine, root's blower, film blowing machine, cutter bar, cut-off machine; Slitter, Cutting machine, conveyor, pump, grinder, cluster, glazing machine; Polisher; Polishing machine, laundry-drier, drying machine, ball crusher, ball grinding mill, drawing machine.

Power(KW)		0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75
Motor Power(KW)		0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	2.5	3.8	5.5	9	13	17	24	30	39	45	60	75	91	112	150
	Overload capacity	150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	Three-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness ≤ 3%; allowable frequency fluctuation: ± 5%
	Rate current(A)	3.5	6.2	9.2	14.9	21.5	27.9	39	50.3	60	69.3	86	104	124	150	201
Braking unit		Built-in as standard								External braking unit needed
Protection class		IP20
Cooling mode		Self-cooling		Forced air convection cooling

Power(KW)		90	110	132	160	200	220	280	315	355	400	...	...	...	...	...
Motor Power(KW)		90	110	132	160	200	220	280	315	355	400
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	176	210	253	304	377	415	520	585	650	740
	Overload capacity	150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	Three-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness ≤ 3%; allowable frequency fluctuation: ± 5%
	Rate current(A)	160*	196*	232*	282*	352*	385*	491*	552*	624*	704*
Braking unit		External braking unit needed
Protection class		IP20
Cooling mode		Forced air convection cooling

Power(KW)		90	110	132	160	200	220	280	315	355	400	...	...	...	...	...
Motor Power(KW)		90	110	132	160	200	220	280	315	355	400
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	176	210	253	304	377	415	520	585	650	740
	Overload capacity	150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	Three-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness ≤ 3%; allowable frequency fluctuation: ± 5%
	Rate current(A)	160*	196*	232*	282*	352*	385*	491*	552*	624*	704*
Braking unit		External braking unit needed
Protection class		IP20
Cooling mode		Forced air convection cooling

Shenzhen V&T Technologies Co., Ltd. Was certificated as a "National Hi-tech and Double-Software Enterprise", which has fully intellectual property rights and devotes to the R&D, manufacture, sales and technical service of Inverter, Servo Drive, Electric Vehicle Motor Controller, etc. V&T has won the "Technical Innovation" prize awarded by the Inverter Industry Association, "The Most Competitive Brands" prize awarded by China Electrical Association, "2012 Electric Vehicle Excellent Technology" prize respectively awarded by China Electro-technical Society (CES), the Specialized Committee of Electric Vehicles, the Automotive Engineering Society of China, and the Branch Association of Electric Vehicles. V&T has been ranked as one of the "Top 10 Chinese Inverter Enterprises". V&T successfully listed on the Stock Exchange of China in 2016 (stock code: 300484).

In regard to core and mainstream motor control technologies, Shenzhen V&T Technologies Co., Ltd. Has mastered both advanced "Vector Control "and "Torque Control" technology so far. Through continuous technological innovation, international technical exchange and cooperation with other countries, V&T has completely grasped the key control technique, also possesses the capacity of industrialization design and manufacturing. Company has developed and reserved many product series. The product voltage grade mainly contains 200V, 400V, 690V, 1140V, and the power grade varies from 0.4kW to 3000kW, which could meet various application demands for high, medium and low-end market.

Under the premise of meeting international standards and satisfying different industries' application requirements, we further strengthened the product reliability and environment adaptability to suit harsh and extreme environments. Customized product and industrialized design can better meet medium and high-end application demands. The products have been widely used in electric vehicles, metallurgy, crane, oil, chemicals, machine tools, metal processing, building materials, stone, wood processing, ceramics, plastics, air compressor, washing machine, water supply, air conditioning, municipal engineering, textile, printing, mining, solar pump and other industries.
