| Prod Model: |
S900GS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| VFD: |
Variable Frequency Drive |
| VSD: |
Variable Speed Drive |
| Color: |
Black |
| Voltage: |
220V/380V |
| Power: |
0.4kw-160kw |
| Phase: |
1/3 Phases |
| Apply: |
General Use |
| Vvvf: |
Variable Voltage Variable Frequency |
| V/F Control: |
Setting V/F Curve to Satisfy Various Load Requirem |
| Pid Control: |
Built-in Pid Control |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Function: |
General Used |
| Brand: |
Machtric |
Product Description

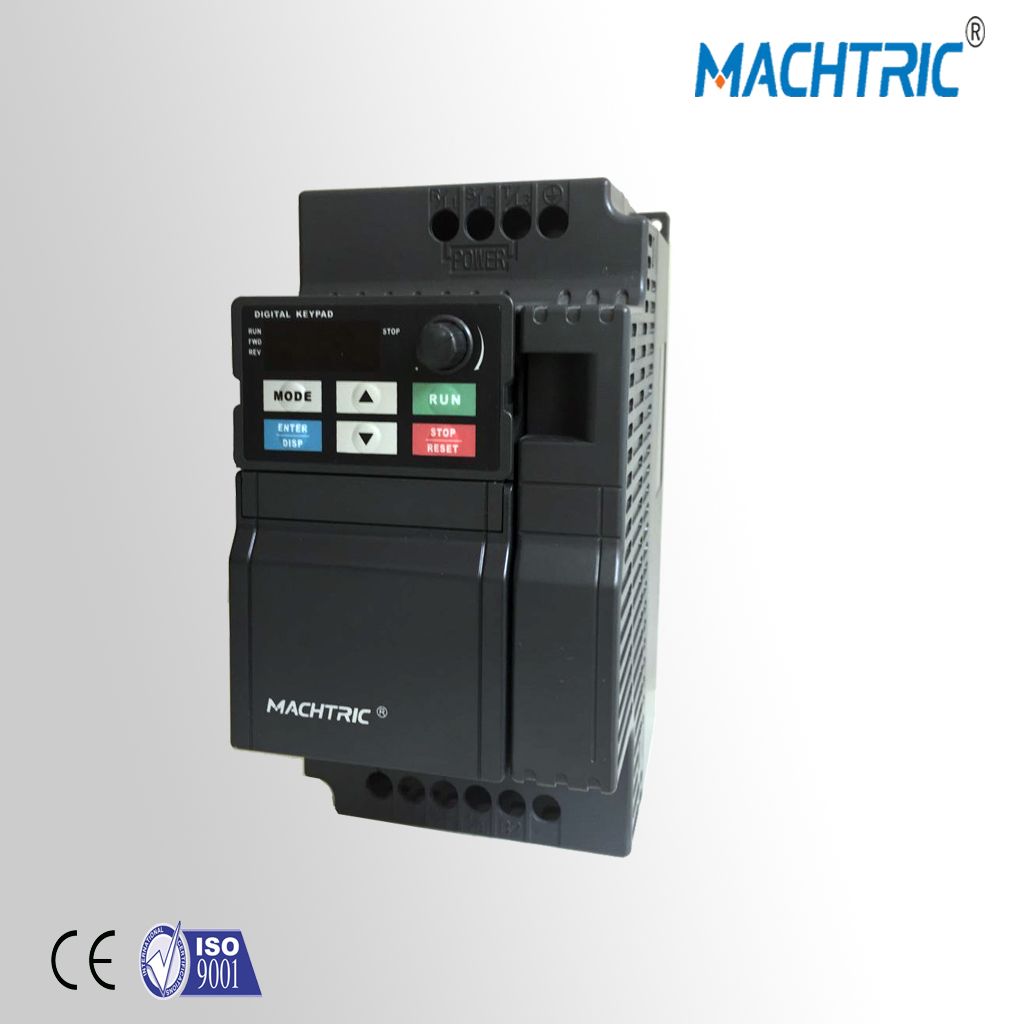

Frequency Inverter for Fan 37kw with Pid Function 60Hz
Input voltage: 220V single phase input/ Three phase input
Power range: 0.4kw-37kw
Compact size design, small
Appearance, easy to operate
| Items |
S900GS |
Power
Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz |
| Voltage Range | 220V:170V~240V 380V:330~440V |
| Output | Voltage Range | 220V:0~220V 380V:0~380V |
| Frequency Range | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
| Frequency Setting Resolution | Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
| Output Frequency Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional lnput
Terminal | Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal | 2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
| Acceleration/deceleration Time Setting | 0~-999.9s acceleration/deceleration time can be set individually |
| PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input:0 to 10V,,0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
| Multi-speed | Six multifunction input terminals, 15section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built -in 2group of counters |
| Protection/ Warning Function | Overload | 150%,60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max.95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
| Structure | Cooling Mode | Forced air cooling |
| Protective Structure | IP20 |
| Installation | Mode | Wall Mounted |
We are professional manufacturer supplying with industrial automation products. with the support of our R&D, system engineering and the advantage of the abundant international resources, we have solved many problems by our engineer for different application. We would like to be one of the most popular industry Automation Solution Suppliers. We try to provide wisdom, individual product solution.
Our products have been broadly applied in Textile, Packing, plastic, ceramic, Traffic, Building, Metallurgy, Chemical industry, Light industry, Military industry etc various industry equipment.
We keep on promoting efficiently the competition ability of the technique, quality, service and positive take part in the project of energy program and productivity promotion in industry field. We work hard in environment protection in return for society.
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
