| Prod Model: |
S900GS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Frequency: |
0~400Hz |
| Type: |
AC-Da-AC |
| Special Function: |
Pid Frequency Inverter |
| Color: |
Black |
| Output Type Including: |
Tripe |
| Input Power 220V: |
0.4-3.7kw |
| OEM: |
Accept OEM |
| Input Power 380V: |
0.75-22kw |
| Size: |
Standard Export Package |
| Output Phase: |
1/3 Phase |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
V/F Control Transducer |
| Main Circuit Type: |
Voltage |
| Output Type: |
1/3 Phase |
| Switch Mode: |
V/F Control |
| Function: |
Pid Function |
| Brand: |
Machtric |
Product Description
Welcome to Machtric Automation Equipment

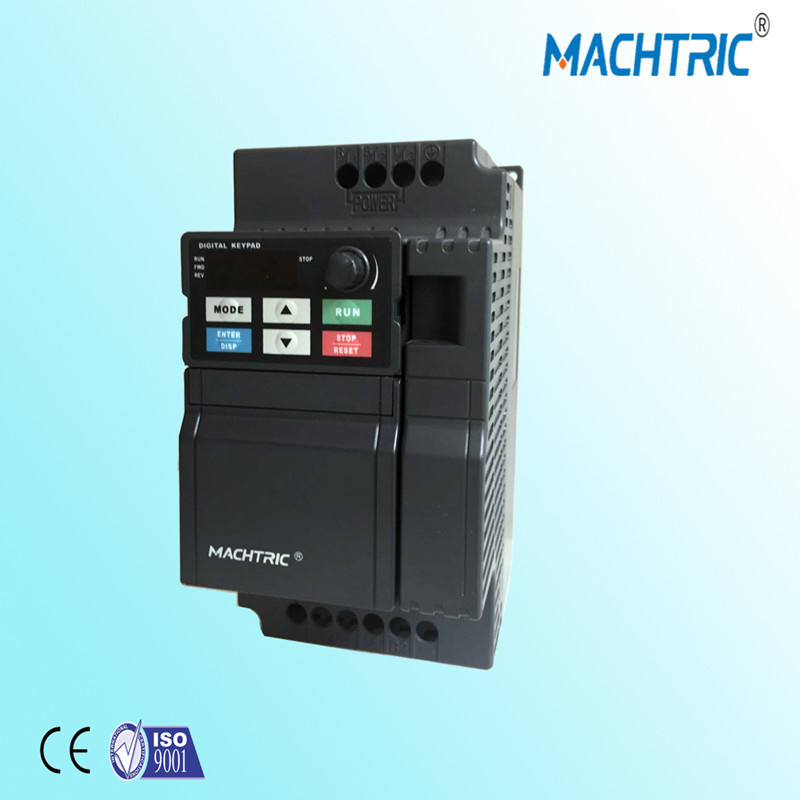

S900GS with PID function compact size made in China Frequency inverter
Specification
|
Items |
S900GS |
Power
Supply |
Rated voltage, Frequency |
Single phase/Three phase 220V 50/60Hz |
Voltage Range |
220V:170V~240V 380V:330~440V |
Output |
Voltage Range |
220V:0~220V 380V:0~380V |
Frequency Range |
0.10`400.00Hz |
Control method |
V/F control, Space vector control. |
Indication |
Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
Control Specifications |
Output Frequency Range |
0.10Hz~400.00Hz |
Frequency Setting Resolution |
Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
Output Frequency Accuracy |
0.01Hz |
V/F Control |
Setting V/F curve to satisfy various load requirements |
Torque Control |
Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional lnput
Terminal |
Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal |
2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
Acceleration/deceleration Time Setting |
0~-999.9s acceleration/deceleration time can be set individually |
|
PID Control |
Built-in PID control |
RS485 |
Standard RS485 communication function(MODBUS) |
Frequency Setting |
Analog input:0 to 10V,,0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
Multi-speed |
Six multifunction input terminals, 15section speed can be set |
Automatic voltage regulation |
Automatic voltage regulation function can be selected |
Counter |
Built -in 2group of counters |
Protection/
Warning Function |
Overload |
150%,60 second(Constant torque) |
Over Voltage |
Over voltage protection can be set |
Under Voltage |
Under voltage protection can be set |
Other Protections |
Overheat, short circuit, over current, and parameter lock and so on |
ronment |
Ambient Temperature |
-10ºC to 40ºC(non-freezing) |
Ambient Humidity |
Max.95%(non-condensing) |
Altitude |
Lower than 1000m |
Vibration |
Max. 0.5G |
Structure |
Cooling Mode |
Forced air cooling |
Protective Structure |
IP20 |
Installation |
Mode |
Wall Mounted |
After-sales Sercive:
1.On year guarantee for whole machine
2. 24 hours technical support by email
3. calling service
4. Have detail manual
FAQ
1. what's the payment term?
We accept T/T, L/C, D/P, WEST UNION, CASH
2. What's the delivery time ?
Usually it will take about two - three weeks for production .It depends on your quanlity .
3. What is the standard of package?
Export standard package or special package according to customer requirement
.
4. what kind of product quality your factory offer?
We offer most competitive prices with best quality
5. Do you accept OEM business?
We accept OEM with your autherization.
6.Which market do you already sell?
We already ship to Europ, Middle East, South America, Asia, Afria etc.
More information ,feel free to contact me 1
