| Prod Model: |
Empire Star Series 3000W / 5000W |
| OEM: |
Available |
| Phrase: |
One |
| Output Current: |
Load |
| Name: |
Hybrid Inverter |

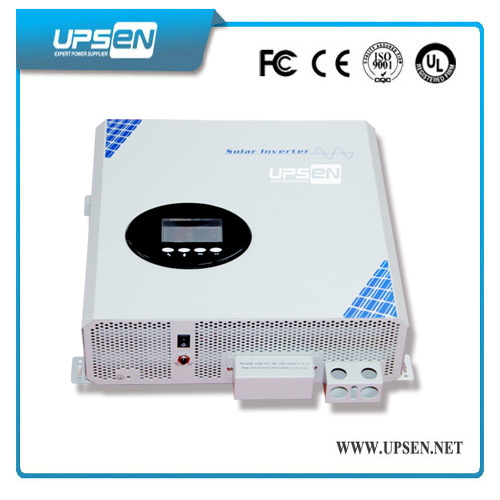

Product Description
Frequency pure sine wave PV inverter off grid solar inverter
Hybird Inverter Charger Empire Star Series 3000VA/5000VA (1ph in/1ph out)
Features:Features:
1:MPPT
2:SCC-for SCC model only
4:Three-stage battery charge protection
3:Charger for battery when SCC is available
5:Wide working temperature range
6:Environmentally friendly: No noise, no fume, no fuel required
Charger
1)(On/Off controlled by CPU)
2)Three stage charger / ABM
3)Protection against over voltage
4)Cooling fan,controlled by temp. automatically, protect the equipments from overheating
Topology
1>Pure sine wave output with high efficiency and stability
2>Wide working temperature range
3>Easy installation and free maintenance
4>Multiple safe protections
5>High conversion efficiency, smart soft start function.
| ES Solar Inverter |
| Model No. | ES3000 | ES3000S | ES5000 | ES5000S |
| CAPACITY | 2.4KW/3000VA | 4.2KW/5000VA |
| INPUT |
Input Voltage
Waveform | Pure Sine Wave (utility or generator ) |
Nominal Input
Voltage | 230Vac |
Input Voltage
Range | 170Vac~280Vac(Normal);
90Vac-280Vac(Generator / Wide) | 170Vac~280Vac(Normal);
125Vac-280Vac(Generator / Wide) |
Max AC
Input Voltage | 300Vac RMS |
Nominal Input
Frequency | 50Hz / 60Hz(Auto detection) |
| OUTPUT |
| Wave form | Pure sine wave (Inverter mode) |
Voltage Regulation
(Inverter Mode) | ±10% RMS |
| Output Frequency | 50Hz / 60Hz ±1Hz |
| Nominal Efficiency | 90%(@Inverter mode with normal DC Input;>60% R load);
95%(@Inverter mode with Rated R load,battery full charger); |
Capable of starting
electric motor | 1.5H | 2.5H |
| Power Factor | 0.8 | 0.84 |
Over-Load
Protection | Tripped off after 5s ≥150% load
Tripped off after 10s ≥110%~150% load |
| Transfer Time | Normal range:10ms(typical) 15ms(max)
Generator / wide renge : 20ms (typical) 40ms(max) |
| Power Limitation | | |
| BATTERY |
| Battery Voltage | 24.0Vdc±0.6Vdc | 48.0Vdc±0.6Vdc |
Battery low
alarm voltage | 21.0Vdc±0.6Vdc | 42.0Vdc±1.2Vdc |
Battery low
shut-down voltage | 20.0Vdc±0.6Vdc | 40.0Vdc±1.2Vdc |
| AC CHARGER |
| Charger Current | 10A/20A selectable
10A Vi/p<170Vac or Vi/p>280Vac; 20A Vi/p=230Vac | 10A selectable
10A Vi/p<200Vac or Vi/p>280Vac |
Boost Charger
Voltage (bat.Type) | 28.4Vdc | 56.8Vdc |
Floating Charger
Voltage (bat.Type) | 27.4Vdc | 54.8Vdc |
Over Charger
Voltage | 30.0Vdc | 58.0Vdc |
| PV CHARGER |
| Charger Current | No PV Charger | 40A+5%/-10% | No PV Charger | 60A+5%/-10% |
Bulk Voltage
/ floating Voltage | 28.4V±0.6V/
27.4V±0.6V | 56.8V±1.2V/
54.8V±0.6V |
| Efficiency | maximum of 95% | maximum of 95% |
| Input range | 0-75V(±5%) | 0-150V(±5%) |
PV charge
work range | Bat.V+2V to 75V(±5%) | Bat.V+2V to 150V(±5%) |
| Storage temperature | -5ºC~60ºC |
| AUDIBLE ALARM |
Low battery
at inverter mode | Beeps 1 time every 2s |
| Over load | 110%~150% load:beep 10 times every 0.5s
>150% load:beep 5 times every 0.5s then fault |
| Fault | Beeps continuously |
| PHYSICAL |
| Net Weight(KG) | 5.2 | 8.2 |
| Dimension,D*W*H(mm) | 318*268.4*85.2(mm) | 428.5*350.4*119(mm) |
| *Specification is subject to change without prior notice. |

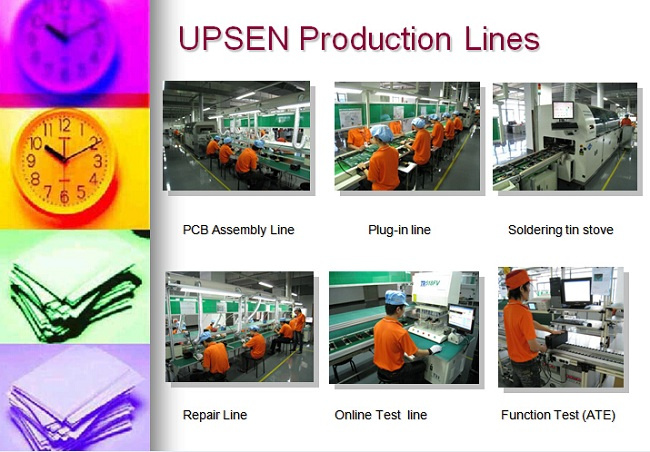

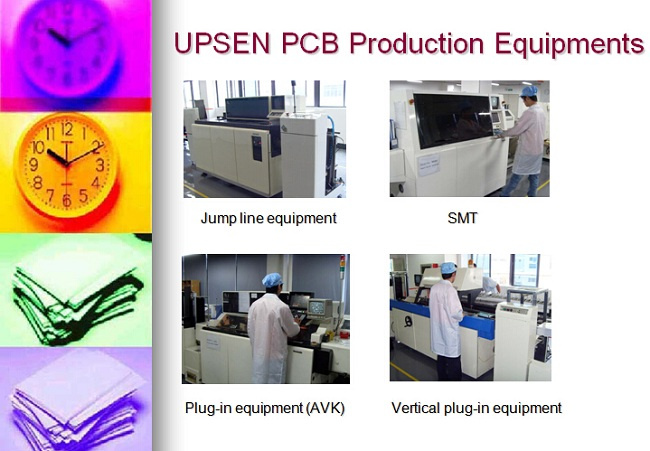

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
