| Prod Model: |
DIN1x1 ISO F-P-O |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
Sine Wave, Square Wave, Sawtooth Wave etc. Signal |
| Output Signals: |
0-5V, 0-10V, 0-75mv., 4-20mA, 0-20mA, etc |
| Power Supply: |
5V. 12V, 24V, 220VAC, etc. |
| Installation: |
35mm DIN Rail-Mounted Type |
| In/out Channel: |
1X1, 2X2 |
| Output: |
Analog Sensor |
| Usage: |
Acceleration Sensor, Position Sensor |
Product Description

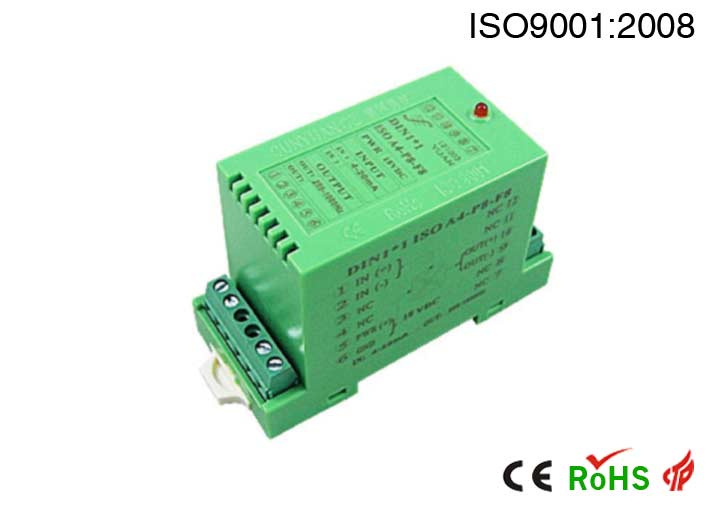

Frequency to Voltage Converter-FV Converter
DIN 1X1 ISO F-P-O Series
F-V Converter Applications-Sine wave, square wave, sawtooth wave etc. Signal isolated amplifier and converter
-DC signal converter to isolated frequency pulse signal
-Accurate digital voltage testing meters
-A/D isolated converter instruments
-Data testing and remote monitor instrument
-Analog signal data acquisition
-Ground interference control
F-V Converter Characteristics-Change the input signal into unit impulse signal
-Efficiency grade: 0.1/0.2
-International standard signal input: 0-5V/0-10V/1-5V, 0-10mA/0-20mA/4-20mA
-Standard signal output: 0-5kHz/0-10kHz /1-5kHz and so on
-Extremely high linearity in whole process(Nonlinearity<2%)
-Signal input/output/ Accessorial power supply

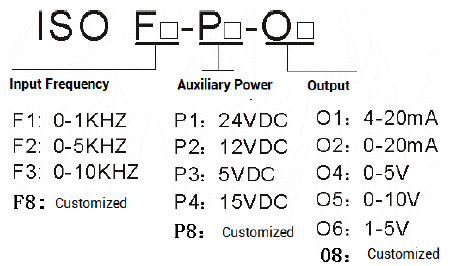

F-V Converter Model Selection:
DIN 1X1
Model Selection Examples:
E.g.1: Signal Input: 0-1KHZ, Signal Output: 4-20 mA;Auxiliary Power: 24V, 35mm DIN Rail-mounted type.
Product Model No: DIN1X1 ISO F1-P1-O1
E.g.2: Signal Input: 0-10KHZ, Signal Output: 0-5V; Auxiliary Power: 12V, 35mm DIN Rail-mounted type.
Product Model No: DIN1X1 ISO F3-P2-O4

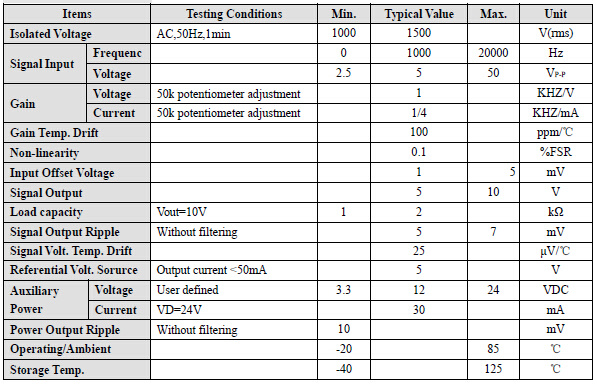

F-V Converter Technical Parameters:

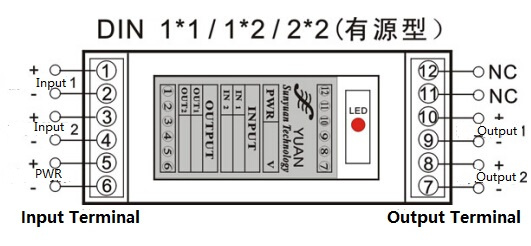

F-V Converter Wiring
Note: Please enquire us for detailed data sheet, thank you!
