From China 33kv Oil Immersed Power Transformer
| Price: |
US $ 10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
S11 |
| Winding Material: |
Copper Winding |
| Iron Core: |
New Grain Oriented Silicon Steel Shee |
| Coil Structure: |
Toroidal |
| Vector Group: |
Dyn11 or Yyn0 or Others |
| Rated Capacity: |
30 - 3500kVA |
| Coil Number: |
Autotransformer |
| High Voltage: |
6-35kv |
| Application: |
Electronic |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi |
Product Description

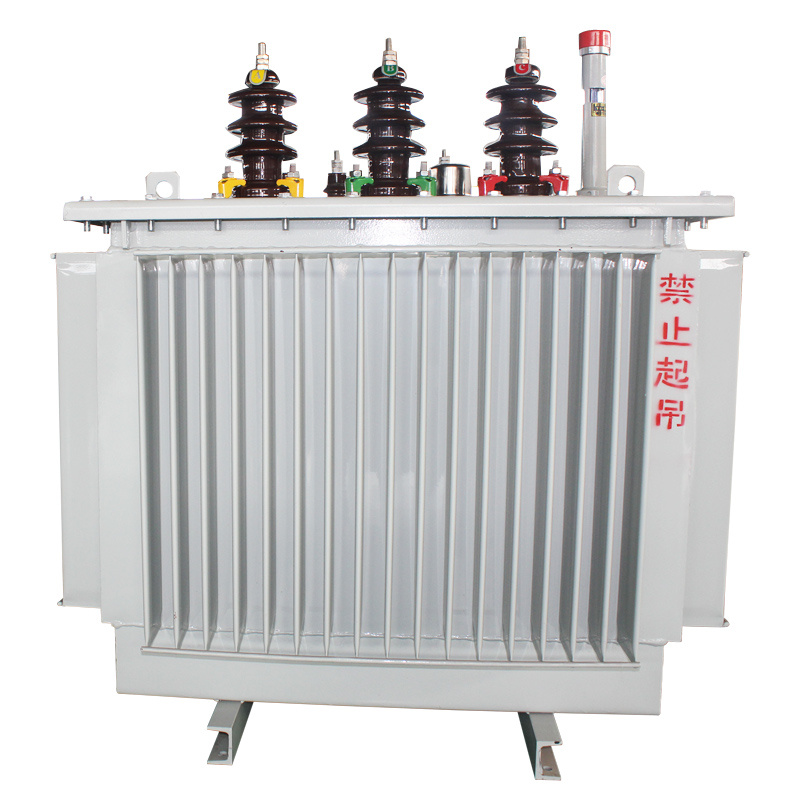

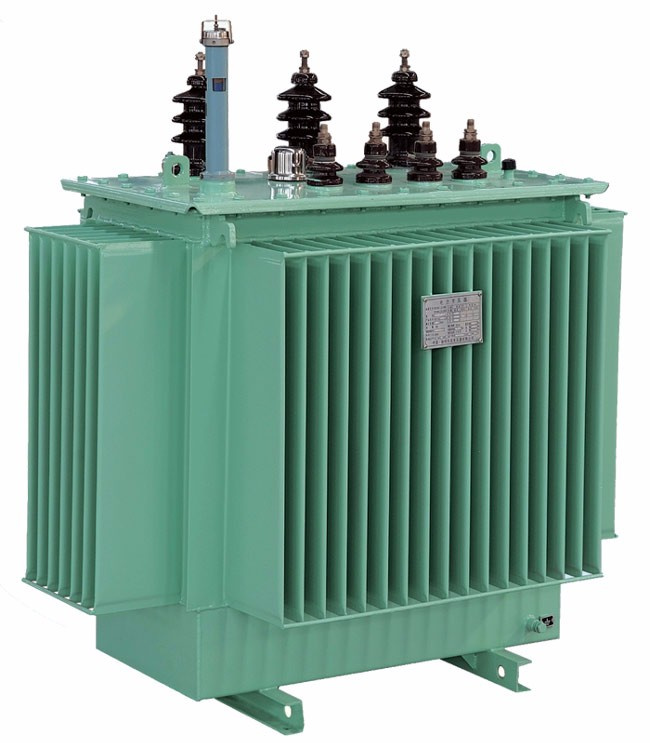

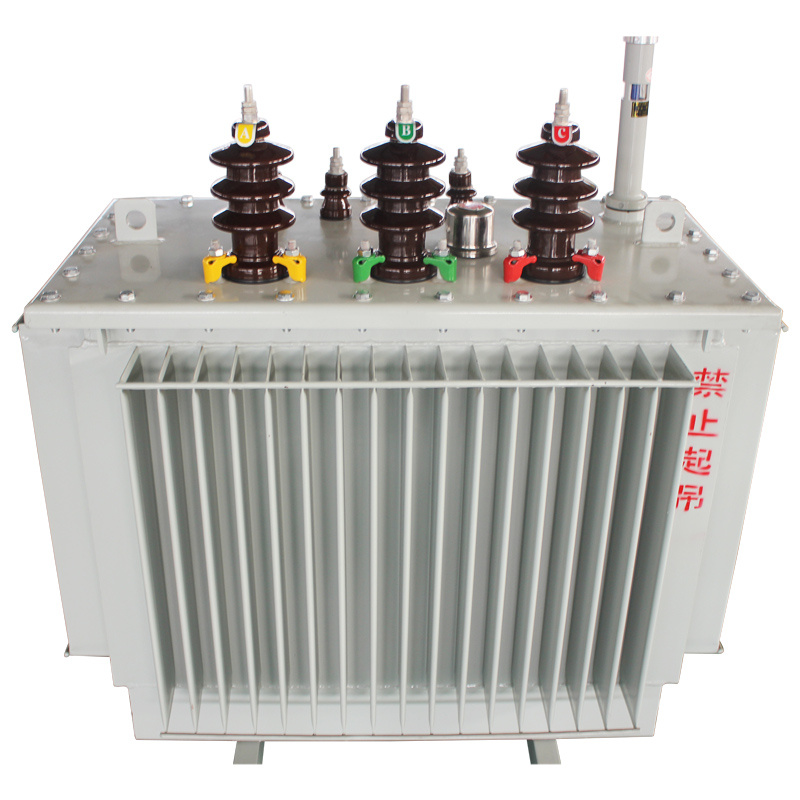

S11 Series
| S11 series transformer is one kind of low loss copper winding product. It adopts high quality material, especially applying the new technology and new material to the insulation of the coil and transformer body, thus the no-load and the load loss are obviously reduced, the performance and structure are more reliable and superior. |
Product Feature
1. Good Economic Performance
The no-load loss for S11 series products decreased 10.3% averagely,no-load current decreased 22.4% based on S9 series.2. Long Service Life Transformer tank adopts hermetical structure tank and tank cover can be connected by bolts or welded firmly,the transformer oil won't contact with air,so that extend the service life effectively.3. High Operation Reliability Improve the relevant sealing parts for the tank,increase the reliability and advance the technical level to ensure the reliability of the seal.4.Small Installation Area S11-M series transformer tank uses the corrugated plate radiator.When the oil temperature changes,the corrugated plate will proceed thermal expansion,which can replace the role of the oil conservator.The corrugated plate tank has beautiful appearance,less occupied area.
Packing & Shipping
Strong Iron shelf and wooden carton are choices for you

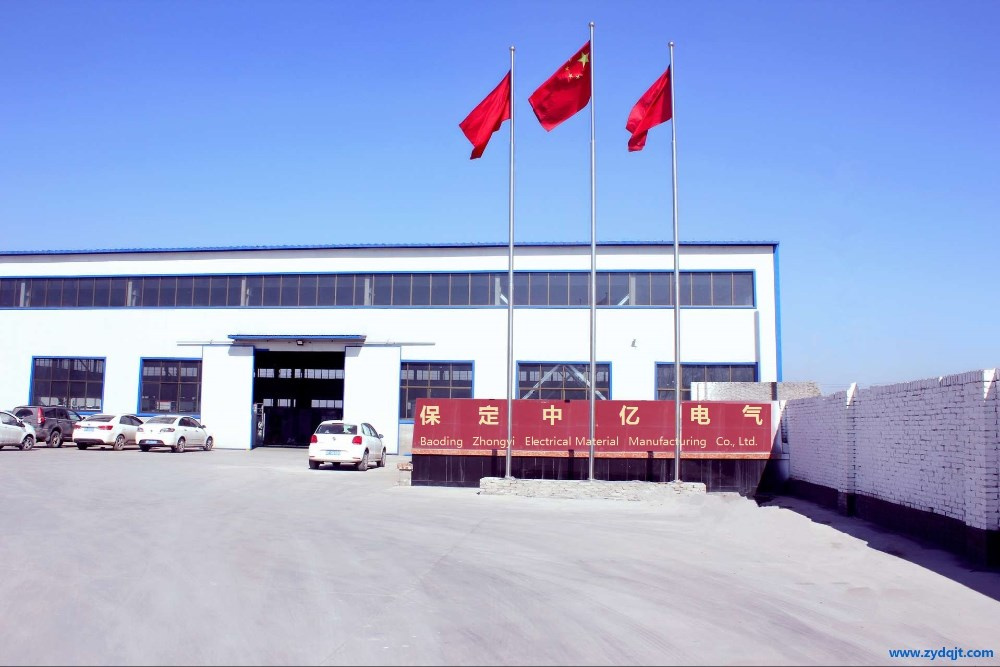

Our company
Baoding Zhongyi Electrical material Manufacturing Co., Ltd.
Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
The company mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
|
Certifications
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.
The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
