FRP Strength Member Flat Type 12 Cores Singlemode Fiber Optic Cable ADSS

Name: FRP Strength Member Flat Type 12 Cores Singlemode Fiber Optic Cable ADSS
Brand: all-electronics-online.com
SKU: 818130065
Availability: InStock
Rating: 4.6 (108 reviews)

Price:	US $ 0.12-0.4/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFXTY-FL
Fiber Type:	G652D
Fiber Count:	4cores 6cores 12 Cores
Strength Member:	FRP
Apllications:	Aerial
Installation Temperature:	-40~+70
Fiber:	Singlemode
Application:	Telecommunication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Yueyou
Sheath Material:	PE Material

Product Description

FRP Strength Member Flat Type 12 Cores singlemode fiber optic cable ADSS

Description:

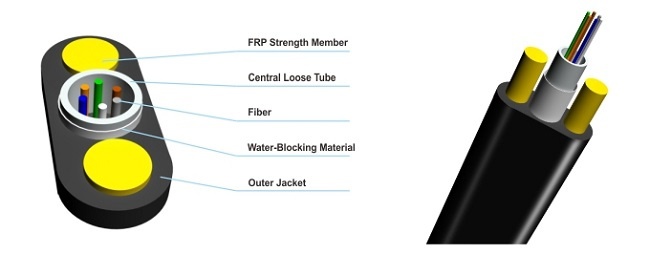

The Outdoor Dielectric Flat Cable is used for Aerial. The fiber are positioned in a loose tube made of high modulus plastic,PBT loose tube are filled withwater-resistance filling compound,Two parallel FRP as strength member (Fiber Reinforced Plastic),Outer sheath is made of UV resistance PE jacket.

Features:

Fiber count: 2-24 Fibers in Gel filled loose tube.

Fiber selection: Single mode or Multimode.

Strength member: FRP.

Gel filled loose tubes for a critical protection of fiber.

Maxima span 120 meters.

Small diameter, Light, easy installation.

Sheath materials suit a variety of installation environments, UV and moisture resistance design.

IEC 60794-1 standard.

Application:

Aerial.

Fiber Characteristics:

Fiber		G.652D	G.655	50/125um	62.5/125um
Attenuation(+20ºC)	@850nm			≤3.0dB/km	≤3.3dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500MHz.km	≥200MHz.km
Bandwidth	@1300nm			≥500MHz.km	≥500MHz.km

Physical characteristics and mechanical performance:

Fiber count	Cable diameter(mm)	Cable Weight(kg/km)	Allowable Tensile Load (N)	Allowable Crush resistance (N/100mm)	Dynamic and Static Bend (mm)	Installation Temperature Range(ºC)
2-12	4.6×7.6±0.2	35±10	1800/750	2000/800	20D/10D	-40~+70
14-24	4.9×8.0±0.2	40±10	1800/750	2000/800	20D/10D	-40~+70
