Amax Industrial Group China Co., Ltd. >> Fs-I10-2.4G 10CH Afhds 2A Automatic Frequency Hopping Digital Transmitter

Fs-I10-2.4G 10CH Afhds 2A Automatic Frequency Hopping Digital Transmitter

Fs-I10-2.4G 10CH Afhds 2A Automatic Frequency Hopping Digital Transmitter
Price: US $ 95-100/Piece
Min Order: 25/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Sensitivity: 1024
Ant Length: 26mm
Weight: 620g
Power: 3.7V (1700mAh)
Size: 184 * 170 * 28mm
Suitable For: Adult
Type: Electronic Accessories

Product Description

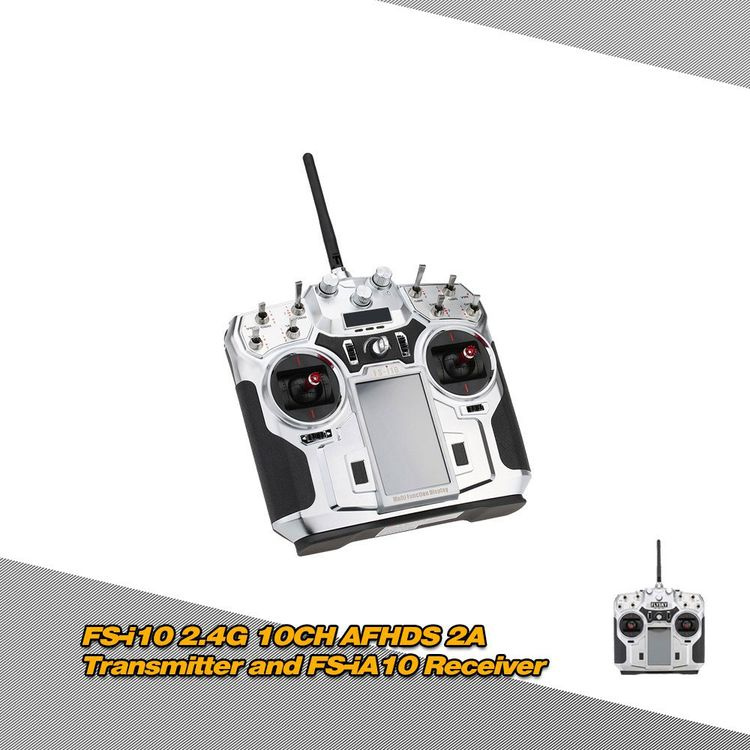

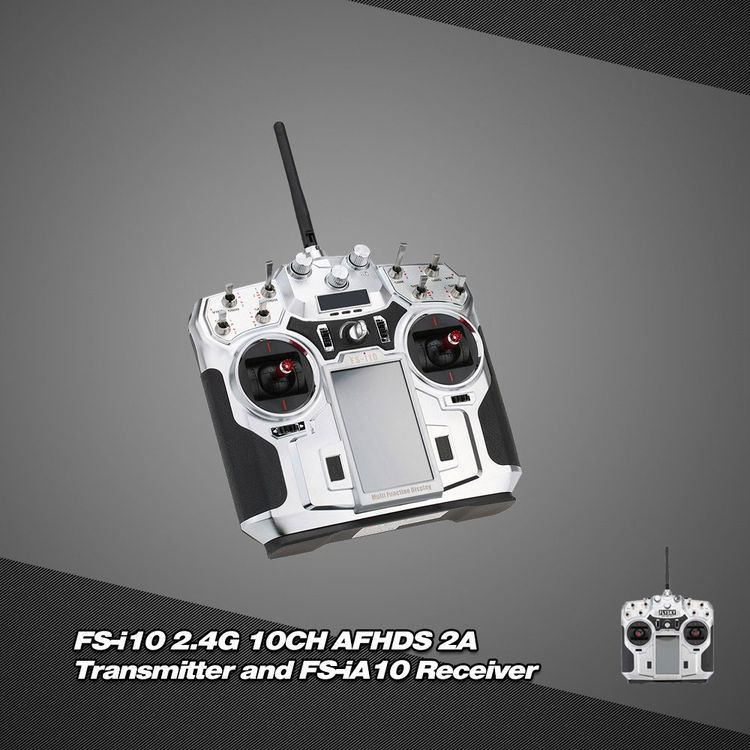

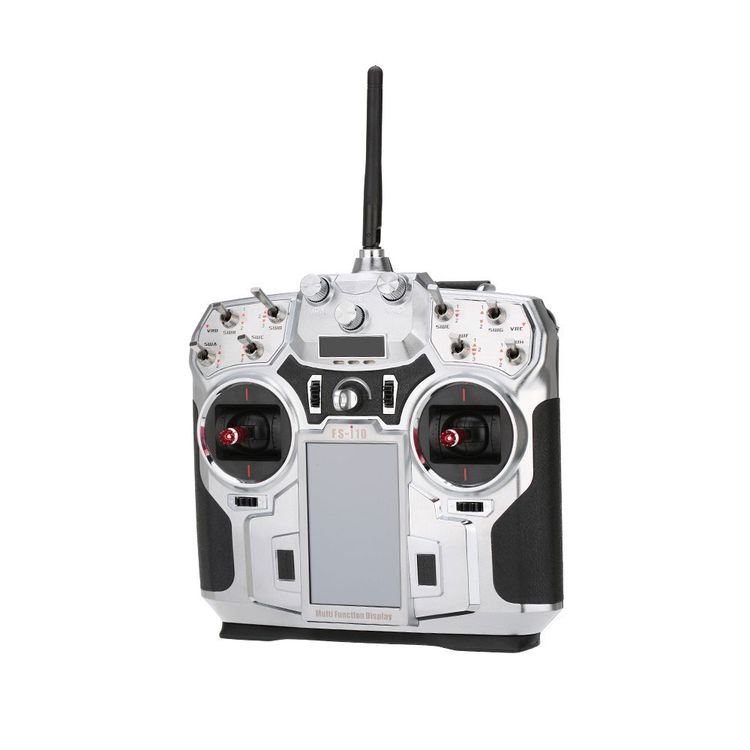

he newest FS-i10 adopts the 2.4GHz AFHDS 2 (AUTOMATIC FREQUENCY HOPPING DIGITAL SYSTEM 2). The FS-i10 is very moderh design and

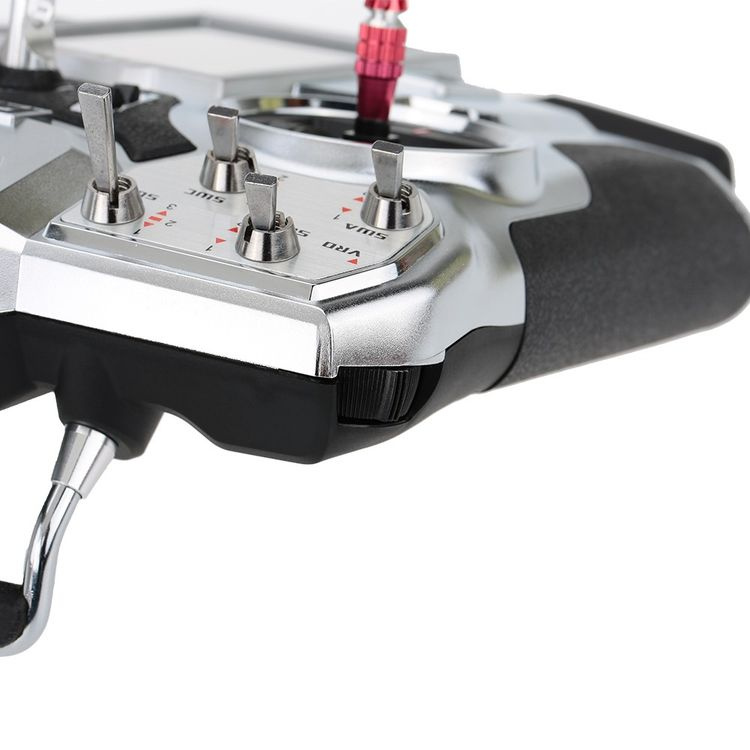

features a lightweight ultra-thin body, rubberised hand grips. There are two very nice feeling gimbal controllers 8 switches 6 two position switches and
2 three position. With a 3.55inch colorful TFT-LCD touch screen which shows all relevant information and how you set the transmitter up, it shows
transmitter's battery voltage, receiver's battery voltage and any information from any sensors you have connected to the receiver. To set up the transmitter
is extremely easy no more having to be a computer programer like a lot of radio systems expect you to be, it is very similar to operating a modern smart phone.

Features:
High gain and high quality multi directional antenna
Low power electronic components and a very sensitive receiver chip
This radio system works in the frequency range of 2.4000 to 2.4835GHz
The transmitter can storage 20 models and every model binding condition
Free software can be upgraded online and system can be updated by fast-easy way
Adopt latest two-way communication system and all the FS-brand receivers can be compatible with this transmitter
Double antenna structure makes 2.4G frequency module signal smoothly transmiss at all direction and signal safer
The parameter can be set more easily and more conveniently with 3.55 inch, 240 * 400 pixels(WQVGA) colorful TFT-LCD touch screen
Eight switches and 5 knobs can be assigned to different functions in most applications. Three knobs can be hidden by pressing them
Main page can monitor i10 voltage, speed, temperature, voltage parameter, function condition(on/off), model structure and timer in real time

Transmitter Specifications:
Channels: 10
Model type: Helicopter, airplane and glider optional
RF range: 2.4000-2.48GHz
Bandwidth: 500KHz
Band: 160
RF power: Less than 20 dBm
2.4G system: AFHDS2
Code type: GFSK
Sensitivity: 1024
Low voltage warning: Yes (less than 3.75V)

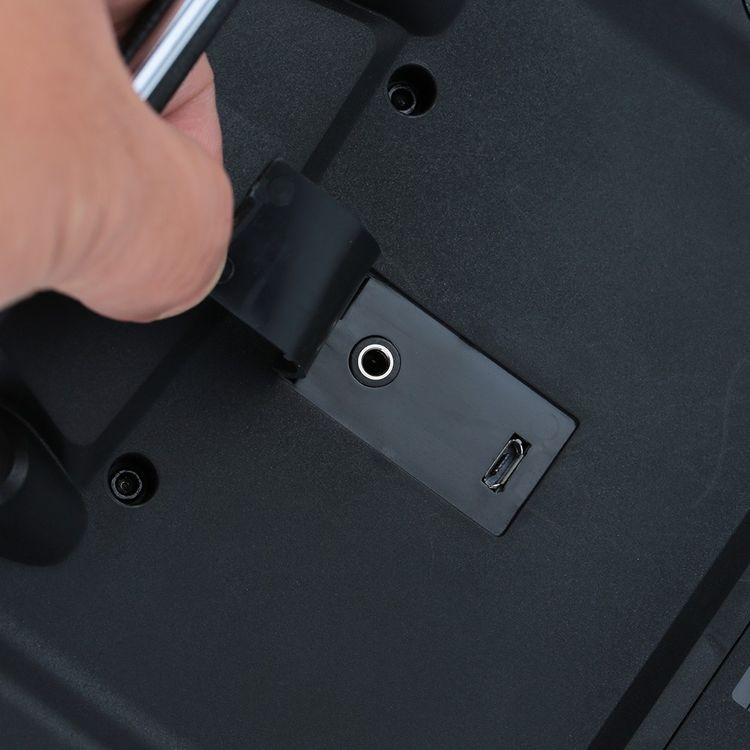

DSC port: Yes (USB, HID)
SD port: Yes
ANT length: 26mm
Weight: 620g
Power: 3.7V (1700mAh)
Size: 184 * 170 * 28mm
Color: Silver

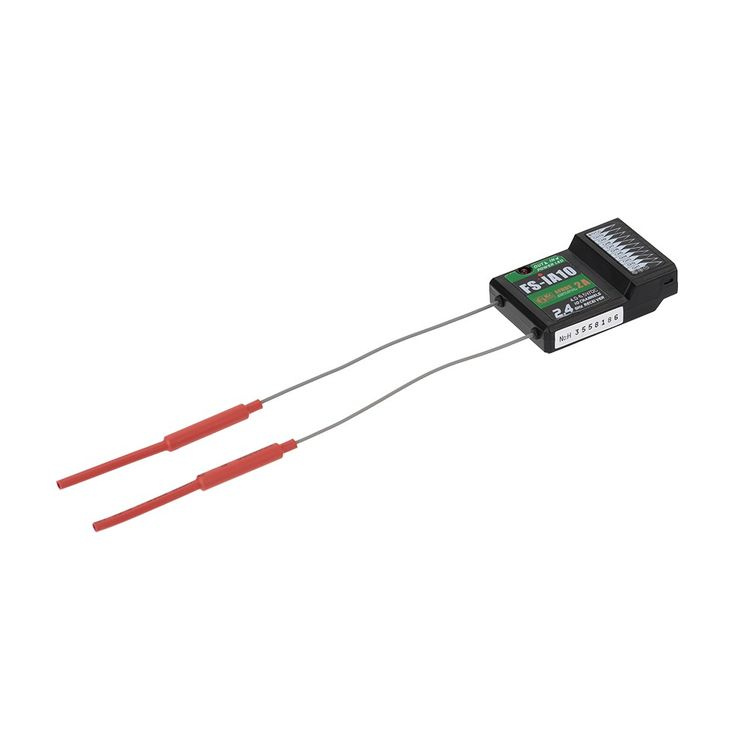

Receiver Specifications:
Channels: 10
Model type: Helicopter, airplane and glider
RF range: 2.4000-2.48GHz
Band: 160
RF power: Less than 20 dBm
Sensitivity: -105DBm
2.4G system: AFHDS2
Code type: GFSK
ANT length: 26mm
Power: 4.0-6.5V/DC
Weight: 21g
Size: 47 * 32 * 15mm
Color: Black
i-BUS Port: Yes
