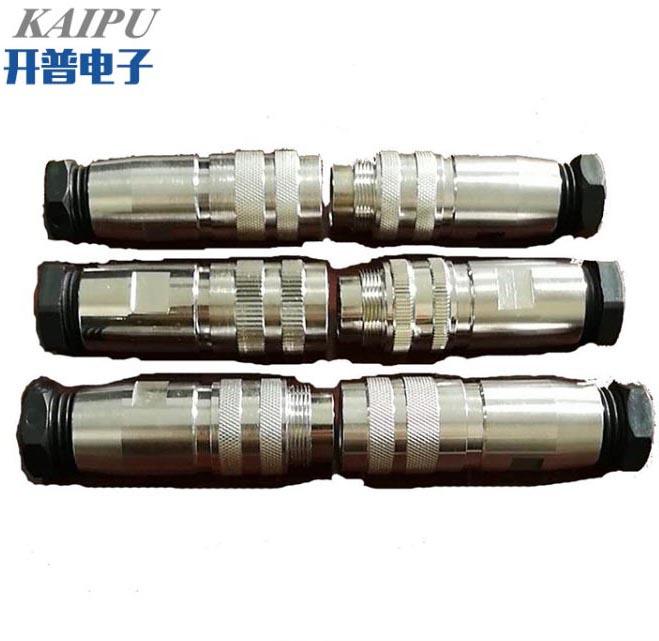

Fs1 Series Circular Cable to Cable Connector

Name: Fs1 Series Circular Cable to Cable Connector
Brand: all-electronics-online.com
SKU: 696129255
Availability: InStock
Rating: 4.4 (90 reviews)

Price:	US $ 9.4-12.6/Set
Trade Terms:	FOB
Min Order:	100/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS1-6AT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Fs1-6atj
Size1:	Fs1-6atk
UL Certification:	E308558

Product Description

FS1 series circular cable tocable connector,The connectors of series FS1 are available with 3-8 contacts, screw coupling, can interchange with Amphenol C 091 A /B/D & Binder 423 series. Meet DIN45326 standard. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application. Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.UL certification:E308558.

Product Ordering

FS1 6 T J - 8 C

1 2 3 4 5 6

1.Name: FS1 type water proof connector

2.Number of contacts: 3,4,5,5A,5B,6,6A,7,7A,8 pcs

3.Connector type: T:Plug; Z1:circular receptacle,Z2:hexangular receptacle,

Z3:square receptacle,ZA: PCB mount receptacle

4.Contacts type: J:pin; K:socket,J1:Crimp pin,K1:crimp socket

5.Meet cable diameter: 6-9 mm

6.Protect cap: C:metal cap,C1:Hard Plastic cap,C2:soft plastic cap

Technical characteristics

Dimensions and outlook:

Panel out type:

Plug:Solder contacts plug:FS1-8TK/FS1-8TJ:

Circular Receptacle with PCB mount contacts:PCB-Z1JA/Z1KA

Hexangular receptacle with PCB contacts meet thick wall:PCB-Z2A

Circular Receptacle with solder contacts:FS1-8Z1J/8Z1K

Square Receptacle with solder contacts:FS1-8Z3J/8Z3K:

Special Small Square Receptacle with solder contacts:FS1-8Z3K-S1/FS1-8Z3K-S2:

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
