| Prod Model: |
FT12-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
12V Telecom Battery |
| Size: |
L*W*H=552*110*239mm Gel Battery |
| Capacity: |
100ah Front Terminal Battery |
| Weight: |
29.4kg Front Terminal Access Battery |
| Warranty: |
3 Years Gel Front Terminal Battery |
| Expected Cycle Time: |
15-20 Years |
| Delivery Time: |
7 Days |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global |
| Terminal Type: |
T16 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

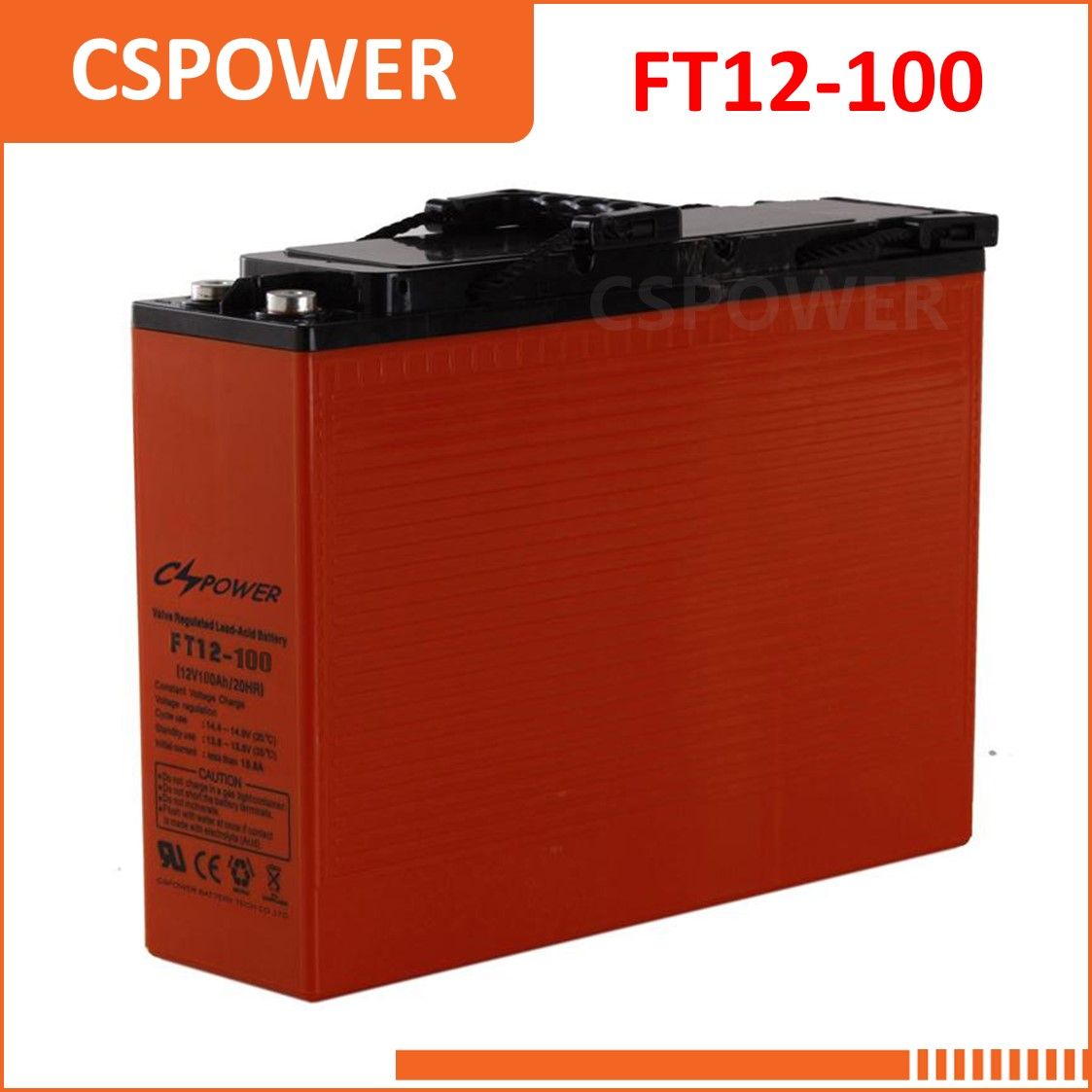

12V100Ah Communication Battery Telecom Battery with front terminal access
Telecom Long Life Battery
Front access terminal design
Stability, dependability and reliability
19" & 23" relay rack
Detailed Description Front access terminal telecom battery
CSPOWER Telecom Battery Front Terminal lead acid battery is mainly used in the area of communication, off grid solar power system, home backup system, with small space and long life, which is novel in design, reasonable in structure and occupying the leading position in the same industry of the world.
Battery model: FT12-100 Telecom battery
Battery Type: Telecom front termianl battery Long Life Battery
Battery warranty life: 3 years
Advantages:
Long Life Design
Valve Regulated Construction
Gas Recombination System(Sealed)
Safety and Automatic Valve System
Heavy Duty Grids
Float Service life of battery
Operation in any position
Wide Operation Temperature Range
Available in flame retardant ABS material for the battery case V0
Application
Telecom system
Communication system,
microwave station,
mobile base station,
data center,
Radio / broadcasting station
Power system of special network or local area network
Emergency lighting and signal system
UPS, Standby power
Electric power systems;
Solar powered and wind powered systems;
Load leveling and storage equipment;
Power generation plants;
larm systems;
Uninterruptible power supplies;
stand-by power for computers;
Medical equipment;
Fire and security systems;
Control equipment;
Stand-by electric power.
Pay Attention To:
1.Never charge the battery in a sealed container.
2.Never disassemble the battery.
3.Never short-circuit battery terminals.
4.Never incinerate batteries, for they may explode.
5.Do not press and/or bend the terminals, or overheat them.
6.Do not mix old and new batteries together, neither use batteries of different types or brands.
7.Do not dispose of with household waste.
8.Be sure to use the specified charger for battery, and follow the charging instructions correctly.
About CSPOWER:
Our office is in Shenzhen, factories located in Dongguan and Shaoguan China.
We have obtained CE, ISO, IEC certificates and SGS test report for battery.
CSPOWER Battery Tech Co.,Ltd supply our customers reliable products with high quality and competitive price, since we have our own Lead mine & smelter factory & plate factory & SLA battery assembling factory, the purity quotient of our lead is99.998%.
The main products of CSPOWER is 2V/6V/12V AGM sealed free maintenance lead acid battery, Solar deep cycle battery, Solar GEL battery upto 2V3000Ah, 6V300Ah, 12V300Ah, total over 400models, mainly used for solar power, wind power, ups system, inverter system, telecom, golf cart, electric vehicles and so on.
Welcome to contact us for the battery details.
Contact CSPOWER Details:
Web: www.csbattery.net
www.csagmbattery.com
www.cssolarbattery.com
http://cspower.en.made-in-china.com/
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 20hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| FL12-55 | 12 | 55 | 17 | 37.5 | 277 | 10.9 | 106 | 4.17 | 222 | 8.74 | 222 | 8.74 | T16 |
| FL12-75 | 12 | 75 | 27 | 59.67 | 562 | 22.1 | 114 | 4.49 | 188 | 7.4 | 188 | 7.4 | T16A |
| FL12-100 | 12 | 100 | 30.6 | 67.6 | 508 | 20 | 109 | 4.29 | 223 | 8.78 | 238 | 9.37 | T16 |
| FL12-110 | 12 | 110 | 32.5 | 71.83 | 395 | 15.51 | 110 | 4.29 | 287 | 11.29 | 287 | 11.29 | T16 |
| FL12-120 | 12 | 120 | 38 | 83.7 | 551 | 21.7 | 109 | 4.29 | 239 | 9.41 | 239 | 9.41 | T16 |
| FL12-150 | 12 | 150 | 50 | 110.20 | 551 | 21.7 | 109 | 4.29 | 288 | 11.34 | 288 | 11.34 | T16 |
| FL12-180 | 12 | 180 | 56 | 123 | 547 | 21.5 | 125 | 4.92 | 317 | 12.48 | 317 | 12.48 | T16 |
| FL12-200 | 12 | 200 | 60 | 126 | 560 | 22.1 | 125 | 4.92 | 316 | 12.44 | 316 | 12.44 | T16 |
