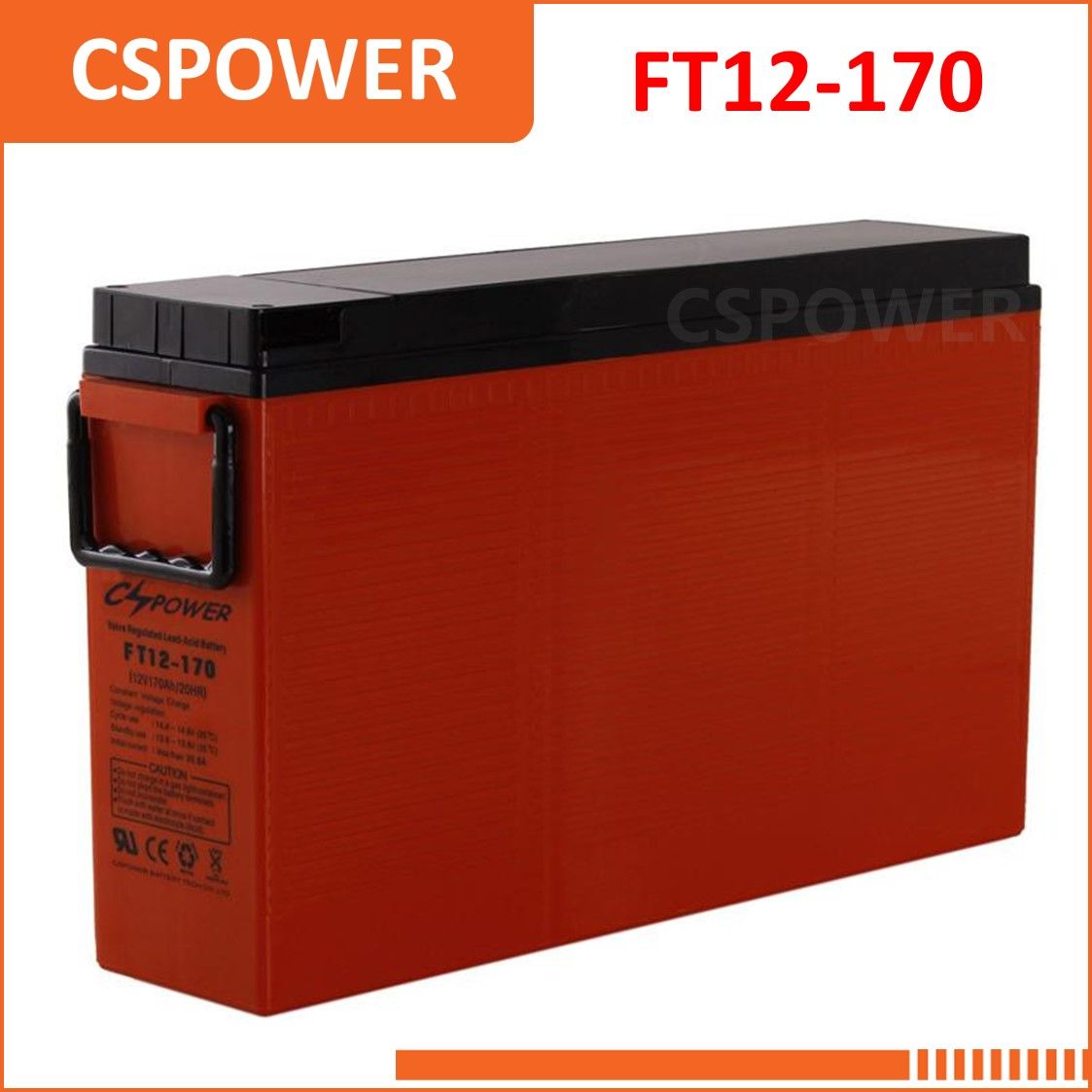

FT12-170 12V170Ah Front Terminal AGM/UPS Battery for Solar Storage

Prod Model:	12v170ah Front Terminal battery
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Ft12-170ah Front Terminal Battery
Size:	546*125*316mm
Weight:	53.5kg
Warranty:	3 Years
Delivery Time:	10-15 Days
Color:	Black
Capacity:	170ah
Brand:	Cspower/OEM
Ceritficate:	CE, ISO.IEC
Lifespan:	10-12 Years
Type:	Lead-Acid Batteries
Usage:	Wind and Solar System
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	FT12-170ah Front Terminal Battery

Product Description

Product Description

12v170ah Front Terminal AGM/UPS Battery with 12V Volatge for solar storage
Characteristics
CSPOWER Front Terminal lead acid battery is mainly used in the area of communication, which is novel in design, reasonable in structure and occupying the leading position in the same industry of the world.
As with previous INTELEC (International Telecommunications Energy) conferences, many people were concerned about the life and durability of VRLA (Valve Regulated Lead Acid) batteries. It can be employed in numerous applications in the fields of communications. In order to ensure that the power supply is guaranteed at all times, essential facilities are backed up with high performances battery systems. Sudden breaks in the power supply are then no longer a problem. If the power suddenly fails, battery systems take over the emergency supply of power.


12v170ah Front Terminal AGM/UPS Battery with 12V Volatge for solar storage
Advantages:
1. Sealed free maintenance lead acid battery.
2. Non spillable and water proof.
3. Environmental friendly.
4. Thick pasted plates with high quality lead-tin-calcium alloy grids for long service life
5. Centralized venting system for gas ventilation
6. Plastics or rope handles for handling and installation convenience
7. Front access terminals for easy and quick connection
8. Low internal resistance
9. Lower self discharge
10. Design life is over 12 years
11. Case and cover in strong flame retardant ABS, V0 class
12. Widely working environment: Can be used at widely difference in temperature from subzero 40 to 60.

12v170ah Front Terminal AGM/UPS Battery with 12V Volatge for solar storage
Application
Control systems, Electric toys, Emergency lamp, Power tools, Medical treatment equipment, Alarm system, Emergency light system, Standby power supply, UPS and computer standby power supply, Power system, Telecommunication system, Firefighting equipment standby power supply, Railway system, Power station, Ship equipment, Military equipment, Telephone switching system.


Model NO.	Nominal Voltage (V)	Rated Capacity(AH) 20hrs/25	Approx. Weight		Dimensions(mm)								Terminal Type
			kg	lbs	Length		Width		Height		Total Height
					mm	inch	mm	inch	mm	inch	mm	inch
FT12-55	12	55	17	37.5	277	10.9	106	4.17	222	8.74	222	8.74	T16
FT12-75	12	75	27	59.67	562	22.1	114	4.49	188	7.4	188	7.4	T16A
FT12-100	12	100	30.6	67.6	508	20	109	4.29	223	8.78	238	9.37	T16
FT12-110	12	110	32.5	71.83	395	15.51	110	4.29	287	11.29	287	11.29	T16
FT12-120	12	120	38	83.7	551	21.7	109	4.29	239	9.41	239	9.41	T16
FT12-150	12	150	50	110.20	551	21.7	109	4.29	288	11.34	288	11.34	T16
FT12-180	12	180	56	123	547	21.5	125	4.92	317	12.48	317	12.48	T16
FT12-200	12	200	60	126	560	22.1	125	4.92	316	12.44	316	12.44	T16

Easy to install and saving space
With front access terminals, it's easy to install and take voltage readings during service
High-energy density:
It offers high reliability and delivers superior performance while occupying less space and increasing energy density
Excellent discharging ability:
Radial grid design and tight assembly technology ensures an excellent high-rate discharge performance
Longer float lifespan:
It can be used over 8 years in float using at 25ºC temperature with a unique corrosion-resistant grid alloy
Maintenance-free operation:
Absorbent glass mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance
During the expected float service life of Prostar batteries, no need to check the specific gravity of the electrolyte or add water
Low self discharge:
Using high purity raw materials ensures Prostar batteries have less self-discharge
Environment-friendly and non-polluting:
Gas recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out
Safe and reliable:
Efficient venting system automatically release excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting
Applied scope:
19/23-inch standard power supply cabinets
Communication systems: switch, microwave stations, mobile base stations, data centers, radio and broadcasting stations
Power supply system used for special or local area network (LAN)
Signal system and emergency lighting systems
EPS and UPS systems



12v170ah Front Terminal AGM/UPS Battery with 12V Volatge for solar storage
Notice

Don't near the hot source and don't under the sunshine.
Don't charge in the sealed container.
No short circuit. It should be addition charge if you don't use, and single charge per three months, to avoid irreversible sulfating. The battery should be changed when the battery jar broken or the electrolyte omitted, to avoid acid corrosion.
Don't store in the space of acid gas.
You should be careful and regular check when use the battery. To avoid the battery don't work. You should change the battery if the capacity is not full or has been damage, especially after one year using.
Don't put the battery in the fire, or it will explode.

Our goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.

CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, OPzV Battery, Car/Auto Batteries, Motorcycle Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.

Located in a world-class, modern industrial park of 100, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.

CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Car battery, Motorcycle battery, Telecom Front terminal battery; The GEL Battery is Solar Gel electrolyte battery, OPzV battery, longer life span 15-25years mainly for solar and wind power system.

With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, CE authentication of the European Union, RoHS, ISO9001, and TLC certificates in China.

In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
