| Prod Model: |

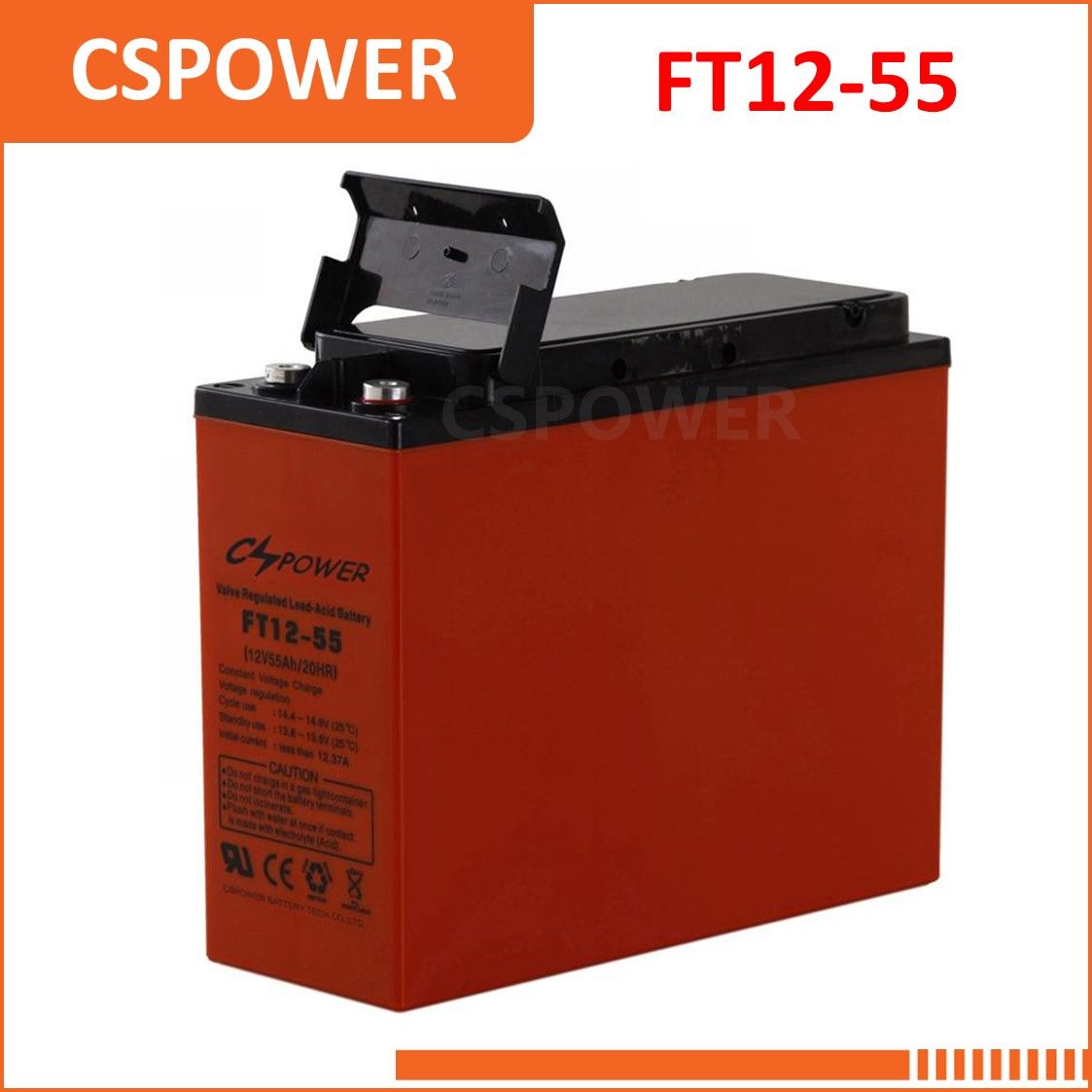

FT12-55 Front Terminal Telecom Battery |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Front Terminal Battery Fct12-55 |
| Size: |
L*W*H=277*106*223*223mm |
| Voltage: |
12V Front Terminal Battery |
| Capacity: |
55ah Telecom Battery |
| Weight: |
16kg Communication Battery |
| Warranty: |
3years Front Access Terminal Battery |
| Expected Cycle Time: |
10-12years Front Terminal Battery |
| Delivery Time: |
7 Days Telecom Battery |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Front Terminal Battery |
Product Description
Communication Battery Front Access Terminal Battery for Telecom 12V55ah
Front Terminal Telecom series Detailed Description
>CSPOWER Front Terminal Telecom lead acid battery 12V100Ah is mainly used in the area of communication, Front Terminal Telecom Batteries is novel in design, reasonable in structure and occupying the leading position in the same industry of the world.
>As with previous INTELEC (International Telecommunications Energy) conferences, many people were concerned about the life and durability of VRLA (Valve Regulated Lead Acid) batteries. It can be employed in numerous applications in the fields of communications.
>In order to ensure that the power supply is guaranteed at all times, essential facilities are backed up with high performances battery systems. Sudden breaks in the power supply are then no longer a problem. If the power suddenly fails, battery systems take over the emergency supply of power.
Front Terminal Telecom 12V55Ah Characteristics
1. Valve regulated sealed free maintenance lead acid battery 12V
2. Front terminal battery 12V
3. Telecom battery 12V55Ah
Front Terminal Telecom Lead Acid Battery 12V55Ah Main Features
1. Sealed free maintenance lead acid battery.
2. Non spillable and water proof.
3. Environmental friendly.
4. Thick pasted plates with high quality lead-tin-calcium alloy grids for long service life
5. Centralized venting system for gas ventilation
6. Plastics or rope handles for handling and installation convenience
7. Front access terminals for easy and quick connection
8. Low internal resistance
9. Lower self discharge
10. Design life is up to 12 years
11. Case and cover in strong flame retardant ABS, V0 class
Front Terminal Telecom Battery 12V55Ah Applications
> Communication equipment
> Uninterruptible power supplies
> Telecommunication systems
> Electronic cash registers
> Microprocessor based office machine
> Other standby power supplies
>Control systems,
>UPS and computer standby power supply
>Electric toys, Emergency lamp, Power tools
>Medical treatment equipment, Alarm system
>Emergency light system, Standby power supply
>Firefighting equipment standby power supply
>Railway system, Power station, Ship equipment
>Military equipment, Telephone switching system
12V55Ah Front Terminal Telecom Battery Terms Details
Payment Terms: T/T
Minimum Order: 10 Units
FOB Port: Guangzhou/Shenzhen/Hongkong
Lead Time: 5 - 7 days
Product Certificate: CE, ISO, UL
Why choose CSPOWER
1. Door to door service.
2. Low cost raw material with high quality. We have own plates factory, can manufacture plates by ourselves.
3. Independent designer with more than 10 years design experience.
4. Chief engineers with more than 20years experience in battery field.
5. Product with the international market step.
6. We focus on quality, never use faulse gel and recycle lead.
7. All production lines in our factory are automatic and imported from Germany.
8. Our products are exported to Middle East, Europe, France, Canada, Japan, Korea and else.
9. We would like stand with you in same line to open market with long term business.
CSPOWER goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.
Welcome to contact us for the battery details.
Contact CSPOWER details:
Web: www.csagmbattery.com
www.cssolarbattery.com
http://cspower.en.made-in-china.com/
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 20hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| FT12-55 | 12 | 55 | 17 | 37.5 | 277 | 10.9 | 106 | 4.17 | 222 | 8.74 | 222 | 8.74 | T16 |
| FT12-75 | 12 | 75 | 27 | 59.67 | 562 | 22.1 | 114 | 4.49 | 188 | 7.4 | 188 | 7.4 | T16A |
| FT12-100 | 12 | 100 | 30.6 | 67.6 | 508 | 20 | 109 | 4.29 | 223 | 8.78 | 238 | 9.37 | T16 |
| FT12-110 | 12 | 110 | 32.5 | 71.83 | 395 | 15.51 | 110 | 4.29 | 287 | 11.29 | 287 | 11.29 | T16 |
| FT12-120 | 12 | 120 | 38 | 83.7 | 551 | 21.7 | 109 | 4.29 | 239 | 9.41 | 239 | 9.41 | T16 |
| FT12-150 | 12 | 150 | 50 | 110.20 | 551 | 21.7 | 109 | 4.29 | 288 | 11.34 | 288 | 11.34 | T16 |
| FT12-180 | 12 | 180 | 56 | 123 | 547 | 21.5 | 125 | 4.92 | 317 | 12.48 | 317 | 12.48 | T16 |
| FT12-200 | 12 | 200 | 60 | 126 | 560 | 22.1 | 125 | 4.92 | 316 | 12.44 | 316 | 12.44 | T16 |
