| Prod Model: |
cat5e LSZH cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White, Gray, Black, Yellow, Brown |
| Insulation: |
PE(HDPE) |
| Jacket: |
PVC(Lszh) |
| Nominal Outer Diameter: |
5.2mm |
| Operating Temperature Installation: |
: 0~50/Operation: -30~+75 |
| Brand Name: |
OEM |
| Number Of Conductors: |
8 |
| Usage: |
Computer |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

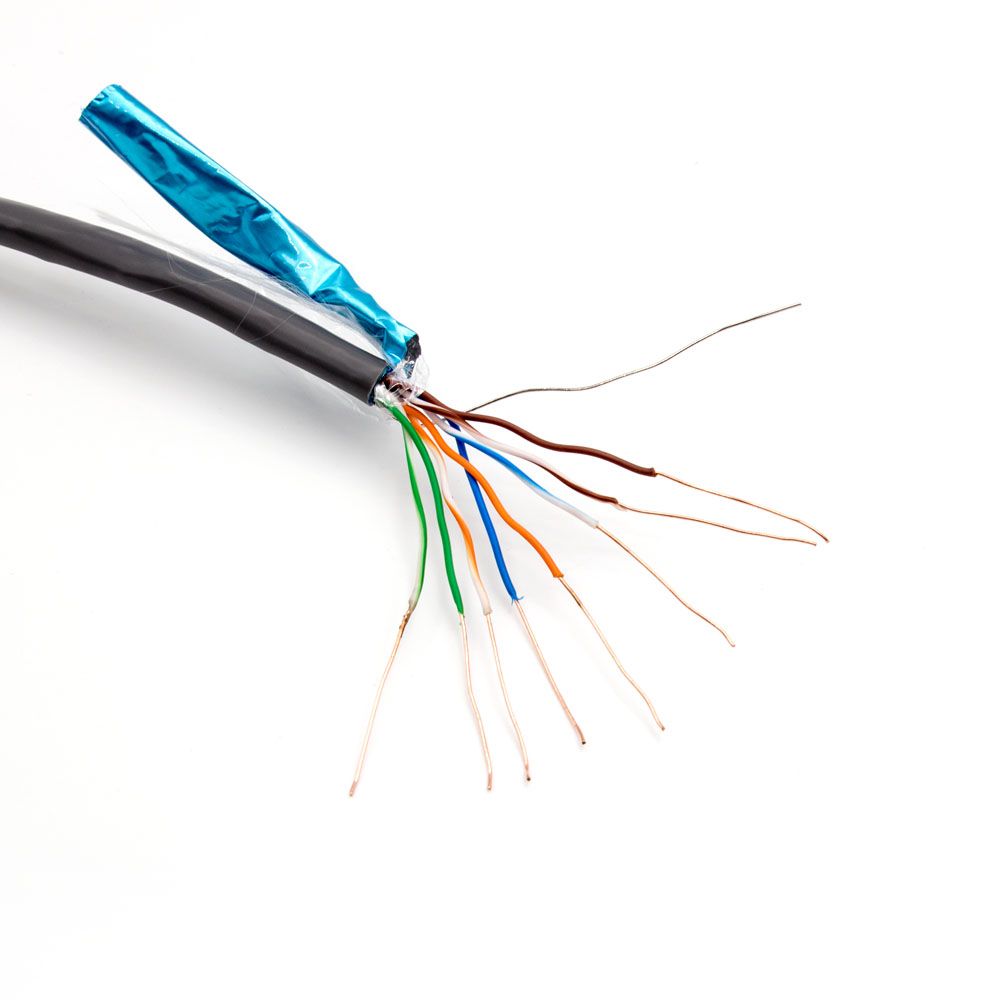

Cat5e cat6 LSZH cable
| Model | 24AWG FTP Cat5E Cable |
| Conductor Size | 24AWG |
| 0.51mm |
| Conductor Material | CCA/CCU/BC |
| Number Of Conductor | 4P |
| Shiled | UTP/FTP/STP/SFTP |
| Flammability Grade: | CMP,CMX,CM,CMG,MPG,CMR,MPR |
| Indoor / Outdoor | Single Jacket/Double Jacket |
| Insulation Material | PE,HDPE,LSZH PE |
| Insulation Thickness | 1.02Mm HDPE |
| Jacket Material | PVC, ROHS PVC, LSZH PVC |
| Outer Jacket Thickness | 1.02Mm PVC |
| DC Resistance(Max.) | 9.5 Ohm/100M |
| DC Resistance Imbalance | 2.50% |
| Working Capacitance(Max.) | 5.4Nf/100M |
| Insulation Resistance | 10000 MOhm.km |
| Transmission Velocity | 65% |
| Operating Temperation | -40 °C - +75 °C |
| PVC Jacket Color | As Client's Request. |
| Marking On Jacket | On your request (Print your brand) |
Cat5e Cable Packing
| Goods Name | Packing Type | Pack (Cm) | Packing | Dimension(Cm) | Unit.CBM | Qty/Container |
| Gift Box | Carton | Gift Box | Carton | L | W | H | 20GP | 40HQ |
| UTP Cat5e | Gift Box | 19*35*35 | 42*34*34.5 | 305M/Roll | 2Rolls/Carton | 42 | 34 | 34.5 | 0.049 | 1060 | 2774 |
| FTP/SFTP Cat5e | 21*35*35 | 45*40*40 | 305M/Roll | 2Rolls/ Carton | 45 | 40 | 40 | 0.072 | 722 | 1880 |
| Cat5e Outdoor | Wooden Reel | 32*32*22.5 | 66*35*24 | 305m/Reel | 2ReelS/Carton | 66 | 35 | 24 | 0.055 | 1000 | 2400 |
FAQ
* Whether these products quality assured ?

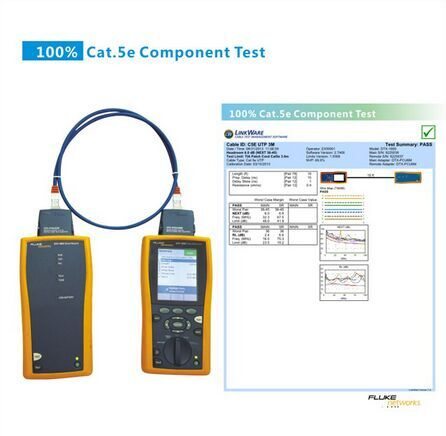

Our company wire harness are UL listed. Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.
* Do you offer free sample or not?
According to our company's rule,sample and freight cost need to be paid by your esteemed company. And we will return the sample cost to you when you place the first order with us. Thanks.
* When I want customized products, how to do?
We have Equipped with professional equipments, technicians & skilled empolyees, OEM & customized service is welcome. Drawings / samples are required. Of course, purchase quantity should meet our MOQ.
*If I want to purchase, how to pay ?
Generally we do T/T in 30% deposit before production,70% balance against faxing copy of B/L . Also payment terms are negotiable depending on customer's request.
*After I pay, what about the lead time and shipping method?
Goods can be delivered by by air express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as they wish.
As for the Lead time, 10~30 working days
Advantage:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your inquires in fluent English.
3. Distributorship are offered for your unique design and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
5.Strictly conform to CE,ROHS,ISO certificate
6.Quick delivery time(20ft,7~15days)
Shenzhen Taiyue Communication Cable Co., Ltd., is specialized in producing & exporting LAN cable for 10 years,
Our main products including:LAN cables, Patch cord, USB cables, power cords, computer cables, optical fiber cables, coaxial cables, etc.
With years of development, Taiyue has built up 3 factories, 2 shops and 2 branch office, and has built up good relationship with numerous famous enterprises in domestic and aboard, Our products are selling well among Europe, America, Asia, Australia, Egyptian and other countries.
Our factory is located in Guangzhou, China, which covers more than 8, 000 square meters with more than 200 energetic staff.By taking advantage of the latest technology in domestic and overseas fields, and combining our professional manufacturing experience, Taiyue has been an entity with large-scale production ability.
The ever-pioneering TAIYUE people has set up the solid philosophy "promote and innovate, quality-oriented, win competition by quality, set up PULI brand", in order to detect the future trend of information intellectualization with our unique expertise in the industry.Based in Guangdong, with vision toward the market covering China and the world, cherishing confidence and releasing enthusiasm, we will make up our way to a glorious future.
