| Prod Model: |
HSYVP5e |
| Frequency: |
4-100 MHz |
| Attenuation: |
4.1-22 dB/100m |
| Phase Delay: |
538-552 Ns/100m |
| Export Market: |
Europe, Middle East, South-East Asia, Africa etc. |
| Cable Standard: |
IEC61156, ISO11081, Yd/T1019, UL444 |
| Application: |
Network |
| Material: |
Copper |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Feature: |
Moisture-Proof, UV-Proof |
| Color: |
Gray |

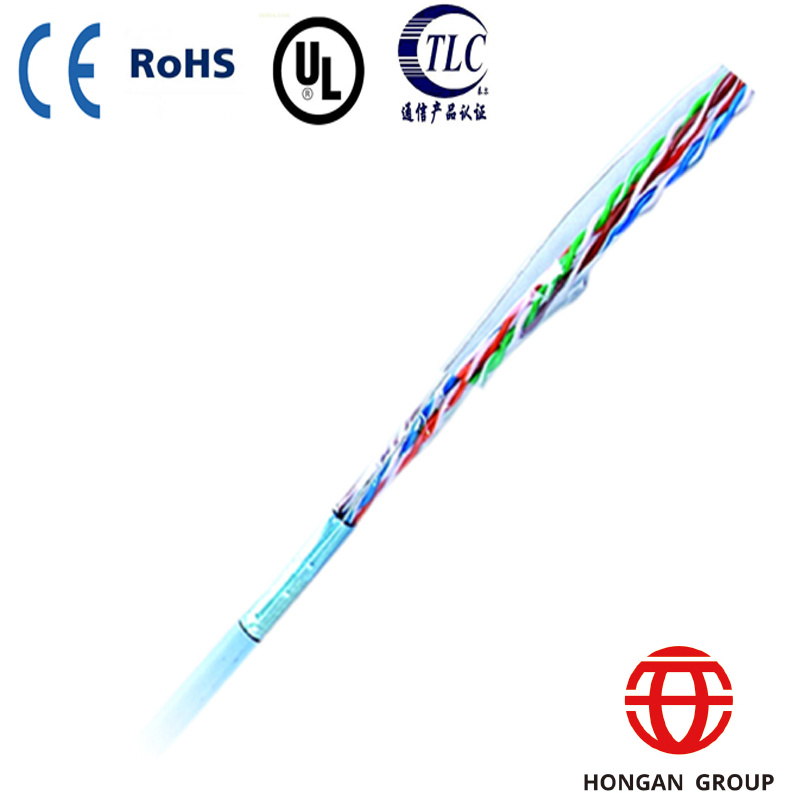

Product Description
Product Description:- Characteristics of product:
1.More bandwidth excess than 100MHz standard required;
2.Comply with ROHS standard;
3.Shielding performance,effectively prevent the inferference and external signals.
4.PE outer sheath,moisture-proof,ultraviolet-proof.
5.The products of special outer sheath or purpose (such as anti-rodent cable) can be designed according to customer's demands.
-Product Applications:
1.10 Base -T
2.100 Base-T4
3.100 Base -TX
4.100 Base-VG-ANYLAN
5.155 Mbps ATM
6.622 Mbps ATM
7.1000 Base-T
-Material instruction:
1.Conductor: Single strands of pure copper.
2.Insulation:Solid HDPE or Skin-Foam-Skin PE;
3.Sheath:Environment Friendly PVC or Flame Resistance PE or Low Smoke Zero Halogen Polyolefin(LSZHP).
4.Shield: Single plastic coated aluminum foil shielded.
5.Drainage wire: Tinned copper wire.
6. Wrapping tape: Polyester tape.
-Physical Electrical Characteristics:
1.D.C resistance (max):9.5Ω/100m at 20ºC;
2.Mutual capacitance(max):5.6nF/100m;
3.Dielectric strength between conductors(min):2.5KV/2s;
4.Impedance:1-100MHz 100+/- 15Ω;
5.Differential phase delay(max):30ns/100m;
6.Installation tempetature:-20ºC-+60ºC
7.Permitted bend radius:Over 8 times diameter of the cable. | Transmission Performance |
| Frequency(MHz) | Attenuation(Max)(dB/100m) | Next(Min) (dB/100m) | Elfext(Min)(dB/100m) | RL (Min)(dB) | Phase Velocity(Min)(m/s) | Phase delay(Max)(ns/100m) |
| 4 | 4.1 | 54 | 49 | 18.8 | 0.604c | 552 |
| 10 | 6.5 | 48 | 41 | 20 | 0.612c | 545 |
| 16 | 8.2 | 45 | 37 | 20 | 0.614c | 543 |
| 20 | 9.3 | 43 | 35 | 20 | 0.615c | 542 |
| 31.25 | 11.7 | 40 | 31 | 18.6 | 0.617c | 540 |
| 62.5 | 17.0 | 36 | 25 | 16.5 | 0.619c | 539 |
| 100 | 22.0 | 33 | 21 | 15.1 | 0.620c | 538 |

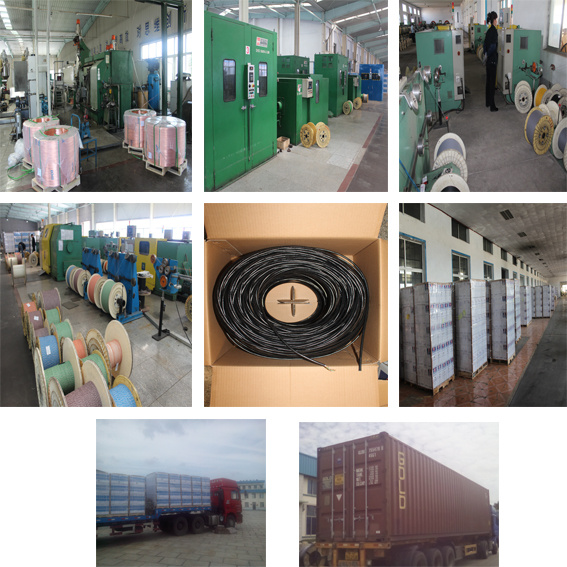

Advanced Production Line:

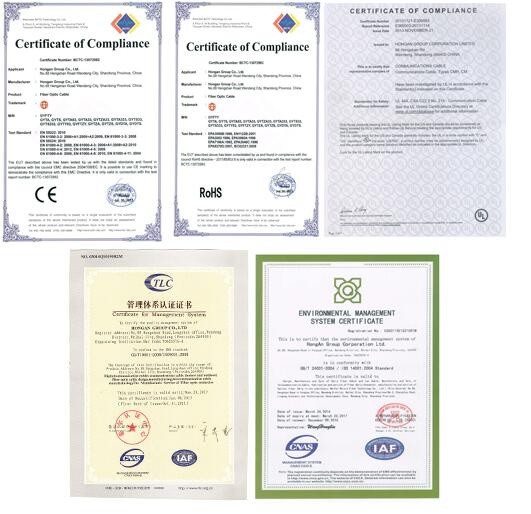

CertificationS:
Company Information:HONGAN GROUP is China TOP 10 cables manufacturer. Specialized produce optical fiber cable, network data cable and multi pair telephone cables more than 30 years. And also EPON , GPON, Data center Solutions and Equipments.
Products had passed ISO9001 ,ISO14001 and OHSAS18001. And meet the requirements of CE,RoHS ,TLC and UL. Shipped to Thailand, Cambodia ,Burma,Vietnam,Laos,Europe,Africa and so on. More than twenty countries.Our customers:
FAQ-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!
-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.Hongan Group --your faithful friend! Best regards: David Li
Phone:+8613563191771 Tel: +86-631-8088621
Web: http://en.hongan.com.cn/

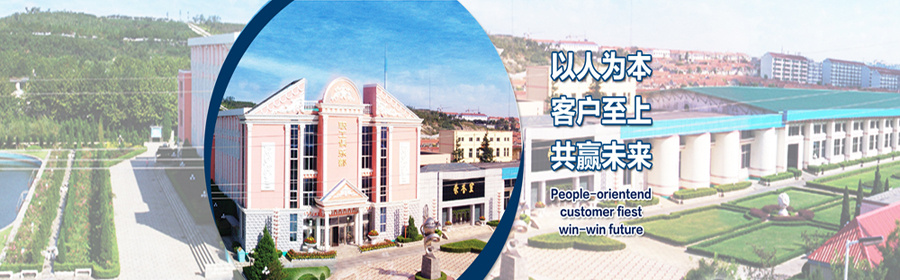

Hongan Group Co., Ltd, which locates at Wendeng city of Shandong peninsula, establised in 1985. It has 1500 employees and total assets is over 1.5 billion RMB yuan. It covers an area of 2 million square meters, construction area is 0.6 million square meters. Main products are optical fiber cables, data cables, communications cables etc. Its yearly productive capabilities are 4 million core kilometers, 0.5 million boxes, and 6 million pair kilometers respectively. It is now one of largest production, research and development, sales companies in China. It has 8 branches, such as Hongan Optical Fiber Cables, Hongan Data Cables, Hongan municipal Cables etc, provincial enterprise technology development center and post-doctor scientific research workstation.
Hongan optical fiber cable company has always stood on high starting point, high technology and high standard since it was founded. Production capacity is 50 million core kilometers. Respectively imported the world's advanced level of fiber optic cable production, testing equipment from Switzerland, United States, Japan and other countries. By technical exchange and cooperation with foreign countries, Hongan group has always stand in the forefront in the field of optical fiber manufacturing field.
Advanced equipment is the basic guarantee for the top quality products. Hongan group has invested $35 million and imported 22 sets advanced production lines of photoelectric communication cable and matched monitoring and control equipments and instruments, which imported from the United States, Japan and European Unions. Production capacity is 6 million pair kilometers. Products percent of pass is up to 99.9999%.
