| Prod Model: |
12 colors SC/APC pigtails |
| Fiber: |
Single Mode G.652D |
| Fiber Diameter: |
0.9mm |
| Connector: |
Sc/APC; Sc/APC or Others Optional |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Sheath Material: |
LSZH |
Product Description

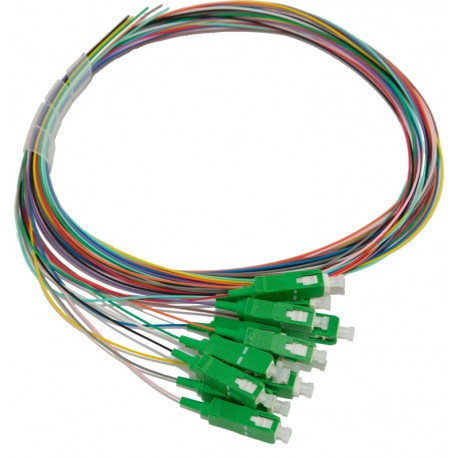

FTTH 12 Colors SC/APC SC/UPC Multi Fiber Cable Pigtails
Descriptions

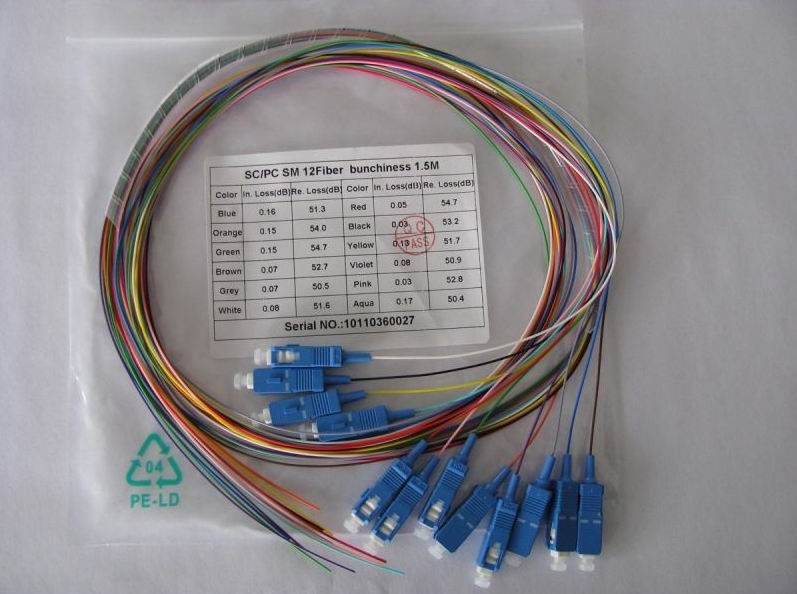

We supply SC/UPC Single mode 12 Pack Multi Color Fiber Optic Pigtails, The end of the pigtail is stripped and fusion spliced to a single fiber of a multi-fiber trunk to break out the multi-fiber cable into its component fibers for connection to the end equipment.
Fan-out Multi-pigtails the typical use is to link the fiber optic cable with fiber optic equipment, the fiber optic pigtail with connector side is used to link the equipment, while the other side of the pigtail is melted together with the fiber cable, by melting together the fiber glasses, and it can reach a minimum insertion loss. Common types of fiber optic pigtails are usually with 0.9mm fiber cable diameter, and usually installed inside ODF unit. Most commonly used types are SC fiber optic pigtail, ST fiber optic pigtail, FC fiber optic pigtail, LC fiber optic pigtail, MT-RJ fiber optic pigtail, SC/APC fiber optic pigtail, and FC/APC fiber optic pigtail and E2000 fiber optic pigtail.
Features
High precision LC connector series with competitive pricing
Provide high density mounting in any optical equipment
Excellent optical performance
Available for both SM, MM, simplex and duplex
0.9mm, 2.0mm, 3.0mm cable diameter option
Applications
Telecommunication
Testing equipment
Long-haul telecommunication
LAN system
CATV systems
Specifications
| Types | Single mode | Multi mode |
| Diameter (mm) | Ф0.9, Ф2.0, Ф3.0 |
| Fiber cable | SM G652.D | MM 50/125um or 62.5/125um |
| Operating Wavelength | 1310, 1550nm | 850nm, 1300nm |
| Insertion Loss (dB) | ≤ 0.2 (PC)
≤ 0.2 (UPC)
≤ 0.3 (APC) | ≤ 0.3 (PC)
≤ 0.3 (UPC) |
| Return Loss (dB) | >= 45 (PC)
>= 50 (UPC)
>= 60 (APC) | >= 35 (PC)
>= 40 (UPC) |
| Exchangeability | ≤ 0.2 dB |
| Repeatability | ≤ 0.2 dB |
| Operating Temperature | -40 to +75 ºC |
| Storage Temperature | -40 to +85 ºC |
Our patch cord production line:
Shipping
Service:
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 9 years experience in this field. We are the prefessional supplier that you can trust.
FAQ
Q1:How can you guarantee the delivery time?
A:1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience.
2. We can regulate the penalty clause in the contract for the late delay.
Q2:What's your best price?
A:Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
Q3:What's your MOQ?
A:Low MOQ, 1pc for sample checking is available
Q4:Can I print our own logo on the product?
A:Yes, Please send your logo to us.
Q5:Can you provide OEM/ODM service?
A:Yes, we can. Please tell us the details of your requirements
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q7:Why choose us to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.
Fiberlink Looks forwards to Long-Term&Win-Win business with customers.
We welcome your inquiry!!!
