| Prod Model: |
Fiber Optic Patchcord |
| Business Type: |
Manufacturer |
| Fiber Type: |
G652D, G655, G657 |
| Polishing: |
PC, Upc, APC |
| Core Number: |
Simplex, Duplex, Qurd |
| Payment Terms: |
Tt/Paypal/LC |
| Operating Temperature: |
-40c~+80c |
| Cable Length: |
1m.3m.5m or Customized |
| Fiber Mode: |
Single Mode or Multi-Mode |
| Cable Diameter: |
0.9mm, 2.0mm, 3.0mm |
| Operation Wavelenghth(Nm): |
1310/1550nm |
| Application: |
FTTH, FTTB, LAN, CATV |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
LC/St/Sc/FC |
| Brand: |
Takfly/OEM/Neutral |
| Sheath Material: |
PVC, LSZH, Ofnp |
Product Description

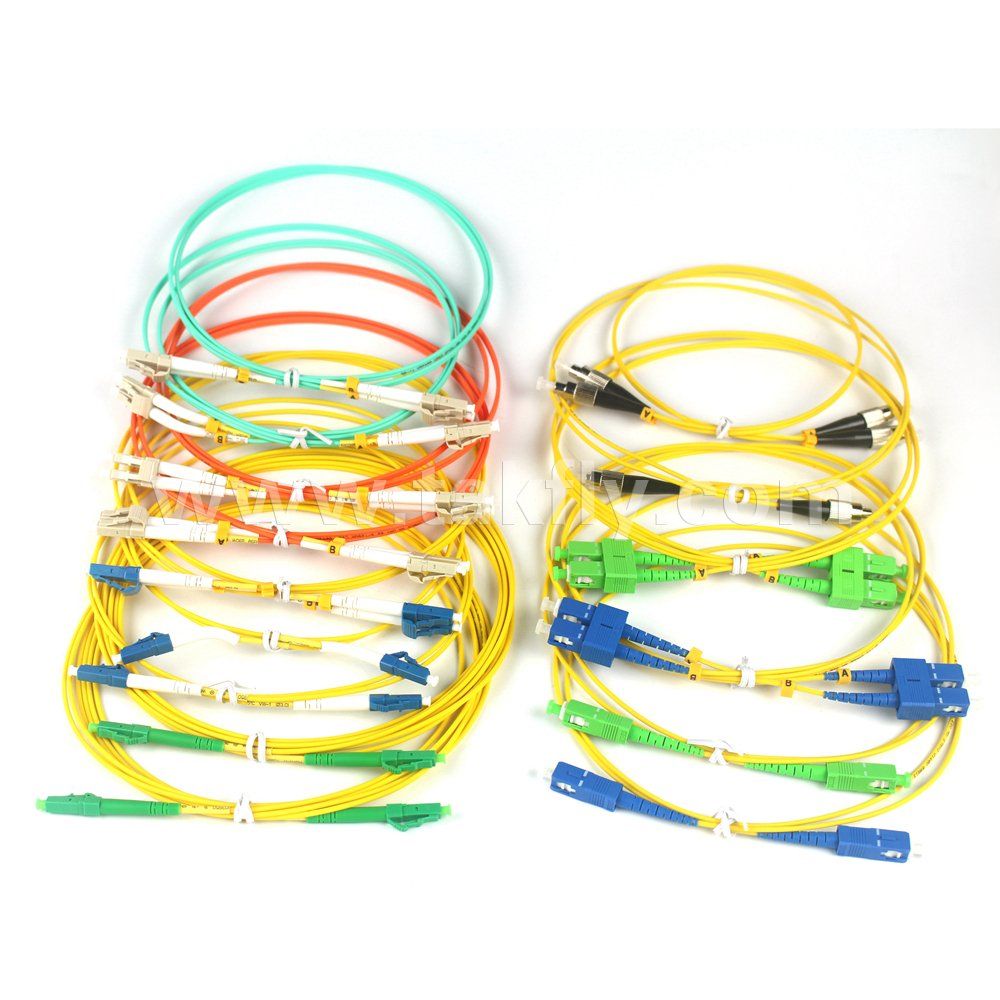

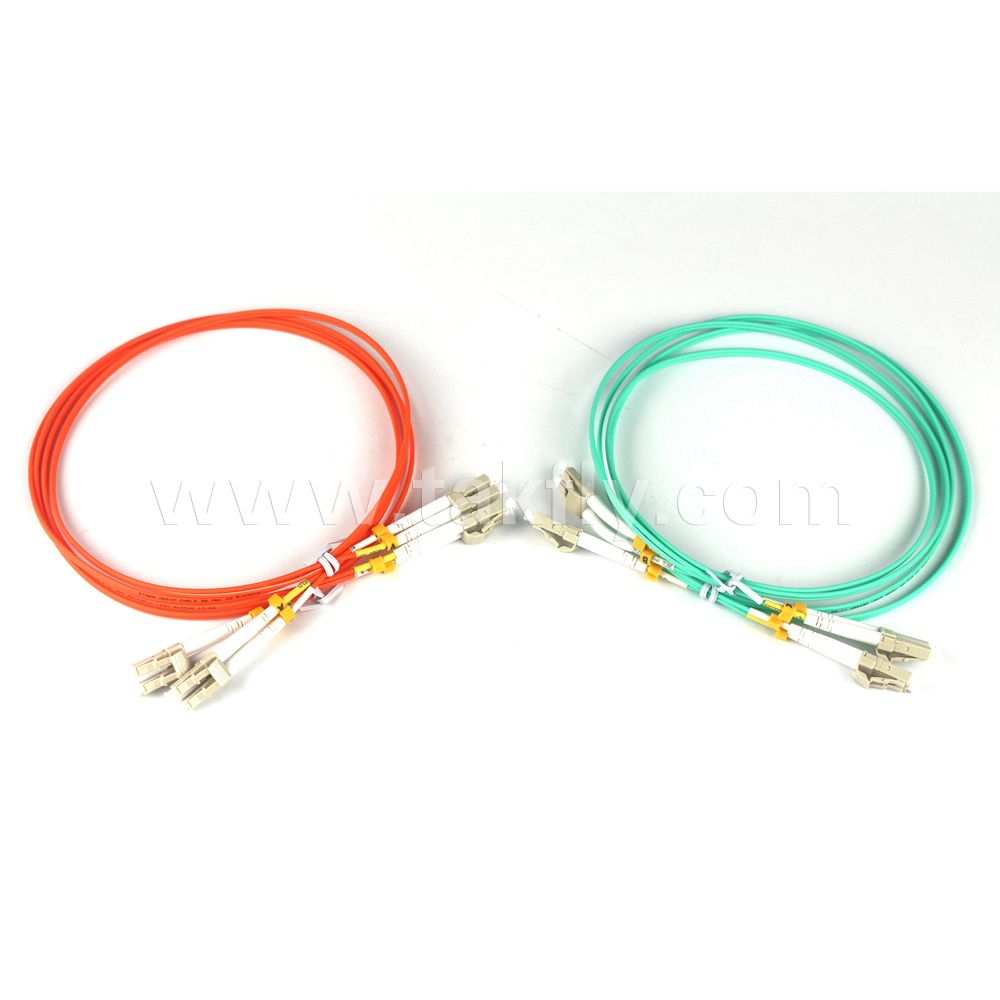

FTTH 0.15dB LC/ST/SC/FC Fiber Optic Patchcord
Features1. Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard.
2.Connector type standard: IEC61574 series
3.Low Insertion Loss : IEC 61300-3-4, IL≤0.20dB
4.High Return Loss :IEC61300-3-6; RL≥60dB
5.Flammability:IEC60332-1
6.Repeat Plug feature is good, good interchangeability
7. Ceramic Ferrule, high-density docking, concentricity ≤0.5
8. Can provide general PVC or LSZH cable cable
Application1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
Specification| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
Order Information| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H04 | 1.SM Simplex
2.MM Simplex
3.APC Simplex
4.SM Duplex
5.MM Duplex
6.APC Duplex | 1. 0.9
2. 2.0
3. 3.0
| 1.9/125
2.OM3
3.50/125
4.62.5/125 | 1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH | 1.Blue
2.Beige
3. Green
4.Black
5.Blue and Yellow
6.Red and Black
|
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Packaging
1. All products will be packed in double corrugated carton , so the product can get effective protection to avoid damage.2. Packaging according to customer requirement Shipping
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.3. You can choose your own shipping agent, we will provide good cooperation for it. After-Sales Service
1. TAKFLY can provide detail documents and remote help for device installation and configuration.
2. Warranty: 2 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. TAKFLY promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.

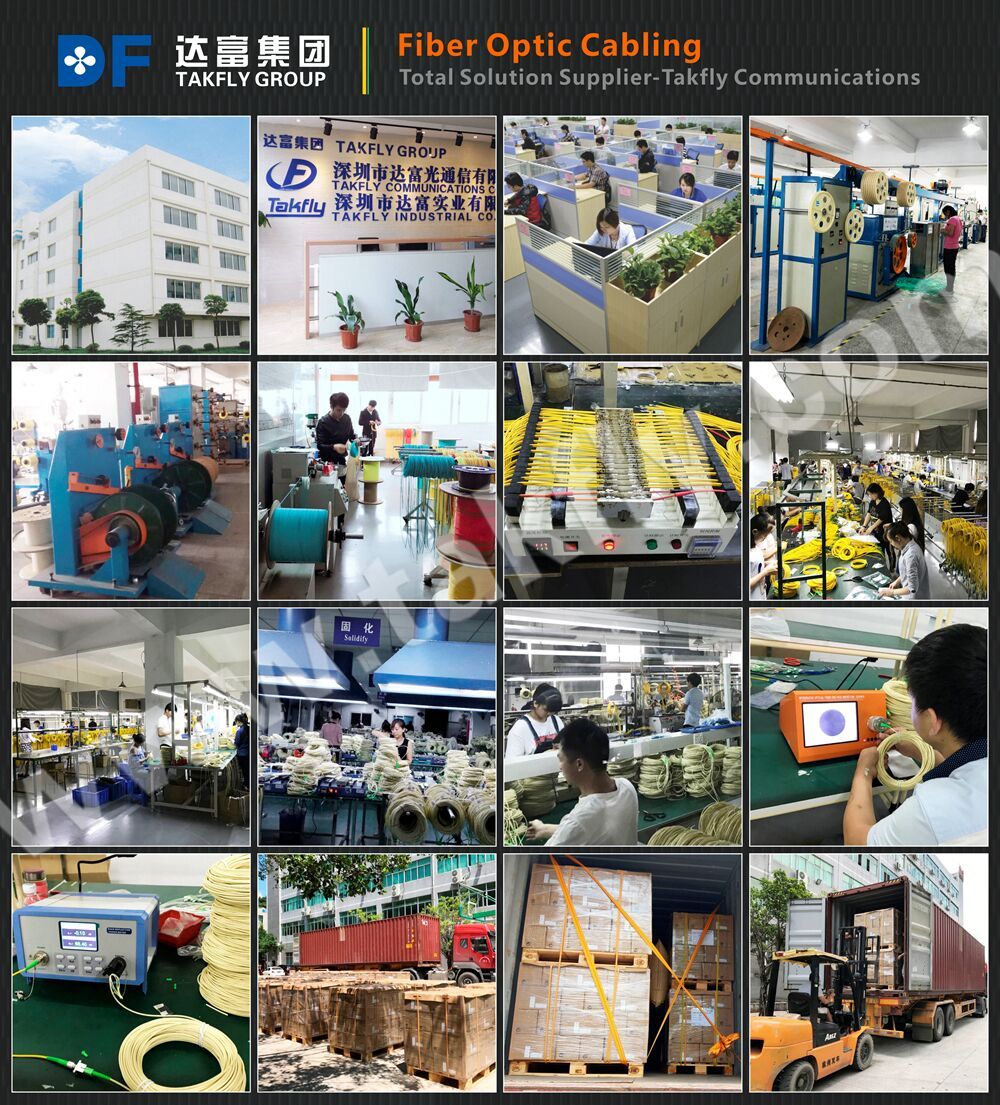

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
