| Prod Model: |
GJXH |
| Jacket: |
LSZH |
| Strength Member: |
Steel |
| Color: |
Black |
| Tension Long Term: |
100n |
| Tension Short Term: |
200n |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Sheath Material: |
LSZH |
Product Description

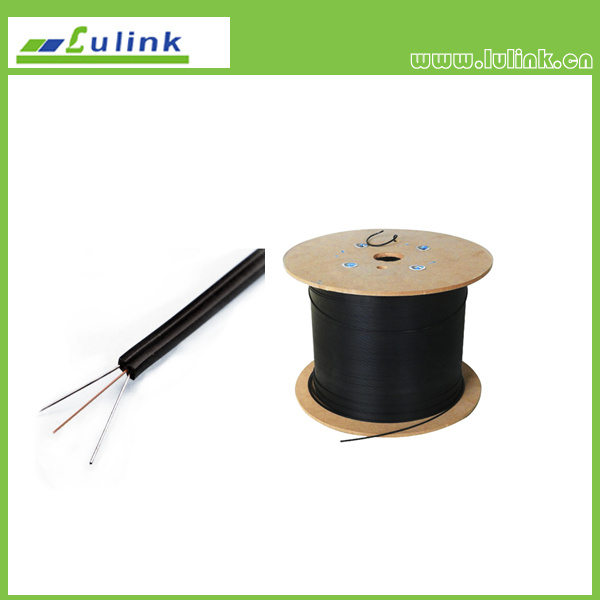

Indoor fiber optic 2 Core Drop Cable "QUALITY IS OUR CULTURE"Specifications:| No. | Items | Unit | Specification |
| G.652D |
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 |
| 2 | Cladding Diameter | μm | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | /Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
| 1550nm | dB/km | ≤0.3 |
CableParameters| Items | Specifications |
| Fiber Count | 2 |
Colored Coating Fiber | Dimension | 250μm±15μm |
| Color | Blue,Orange |

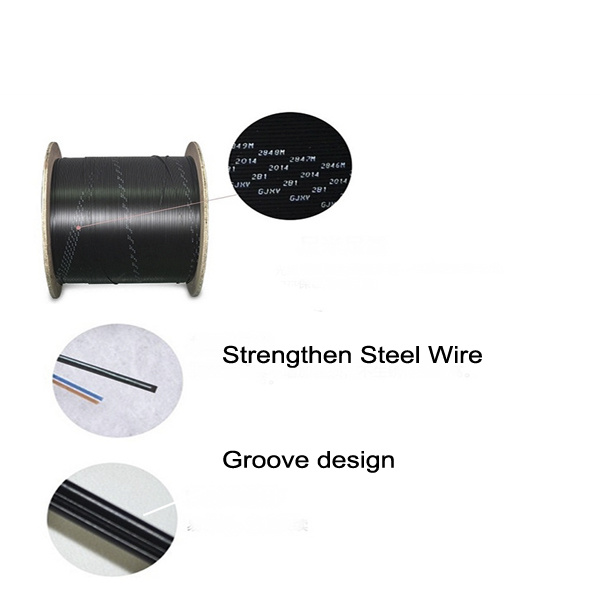

Stregth Member | Dimension | 0.45mm |
| Material | |
Jacket | imension | 3.0±0.1mm×2.0±0.1mm |
| Material | LSZH |
| Color | Black |
Mechanical and Environmental Characteristics| Items | Unite | Specifications |
| Tension(Long Term) | N | 100 |
| Tension(Short Term) | N | 200 |
| Crush(Long Term) | N/10cm | 1000 |
| Crush(Short Term) | N/10cm | 2200 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ºC | -20~+60 |
| Operating Temperature | ºC | -40~+70 |
| Storage Temperature | ºC | -40~+70 |

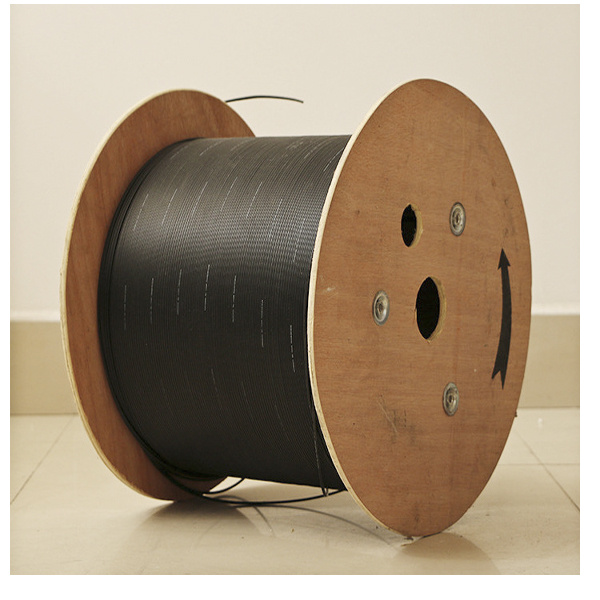

Pictures
Company information:Lulink Technology, whose full name is Lulink Electronics Technology Co., Ltd, build on the year of 2001, initially as a leading network communication product supplier, engaged in connecting every corner of the world via the network in the most convenient manner and enriching people's life.
Now Lulink became one of Group company focus on the development, production, sales and service of Telecommunication products. The Factory base location on Hangzhou City, The office and Research central on Guang zhou ,Dong guan and Shen zhen, which have hundreds staffs, and the capital asserts reach dozens of million RMB.
Luink's set up based on the market demands and strong requests of loyal customers to Lulink products. Now, our main products containF Five parts: Networking cabling system, Fiber optic system ,Cable assembly, Smart Home system and solor system , thus a product diversification development pattern formed.
Lulink Will do more on the market research, Humanistic product design, professional service improvement, We expect to develop and make progress together with you while us continuously perfect and surpass ourselves. Let us work together to create a better and more brilliant future!
Certification:
Advantage:
1.Support sample for quality checking before order.

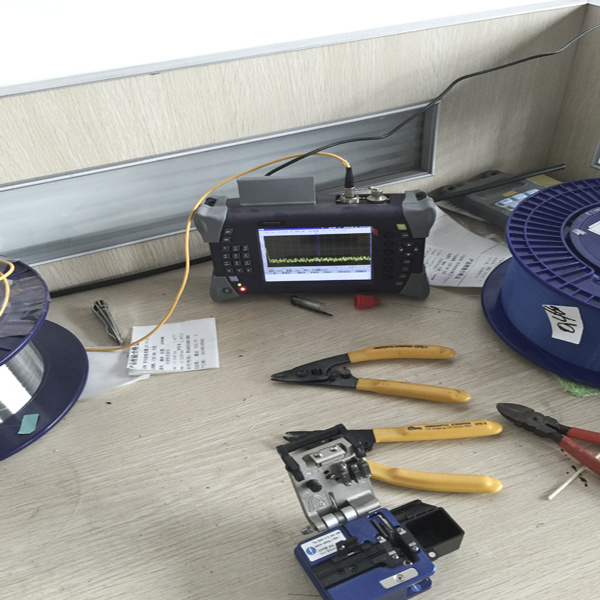

2.Laboratory Emtek for test.
3.Professional technical team for all problem solving.
4.Tender bidding technical supoort.
5.Fast response time.
6.Fast deliver time.
