FTTH 50mm Sc APC Upc Fiber Optic Fast Connector

Name: FTTH 50mm Sc APC Upc Fiber Optic Fast Connector
Brand: all-electronics-online.com
SKU: 815231205
Availability: InStock
Rating: 4.7 (59 reviews)

Price:	US $ 0.1-5/Piece
Min Order:	10/Piece
Pay Type:	T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC fast connector
Item Name:	60mm Sc Fast Connector
Keywords:	Sc Fast Connector/Quick Connector
Polish Interface:	PC/Upc/APC
Length:	50mm,60mm
Installation:	FTTH Drop Cable
Insert Loss:	<0.3dB
Customized:	Available
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)

Product Description

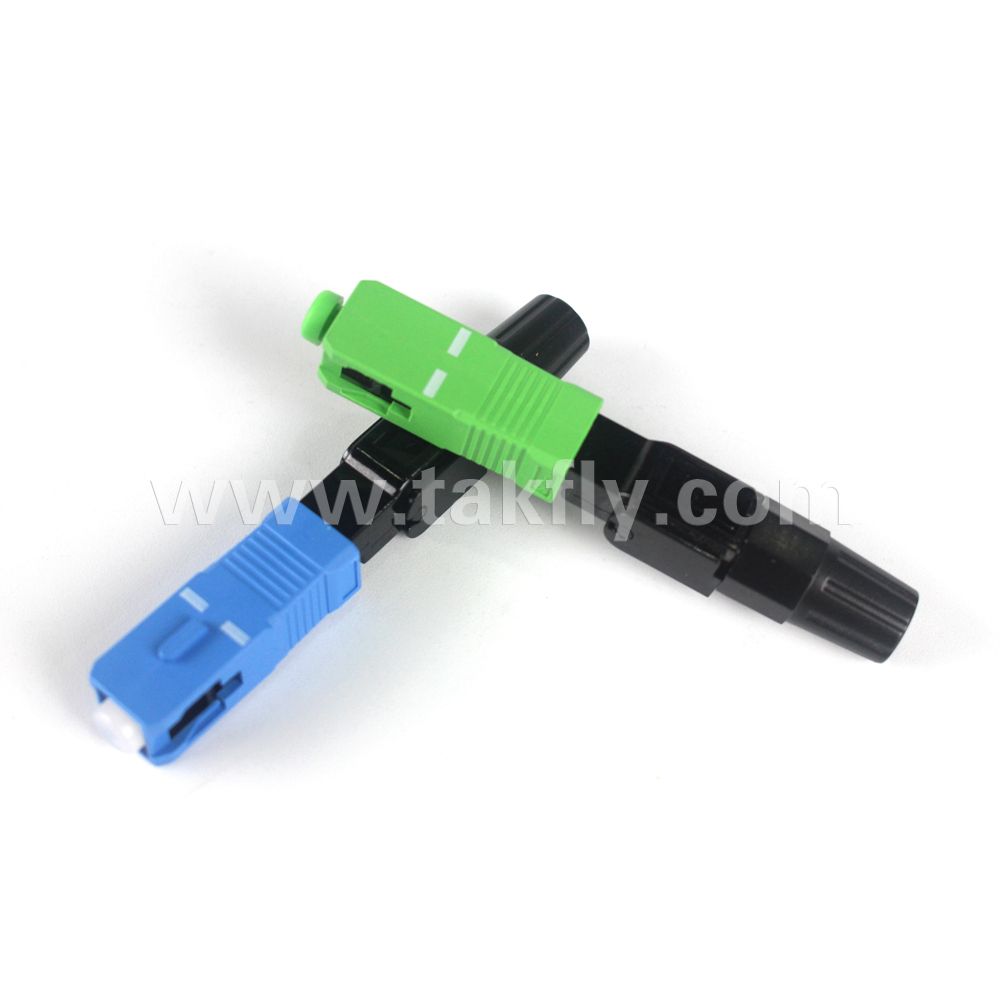

Ftth 50mm Sc APC Upc Fiber Optic Fast Connector

Fiber optic SC APC fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high eddiciency for installation, the structure of crimping position is a unique design.

Features
1.Price-Competitive
2.Low Insertion Loss
3.Factory-terminated and Tested
4.Fiber Options: G.652
5.Connector Options: FC/SC/LC/ST
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules

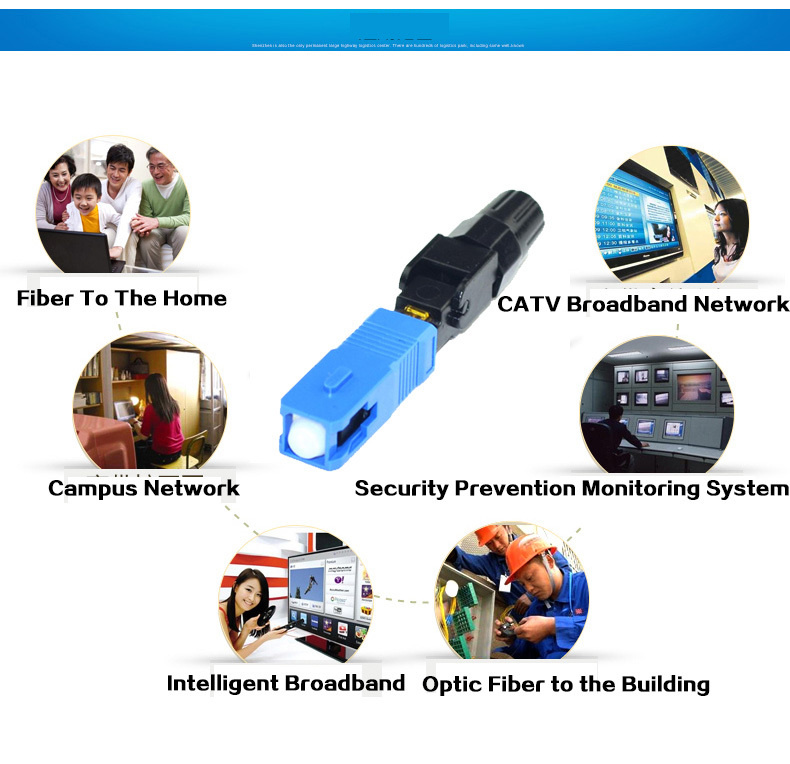

Applications
1.Access Network
2.Telecom/CATV Systems
3.FTTx

SC APC Fast Connector Spec

Item	SC/APC SC/UPC
Applicable Cable	P3 X 2 Rubber-insulated wire	Φ3.0 Fiber
Fiber Diameter	125μm	125μm
Coating Diameter	250μm	250μm
Fiber Mode	SM OR MM	SM OR MM
Installation Time	≤40S	≤40S
Construction Site Installation Rate	≥99%	≥99%
Insertion Loss	≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm)	≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm)
Return Loss	45dB(average 50dB)	45dB(average 50dB)
Tensile Strength	>30	>20
Working Temperature	-40°C~+70 °C	-40°C~+70 °C
Reusability	≥50	≥50
Normal Life	30 years	30 years

Our services
Order inquiry: Keep working time from 8 AM to 23 PM to gurantee the first reply
to clients,and 24 hours no Cellphone power off
Order production: Keep very close touch with production department to gurantee the right delivery time to clients
Before shipment: Our sales would double check the order quantity,package and strength of cartons to avoid lost and damage
After shipment: Keep tracking shipping status and reporting to clients
Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR

Any question about SC APC Fast Connector,please leave me an inquiry or contact me directly.
