| Prod Model: |
TK-96-001 |
| Business Type: |
Manufacturer |
| Cable Color: |
Yellow Color or Customized |
| Length: |
2km |
| Packing: |
2km in a Reel, One Reel in a Carton |
| Customized: |
Available |
| Fiber Type: |
G652D, G657A1, G657A2,Om1,Om2,Om3,Om4 |
| Material: |
PVC/LSZH/Ofnp/Ofnr |
| Installation Loading: |
1320n |
| Crush Resistance: |
1000n/100mm |
| Used For: |
FTTX/FTTH |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
CCC |
| Brand: |
Df/Takfly/OEM/ODM |
| Sheath Material: |
PVC/LSZH/Ofnp/Ofnr |
Product Description

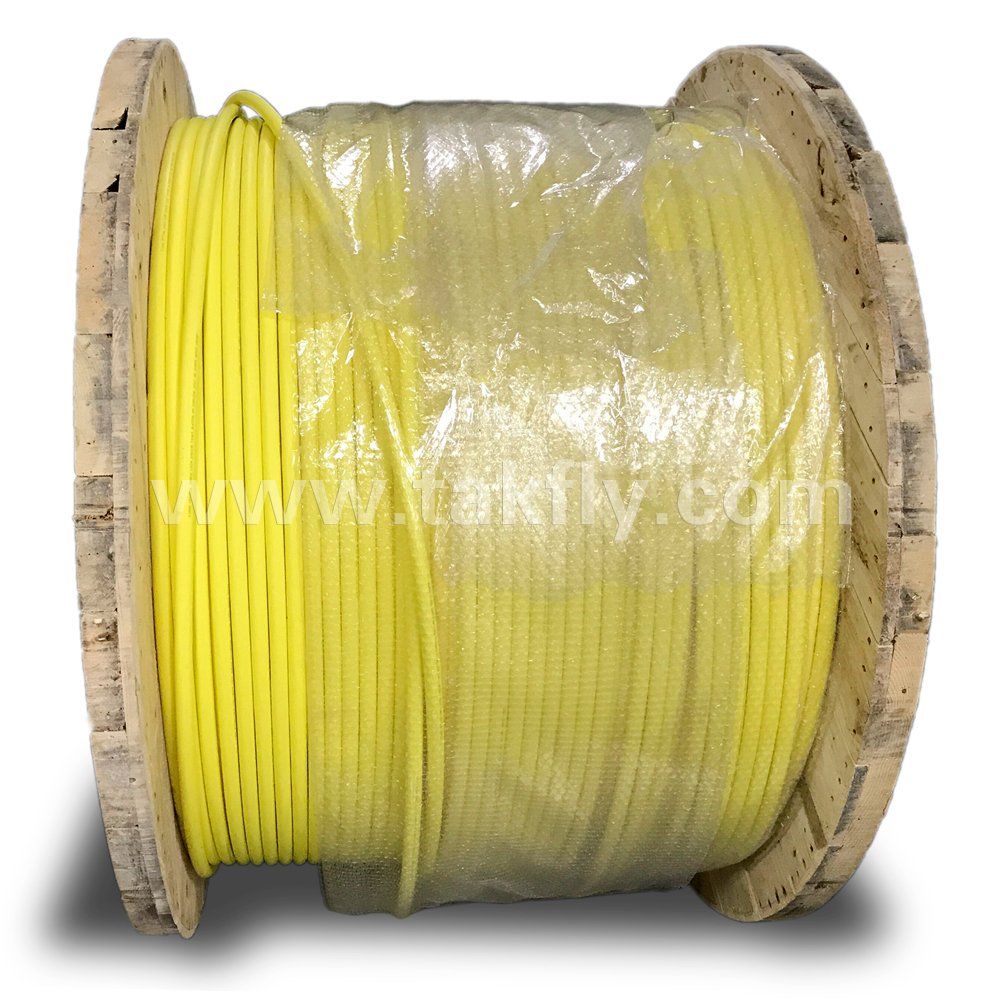

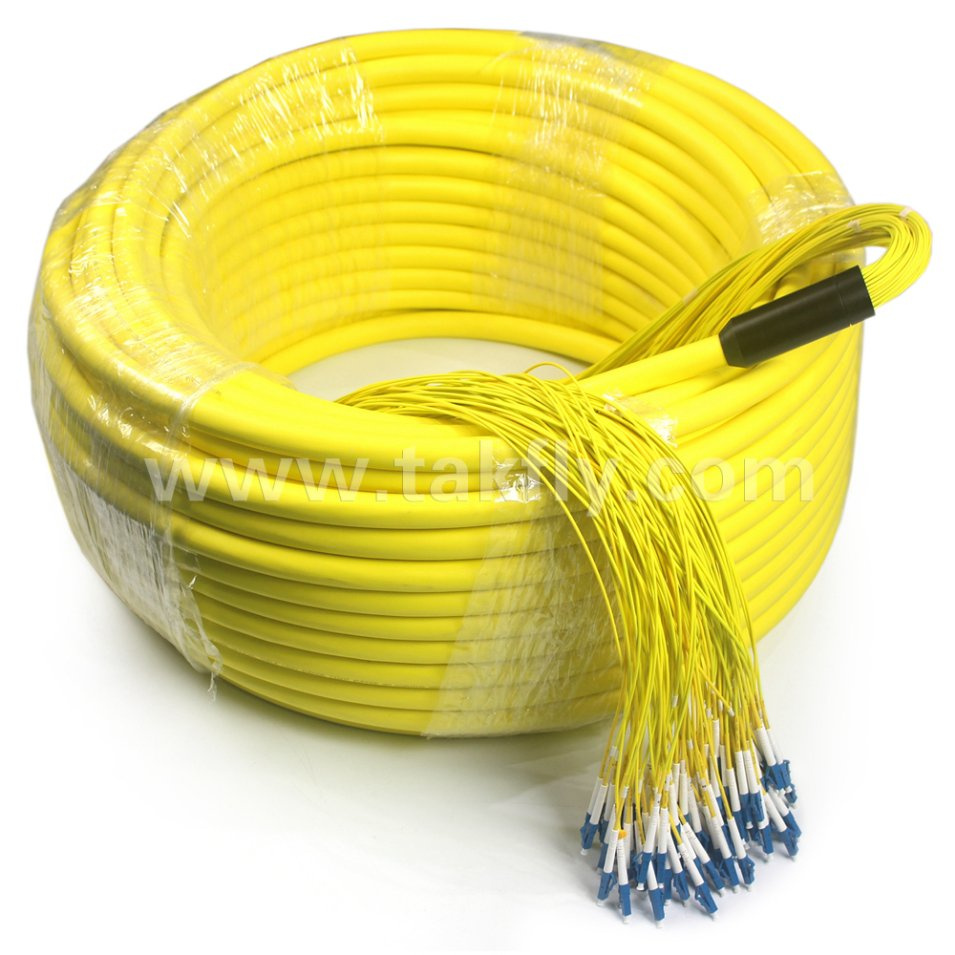

FTTH 96 Cores Loose Tube Distribution Fiber Optic Fan out Pigtail
Distribution Tight Buffer Optical Cable use 48~144 core 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of aramid yarn as strength member, then completed with a layer of PVC or LSZH material as out jacket. Product Model:GJFJVThe cable fulfils the fire performance test of IEC332-1. Features1. Multi cable design.2. Multi cable with independent strength member.3. Non-metal central strength member.4. Fiber Counl:12~144 Applicaton1. Connected to connectors of various models interconnect.2. Ceiling laying surface laying etc.3. Indoor level and vertical laying.4. Backbone in LAN's5. Indoor /outdoor in ducts6. Internal wiring/Fan-outs Construction Data | Loose Tube fiber Diameter | 900±50µm |
| Loose Tube fiber color | 1. White | .
2. Blue | 3. Orange | 4. Green | 5. Brown | 6. Grey |
| 7.Red | 8. Black | 9. Yellow | 10. Violet | 11. Pink | 12. Aqual |
|
| Core reinforce | Aramid yarn |
| Subunit color code | The units have sequential numbering printed on the surface for identification |
| Central strength member | All dielectric |
| Out jacket material | LSZH |
Technical Data-Physical| Fiber count | 48 | 60 | 72 | 96 | 108 | 144 |
| Cable diameter(mm) | 14.8±0.5 | 16.1±0.5 | 17.5±0.5 | 20.7±0.5 | 22.3±0.5 | 24.8±0.5 |
| Cable weight(kg/km) | appro. | appro. | appro. | appro. | appro. | appro. |
| 170 | 207 | 254 | 366 | 432 | 451 |
| Temperature rating | |
| Operation | -20ºC ~+60ºC |
| Storage | -20ºC ~+60ºC |
Technical Data-MechanicalMax. loading(IEC794-1) Installation
Operation |
1320N
400N |
Min bend radius(IEC794-1) Installation (mm)
Operation (mm) |
20×D
10×D |
| Crush resistance(IEC794-1) | 1000N/100mm |
Technical Data-Transmission
Fiber type |
Attenuation |
OFL
bandwidth |
Effective modal bandwidth |
10 Gigabit Ethernet SX |
Min bend radius |
Conditions | 1310/1550nm | 850/1300nm | 850/1300n
m |
850nm |
850nm |
/ |
| Typical | Maximum | Typical | Maximum |
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| 50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
| 62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
| BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 |
| BI-OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 7.5 |
4 Select Corning fiber typeB1.3=G652DB6A1=G657A1B6A2=G657A2A1=50/125µmA1b=62.5/125µmM3=Maxband 300(OM3)M5=Maxband 550(OM4)BIM3=Bend InsensitiveMaxband OM3BIM5= Bend Insensitive
