FTTH Cable 24 Core Optical Fiber Cable for Outdoor Use
| Price: |
US $ 0.25-0.5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
optical fiber cable |
| Name: |
Direct Buried Optical Fiber Cable |
| Insulation Material: |
PE |
| Conductor Material: |
Optical Fiber |
| Number Of Conductor: |
2--288 |
| Conductor Type: |
Solid |
| Outer Sheath: |
PE |
| The Way: |
Direct Buried |
| Operating Temperature: |
-40--60 |
| Connection Structure: |
FC-MTRJ |
| Type: |
>10 |
| Application: |
Fiber Optic Cable, Overhead |
| Certification: |
RoHS\ETL\ISO\Ce |
Product Description

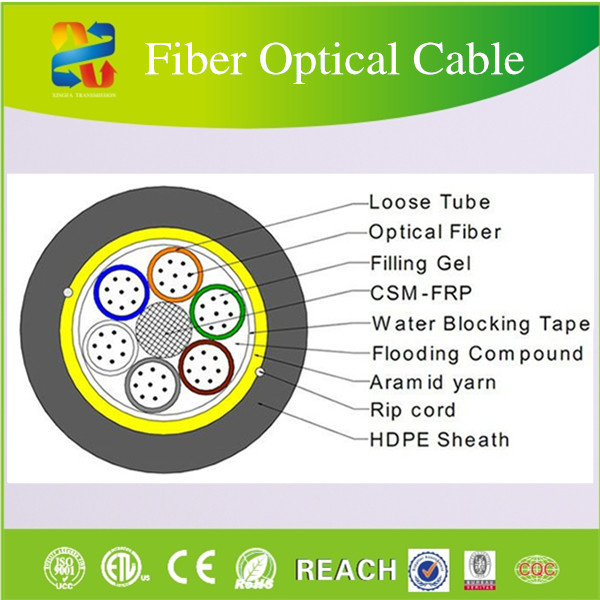

Made in China hot selling fiber optical cable ADSS with facatory price1. Description of Product: In the structure of Model GYXTW optical cable,the single mode or multimode optical fibers are jacketed by loose tube and the tube is made of high modulus polyester.Inside the tube,it is full of waterproof filling compound,in which no elemental hydrogen could be detected. Outside the loose tube,it is wrapped longitudinally by a layer of both sides plastic coated ripple steeltape and the waterproof material between th steel tape and loose tube is used to ensure compact optical cable structure and longitudinal waterproof.There are two parallel steel wires on the two sides of the loose tube and they are sheathed by corrugated steel and PE to form an optical cable.
2. Features of product:
The loose tube material itself has perfect hydrolysis resistance and high strength.
Two parallel steel wires ensure high tensile strength of optical cable.
The medium density PE sheath features perfect mechanical tensile strength, weatherproof,abrasive resistance and good environmental stress cracking performance.
It is convenient in construction as its small diameter,light weight and perfect performance-price ratio.
Two armored steel tape ensure high pressure and corrosive resistance.
3. Specification:Application:
Adopted to Outdoor distribution.
Adopted to trunk power transmission system.
access network and local network in high
electromagnetic interfering places.
Characteristics:
Non-metal strength member.
Filler protect loose tuber fiber.
Non-metal strength has an excellent anti-electromagnet ability.
Fiber number | Max. fiber number per tube | Total unit number (LT + FR) | Sheath thickness (nominal*) | Outer diameter (nominal**) | Weight (approx.) |
mm | mm | kg/km |
24 | 6 | 6(4LT+2FR) | 1.8 | 11.0 | 95 |
Data information: | | | | | |
Type of Optical Cable | Attenuation @ 20°C (dB/km) | Typical bandwidth |
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm |
A1.a 50/125um | | | ≤0.36 | ≤0.22 | | |
B1.1 9/125um | ≤3.0 | ≤1.0 | | | ≥500 | ≥1000 |
A1.b 62.5/125um | ≤3.0 | ≤1.0 | | | ≥200 | ≥600 |
Technical parameters: | | | | | |
Number of Core | Diameter | Weight | Max.tensile strength | Max.crush pressure | Temperature |
2-12 | (mm) | (kg/km) | Long/short term(N) | Long/short term(N/10cm) | Using temperature |
12.5 | 160 | 1000/3000 | 1000/3000 | -40°C~70°C |
Cable and Wires GYTY53
Mentalic free fiber cable, Non-metal strength member, loose tube stranded type, gel filled, PSP- Polyethylene(PE) sheath.
Fibre Cable
Fiber
count | Nominal
Diameter
(mm) | Nominal
Weight
(kg/km) | Max fiber
Per tube | No. of
(tube+fillers) | Allowable
Tensile load
Long/short
(N) | Allowable
Crush resistance
Long/short
(N/10cm) |
| 2-36 | 12.7 | 173 | 6 | 7 | 3000/1000 | 3000/1000 |
| 38-72 | 13.9 | 211 | 6 | 6 | 3000/1000 | 3000/1000 |
| 74-96 | 15.5 | 251 | 12 | 8 | 3000/1000 | 3000/1000 |
| 98-120 | 17.2 | 299 | 12 | 10 | 3000/1000 | 3000/1000 |
| 122-144 | 18.8 | 345 | 12 | 12 | 3000/1000 | 3000/1000 |
| > 144 | Available upon customer' s request
|

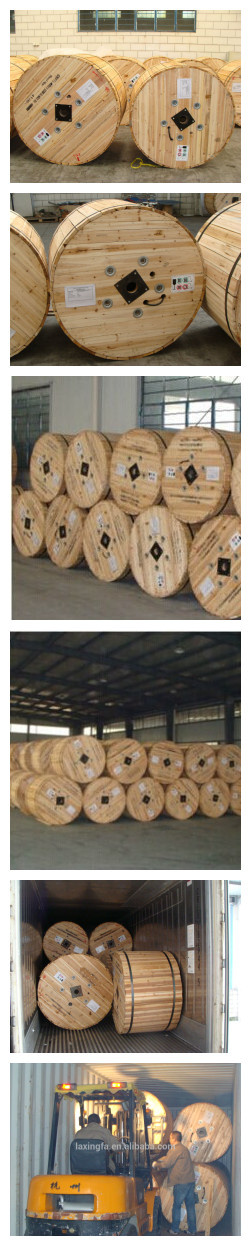

Packing
Company info
We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.
Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.
Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.
We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.
Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.
"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
