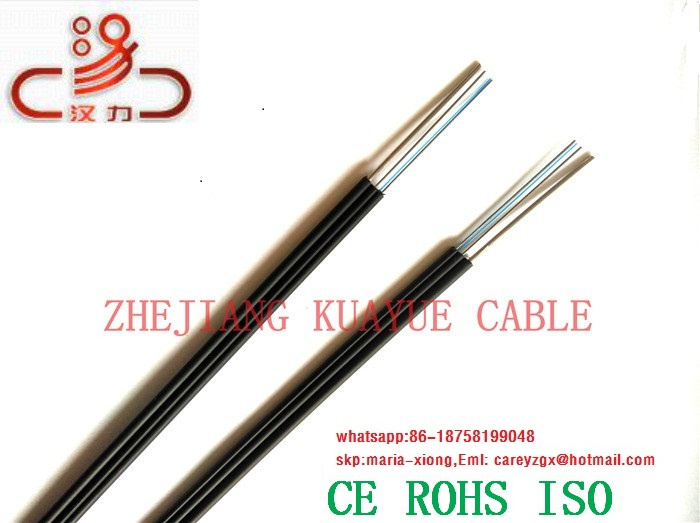

FTTH Communication Drop Optical Fiber Cable

Name: FTTH Communication Drop Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 838553245
Availability: InStock
Rating: 4.3 (123 reviews)

Price:	US $ 43-45/Roll
Min Order:	100/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH Communication and Telecom Drop Optical Fiber
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

Optical Fiber Technical Date:

ITEMS	UNITS	Fiber SPECIFICATION
Fiber Attenuation	dB/km	≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion	ps/nm.km	≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength	nm	1300 ~ 1324
Zero Dispersion Slope	ps/nm2.km	≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber)	nm	≤1260
Mode Field Diameter	um	9.2±0.5
Mode Field Concentricity	um	≤0.8
Cladding Diameter	um	125±1.0
Cladding Non-circularity	%	≤1.0
Coating cladding concentricity error	um	≤12.5
Coating Diameter	um	245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn	dB	≤0.5 at 1550nm
Proof Test	kpsi	≥100

Contact:
Name: Carey zhu Tel:+8657163808897 Mob: 18758199048
Website: http://en.hanlicable.com/main2.html http://kuayuecable.en.made-in-china.com

Zhejiang Kuayue Cable Co., Ltd" is a leading Manufacturer of cables, Specialized in producing and selling communication Cables with more than 7 years of experience, our main popular products are LAN cable. Fiber optic cable, Coaxial cable and telephone cable, other telecommunication cables and accessories.

"Zhejiang Kuayue Cable Co., Ltd" is the subsidiary of Hanli Group. We have served many of biggest company allover world such as telecom. We have our own 3 factory with more than 300 workers and more than 20000 designs of cable,

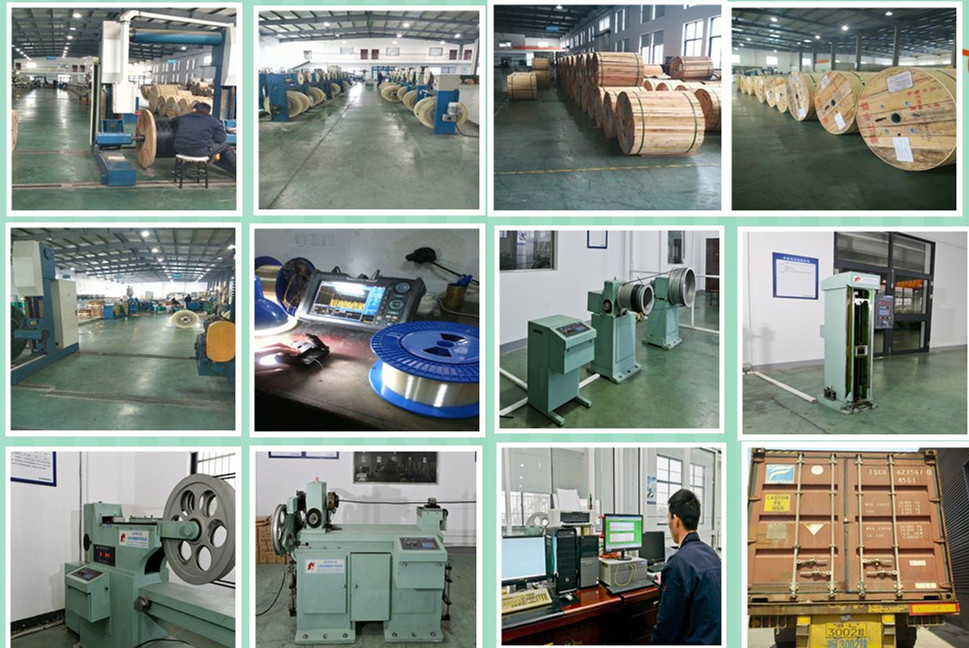

We have advanced production equipment to meet your high or special requirements. Our products have passed ISO9001, CE and RoHS certification. Our own brands "Hanli"have been widely recognized both by domestic and foreign country. We adhere to not only meet international standards but also take price in meeting customers requirement.

We can provide OEM or ODM services, and also efficient aftersales services. Please trust us can supply you with good quality products and competitive price. For more information,

Our principle: Service from Honesty, Impression from High quality!

Welcome visit our website and contact with us for any question or inquiries!
