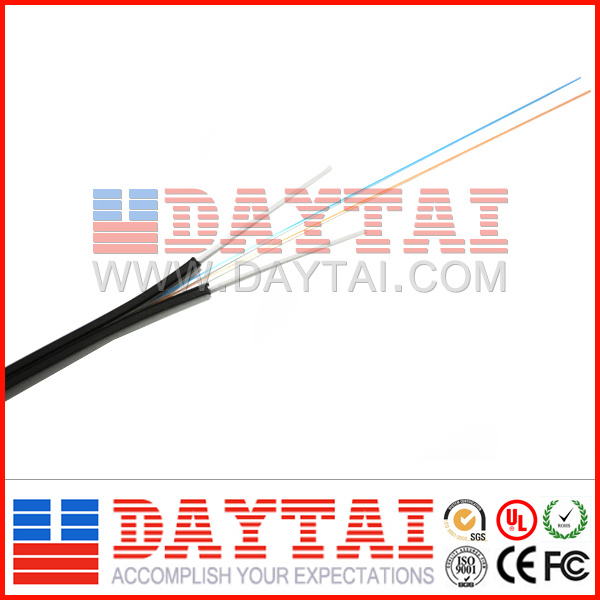

FTTH Drop Cable FRP Optic Fiber Cable Gjxfh 1, 2, 4core
| Price: |
US $ 40-200km |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10km |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
FTTH Drop Cable FRP 1, 2, 4 Core |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Type: |
Gjxfh-1,2,4 B6.A2 |
| Cable Dimension: |
3.0mm X 2.0mm |
| Fiber Type: |
9/125 (G.657A2) |
| Fiber Color: |
Nature,Blue,Orange,Green |
| Sheathmaterial: |
Lszh |
| Sheath Color: |
White or Black |
| Short Term Tensile: |
80n |
| Crush Resistance: |
2200n/100mm |
| Type: |
Single-mode Fiber |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Sheath Material: |
Lszh |
Product Description
1. Description of FTTH Drop Cable FRP Optic Fiber Cable 1, 2, 4Core
*FTTH Drop cable, GJXH 1, 2, 4 core B6 9/125(G657A2) fiber
*Fiber color: Nature, Blue, Orange, Green
*Attenuation: <= 0.336 at 1310nm, <= 0.198 at 1550nm (dB/KM)
*Min. Bending radius: 10mm(Static), 25mm(Dynamic)
*FRP Strength member
*Crush resistance: 2200N/100mm
*Sheath material: LSZH
*Cable size: 5.2mm*2.0mm.
2. Feature of FTTH Drop Cable FRP Optic Fiber Cable 1, 2, 4Core
*The optical cable has small diameter, lightweight, low cost, low construction cost.
*It is suitable for mechanical splicing technology, fast, and flexible.
*The optical cable has high-tension and anti-squash force, self-supportingstructure can meet the requirement of 50 meters pull-fly.
*Ituses aromatic polyamide materials to be the strengthen material.
*The optical cable is soft, good bending performance, and ensure that the bendingperformance can meet the requirements.
*It uses low smoke zero-halogen material, ensure that the cable can meet therequirements for the flame-retardant materials indoor.
*The optical fiber is the bend insensitive fiber which can meet requirement ofITU-T G. 657.
*High-carbon steel wire should be used for Self-supporting strengthen device of optical cable, superior tensile properties contented.
3. Application of FTTH Drop Cable FRP Optic Fiber Cable 1, 2, 4Core
With the development of the telecommunications industry, the communications networks develop from theunitary voice service to the full-service integrated communications networkwith various digital services of voice, data, and video. The construction ofoptical networks develops from the backbone network, core network to the MANand access net works. Since the fiber withfrequency bandwidth has the strengths of high transmission capacity and lowattenuation, FTTH supports various kinds of services, the features such aswider bandwidth, convenient maintenance are the foundation for our company todesign the drop optical cable, which is applicable to the accession of the user'send in the broadband access network.
4. Technology Specification| Item | Technology parameter |
| Cable type | GJXFH-1,2,4B6.A2 |
| CableDimension | 3.0mm x 2.0mm |
| Fiber type | 9/125 (G.657A2) |
| Fiber Counts | 1 | 2 | 4 |
| Tight buffer color | Nature | Nature,Blue | Nature,Blue,Orange,Green |
| Sheathmaterial | LSZH |
| Sheath Color | White or Black |
| Cable weight | 7.5Kg/Km |
| Min. bending radius | 10mm(Static)25mm (Dynamic) |
| Attenuation dB/km | ≤0.336at 1310nm, ≤0.198at 1550nm |
| Short term tensile | 80N |
| Crush resistance | 500N/100mm |
| Operation temperature | -20~+70 |

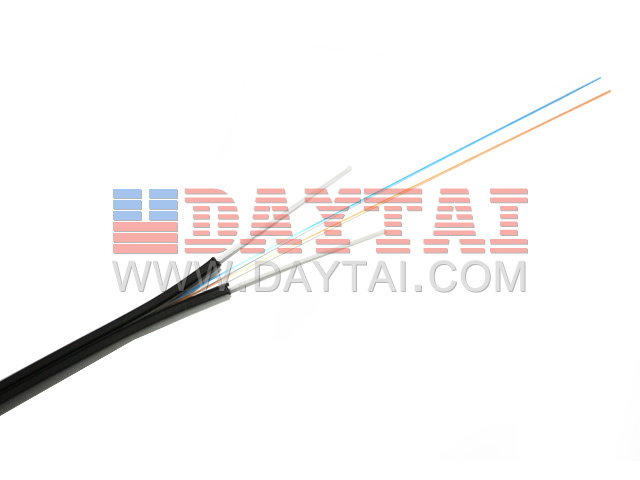

5. Pictures

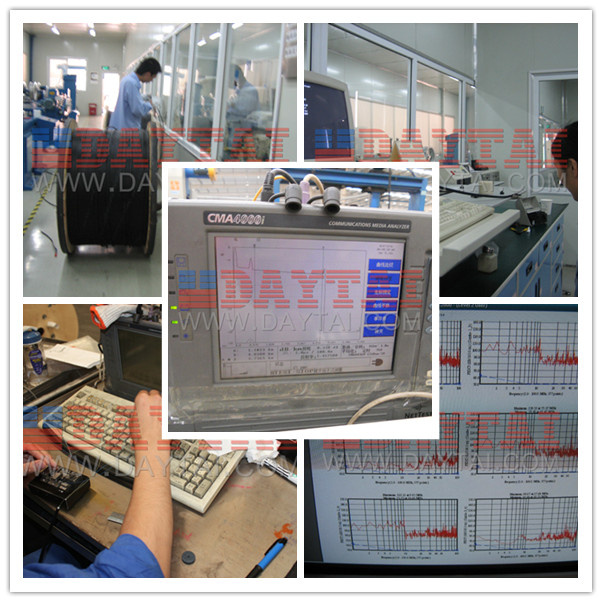

6. Test

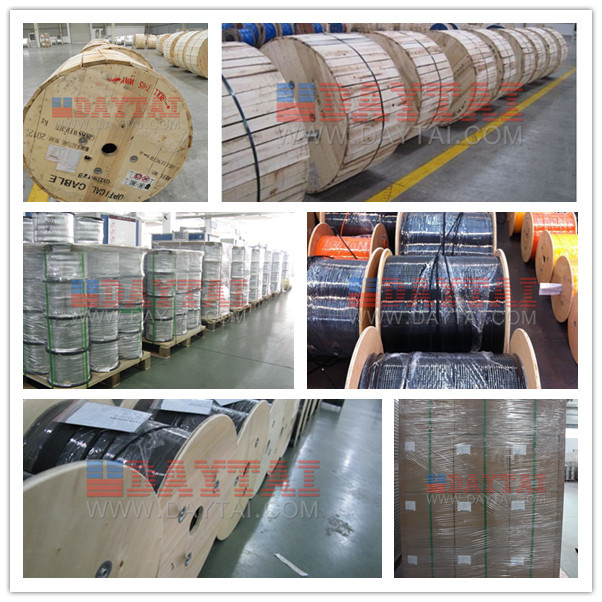

7. Packing
FAQ
Q1: What's the MOQ, can i buy 1 piece the first time?
Re:The MOQ of fiber optic pigtail is 100pcs.
Q2: What's delivery time
Re: The general delivery time is 4-6days after order confirmed, it depends on the order quantity
Q3: Can you send me a free sample?
Re: We are willing to send you free sample, if you would like to pay the shipping costs
Q4: What's your payment terms?
Re: 30% in advance, and 70% before shipment
Q5: What's the payment method?
Re: We accept T/T, Western Union, L/C
Q6: How to ship the items to me?
Re: Courier (DHL, TNT, FEDEX, UPS, EMS), Airfreight, Ocean Ship are available.
