| Prod Model: |
TK-FCU-PC |
| Business Type: |
Manufacturer |
| Fiber Type: |
G652D, G655, G657A |
| Polishing: |
PC, Upc, APC |
| Core Number: |
Simplex, Duplex, Qurd |
| Connector Type: |
LC/Sc/St/FC/Mu/E2000 |
| Operating Temperature: |
-40c~+80c |
| Cable Length: |
0.5m/1m/3m/5m or Customized |
| Fiber Mode: |
Single Mode or Multi-Mode |
| Cable Diameter: |
0.9mm, 2.0mm, 3.0mm |
| Operation Wavelenghth(Nm): |
1310/1550nm |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
FC-FC |
| Certification: |
CCC |
Product Description

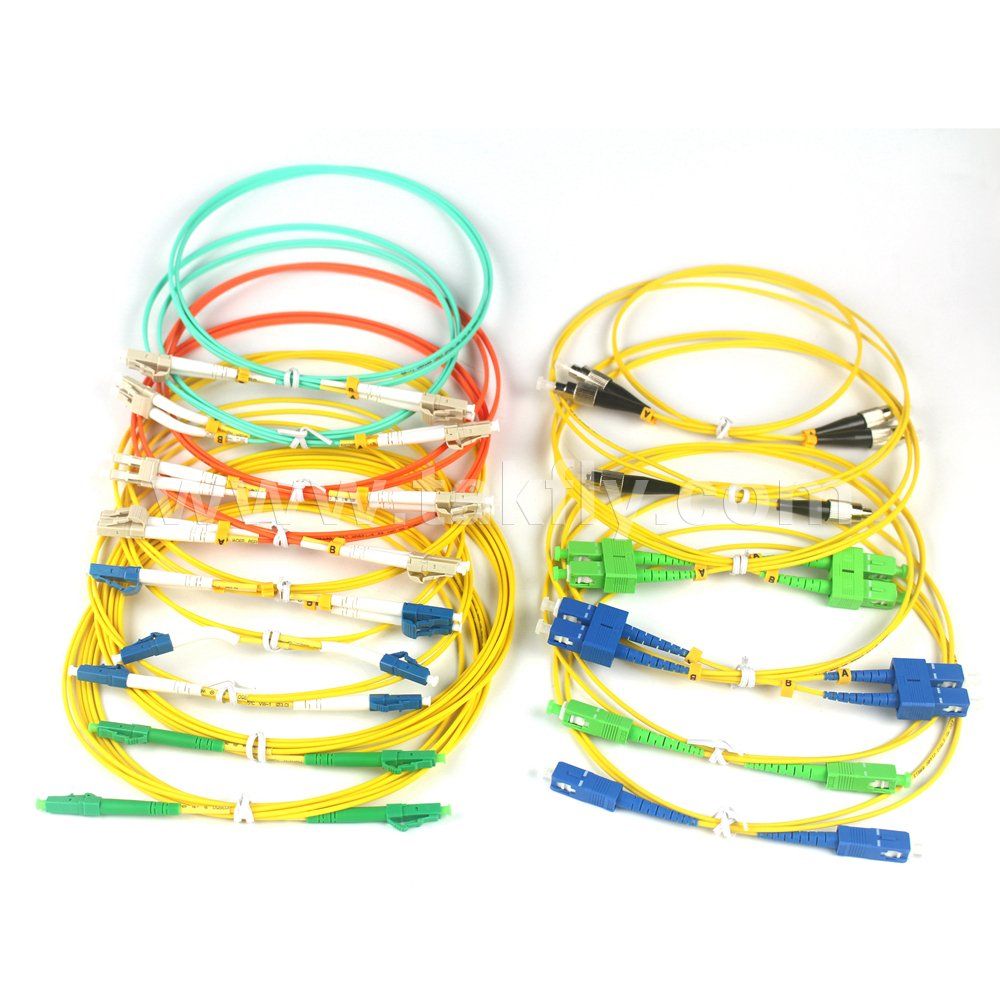

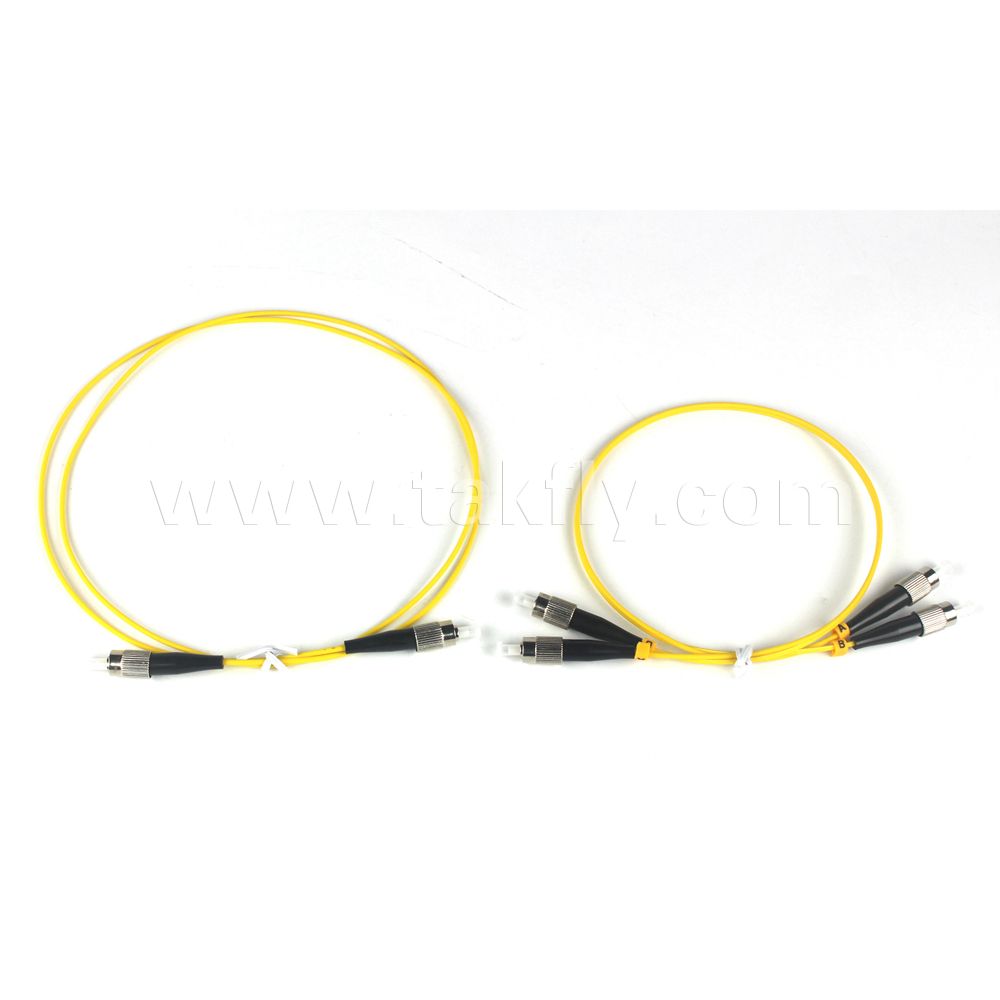

FTTH FC/UPC Single Mode Simplex Duplex Fiber Optic Patchcord
Fiber Optic Patch Cords are designed to interconnect or cross connect fiber networks within structured cabling systems. Typical fiber connector interfaces are SC, ST, FC,MU, MTRJ, E2000 and LC in either multimode or single-mode applications.
All connectors have precision pre-radiused zirconia ferrules
ST and FC connectors have metal bodies
Corning, YOFC, OFS fiber is standard
Standard and custom configurations available
Duplex clips included with duplex configurations
Advantages1. Takfly has 4 times polishing the connector: 1200um polishing, 9um polishing, 1um polishing and 0.5um polishing;
2. The concentricity of the ferrule<0.5
3. IL<0.2dB.
4. Lead time for delivery: 2-4 working days.
5. Takfly's manufacturing machines are imported from Germany and Japan.
Features1. Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard.
2. Connector type standard: IEC61574 series
3. Low Insertion Loss : IEC 61300-3-4, IL≤0.20dB
4. High Return Loss :IEC61300-3-6; RL≥60dB
5. Flammability:IEC60332-1
6. Repeat Plug feature is good, good interchangeability
7. Ceramic Ferrule, high-density docking, concentricity ≤0.5
8. Can provide general PVC or LSZH cable cable
Application1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
Specification| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
Order Information| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H02 | 1.SM Simplex
2.MM Simplex
3.APC Simplex
4.SM Duplex
5.MM Duplex
6.APC Duplex | 1. 0.9
2. 2.0
3. 3.0
| 1.9/125
2.OM3
3.50/125
4.62.5/125 | 1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH | 1.Blue
2.Beige
3. Green
4.Black
5.Blue and Yellow
6.Red and Black
|
| Fiber cable performance specifications |
| Fiber type | Min.Bandwidth | Distance | Attenuation |
| 62.5/125 | 850/1300nm
200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm
3.0/1.0dB/km |
| 50/125 | 850/1300nm
500/500 MHz/Km | @100Mbps 2km @1Gig 500m | 850/1300nm
3.0/1.0dB/km |
50/125
10Gig Optimized | 850/1300nm
2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm
3.0/1.0dB/km |
| Fiber type | Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,,G657A2 |
Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)OM4 |
| Fiber | YOFC, CORNING, OFS |
| Connector1 | FC,LC,SC,ST.MU, MTRJ, E2000 SMA |
| Polishing | UPC,APC |
| Connector2 | FC,LC,SC,ST.MU, MTRJ, E2000 SMA |
| Polishing | UPC,APC |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,2.0mm, 3.0mm |
| Cable jacket | PVC,LSZH, OFNR, OFNP |
| length(M) | 0.3m,1m,2m,5m,10m,25m,50m,100m (custom) |
Why choose Takfly ?Service1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality ControlAll products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery:1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Shipping 1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
ContactMob:+86-13502850422
Have a nice shipping time!
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
