FTTH Fiber Cabl LSZH Sm 4 Core Fro Communication

Name: FTTH Fiber Cabl LSZH Sm 4 Core Fro Communication
Brand: all-electronics-online.com
SKU: 823761845
Availability: InStock
Rating: 4.4 (74 reviews)

Price:	Negotiable/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH FIber Cable
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001

Product Description

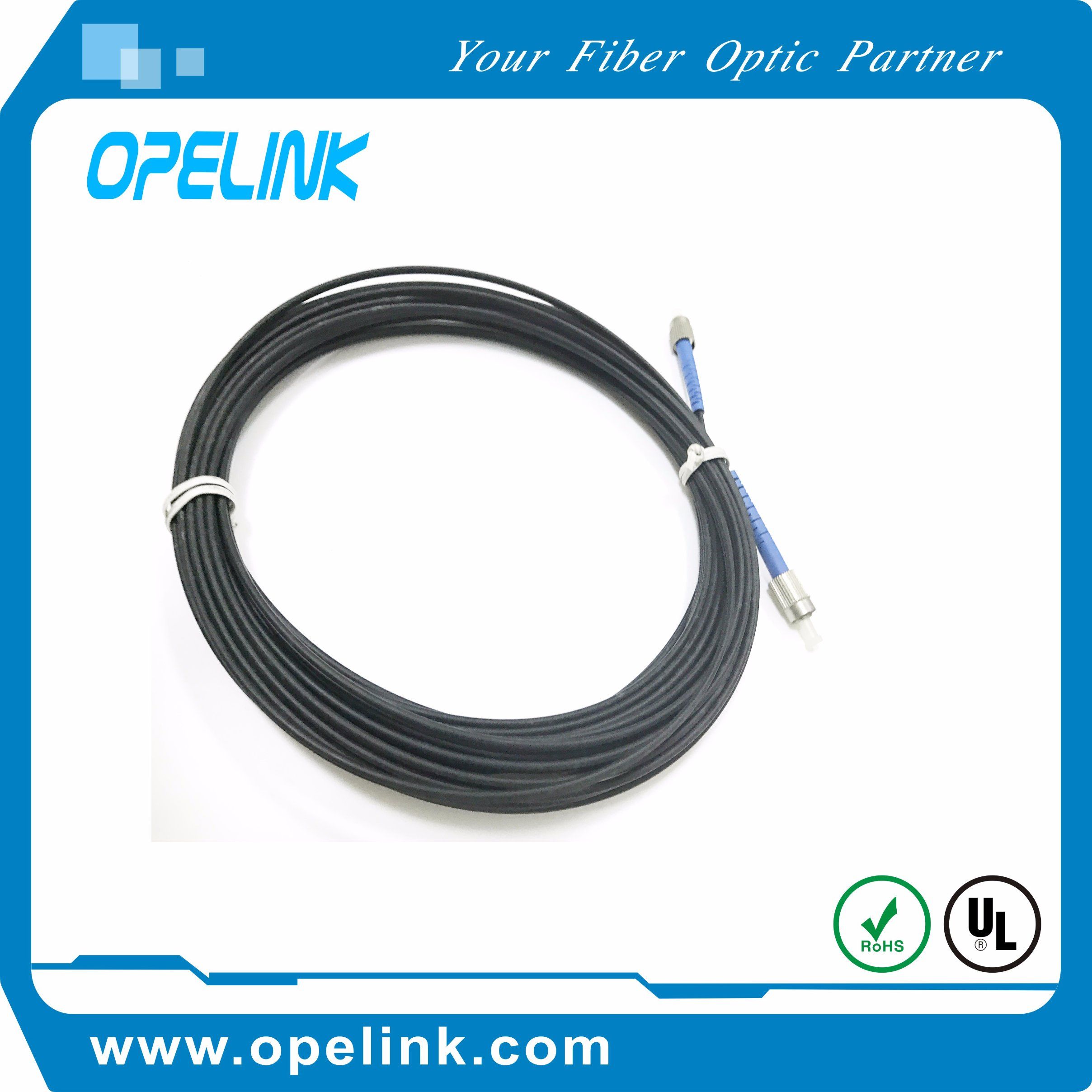

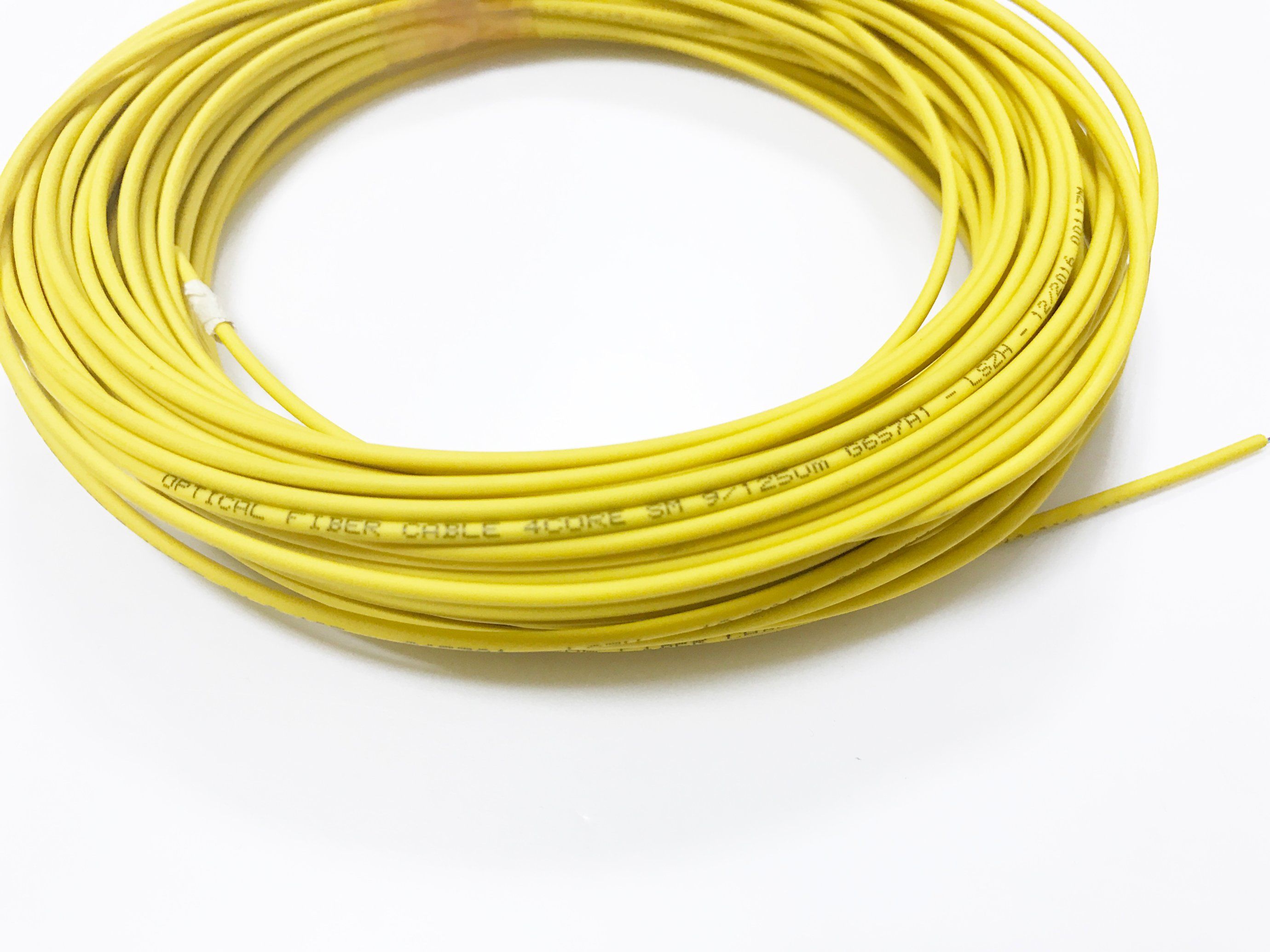

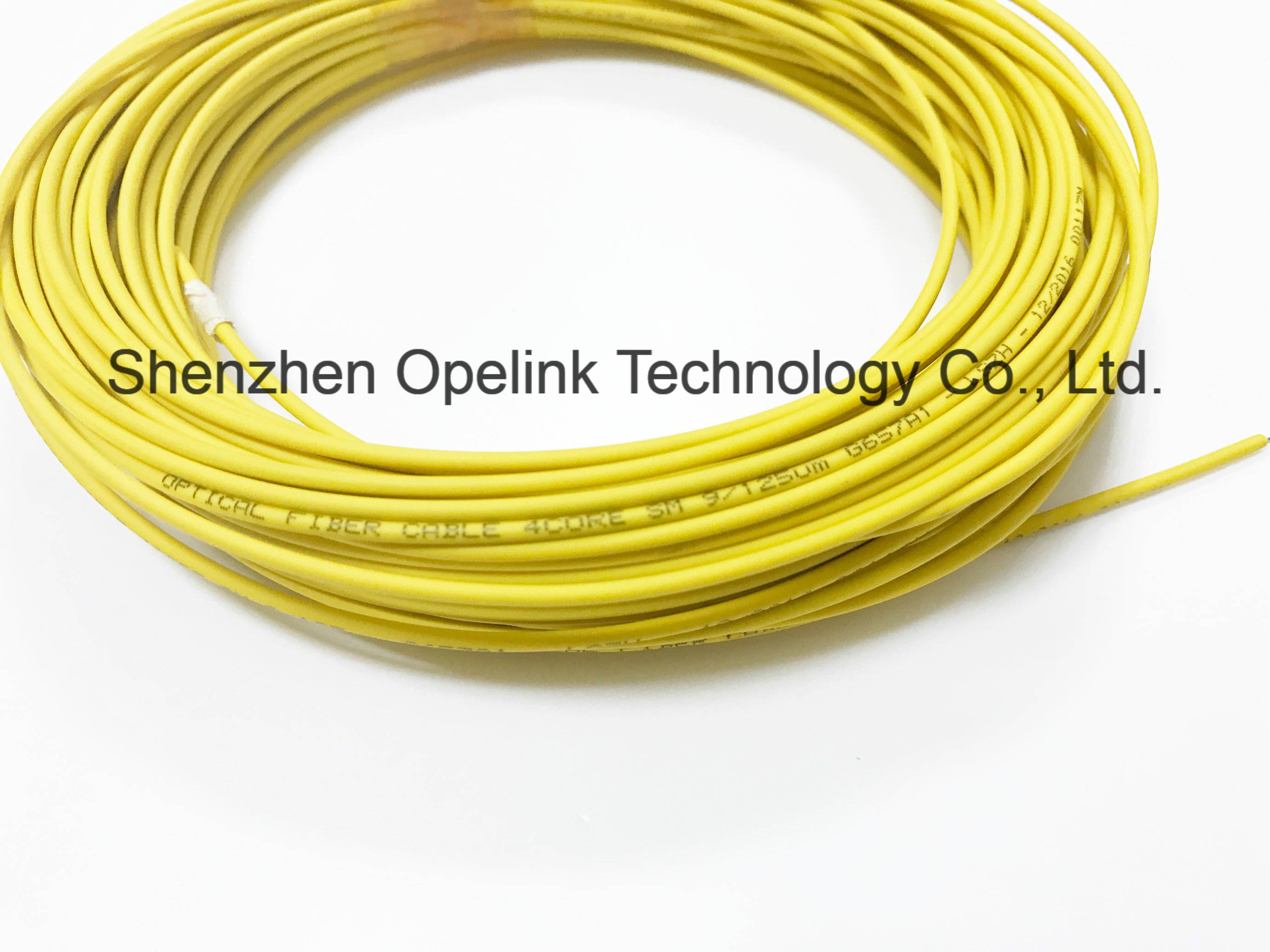

FTTH Drop Cable LSZH SM 4 CORE

Fiber Parameters:

		Items				Specification
No.					Unit
						G.657A1
						G.657A1

1	Mode Field Diameter			1310nm	μm	9.0±0.4

				1550nm	μm	10.1±0.5
				1550nm	μm	10.1±0.5

2	Cladding Diameter				μm	124.8±0.7

3	Cladding Non-Circularity				%	≤0.7

4	Core-Cladding Concentricity Error				μm	≤0.5

5	Coating Diameter				μm	245±5

6	Coating Non-Circularity				%	≤6.0

7	Cladding-Coating Concentricity				μm	≤12.0
7	Error				μm	≤12.0
	Error

8	Cable Cutoff Wavelength				nm	λcc≤1260

9	Attenuation(max.)			1310nm	dB/km	≤0.35

				1550nm	dB/km	≤0.21
				1550nm	dB/km	≤0.21

10			1turn×10mm radius @1550nm		dB	≤0.75
	Macro-Bending Loss
			1turn×10mm radius @1625nm		dB	≤1.5
			1turn×10mm radius @1625nm		dB	≤1.5

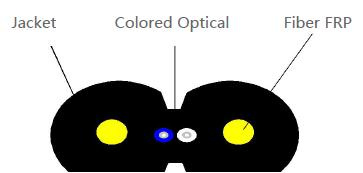

Cable Parameters:

Items		Specifications

Fiber Count		1

	Dimension	250±15μm
Colored Coating Fiber
Colored Coating Fiber	Color	white

	Dimension	(2.0±0.1)mm×(3.0±0.1)mm

	Material	LSZH
Jacket	Material	LSZH

	Color	Black
	Color	Black
Strength Member		FRP

Mechanical and Environmental Characteristics:

Items	Unite	Specifications

Tension(Long Term)	N	100

Tension(Short Term)	N	200

Crush(Long Term)	N/10cm	1000

Crush(Short Term)	N/10cm	2200

Min. Bend Radius(Dynamic)	mm	30

Min. Bend Radius(Static)	mm	15

Operating Temperature	ºC	-20~+60

Storage Temperature	ºC	-20~+60

-----------------------------------------------------FAQ------------------------------------------------------

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping
also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
