FTTH Fiber Optic Embedded Sc APC Quick Connector/Sc APC Fast Connector
| Price: |
US $ 0.8-0.9/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Sc Fast Connector |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Sc APC Quick Connector/Sc APC Fast Connector |
| Connecter Type: |
Sc,FC.St,LC Optional |
| Cable Outer Diameter: |
0.9/2.0/3.0mm |
| Polishing: |
PC,Upc,APC |
| Installation Time: |
Less Than 40s |
| Return Loss: |
PC>30dB; APC> 50dB |
| Insertion Loss: |
< 0.3 dB |
| Certificate: |
Ce, RoHS |
| Service: |
Perfect After-Sale Service |
| Warranty: |
2 Years |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
Product Description
FTTH Fiber Optic Embedded SC APC Quick Connector/SC APC Fast Connector
Optical Fiber Connector can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. Our quick connector system removes any requirement for epoxy, adhesives or costly curing ovens.All the key steps have been done in the factory to ensure every connection is excellent.High quality but low price because we bring these in direct from the manufacturer.
Feature
1).Low insertion loss
2).High return loss (low amounts of reflection at the interface)
3).Ease of installation
4).Low cost
5).Reliability
6).Low environmental sensitivity
7).Ease of use
Application
1).CATV
2).Active device termination
3).Telecommunication networks
4).Metro
5).Local Area Networks (LANS)
6).Data processing networks
7).Test equipment
8).Premise installation
9).Wide Area Networks(WANS)
Specifications:
| Mode | SM | MM |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB |
| Salt Spray | ≤0.1dB |
| Repeatability | ≤0.1dB (1000 times) |
| Vibration | ≤0.2dB (550Hz 1.5mm) |
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) |
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
| Apex Offset | 0μm ~ 50μm |
| Radius of Curvature | 7mm ~ 25mm |

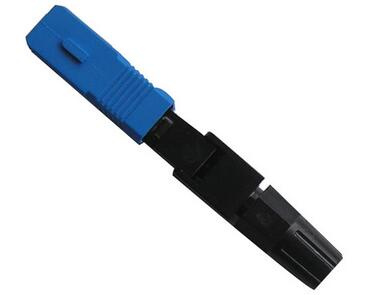

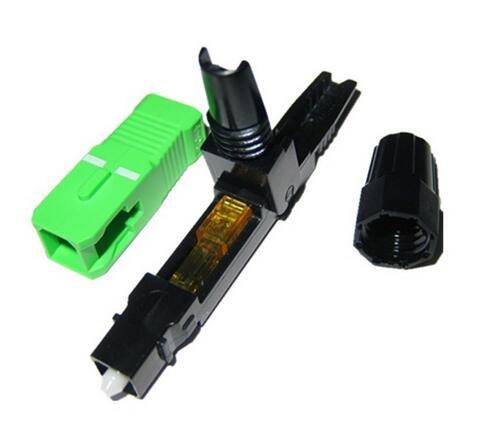

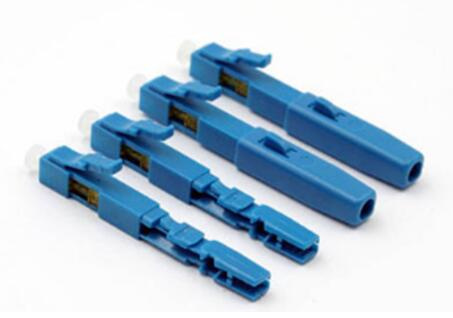

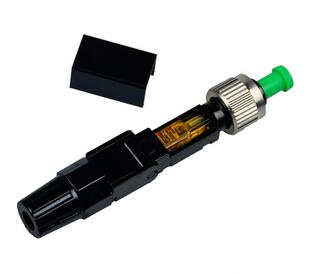

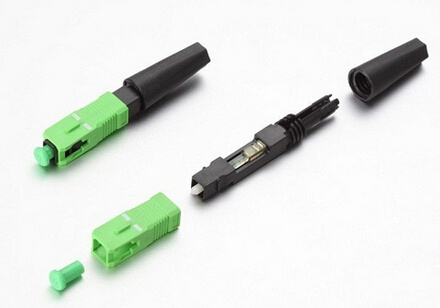

Product Picture:
International Exhibition:
Our Services: 1.Order inquiry: Keep working time from 9AM to 23PM to gurantee the first reply to clients,and 24 hours no Cellphone power off 2.Order production: Keep very close touch with production department to gurantee the right delivery time to clients 3.Before shipment: Our sales would double check the order quantity,package and strength of cartons to avoid lost and damage 4.After shipment: Keep tracking shipping status and reporting to clients 5.Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR etc. If you interest or have any question, Why not send inquiry? Welcome & Just Do It !!!
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
