| Prod Model: |
FL-OTDR-BOX-SM10 |
| Application: |
Fiber Test Tool |
| Certification: |
ISO9001 |
| Connection Structure: |
SC/LC/ST/FC |
| Material Shape: |
Box |
| Brand: |
Fiberlink or OEM |
Product Description

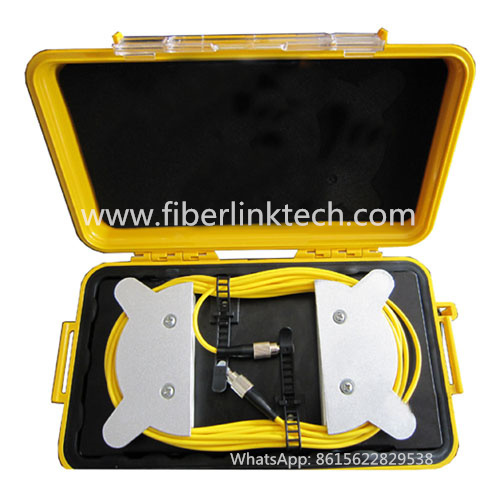

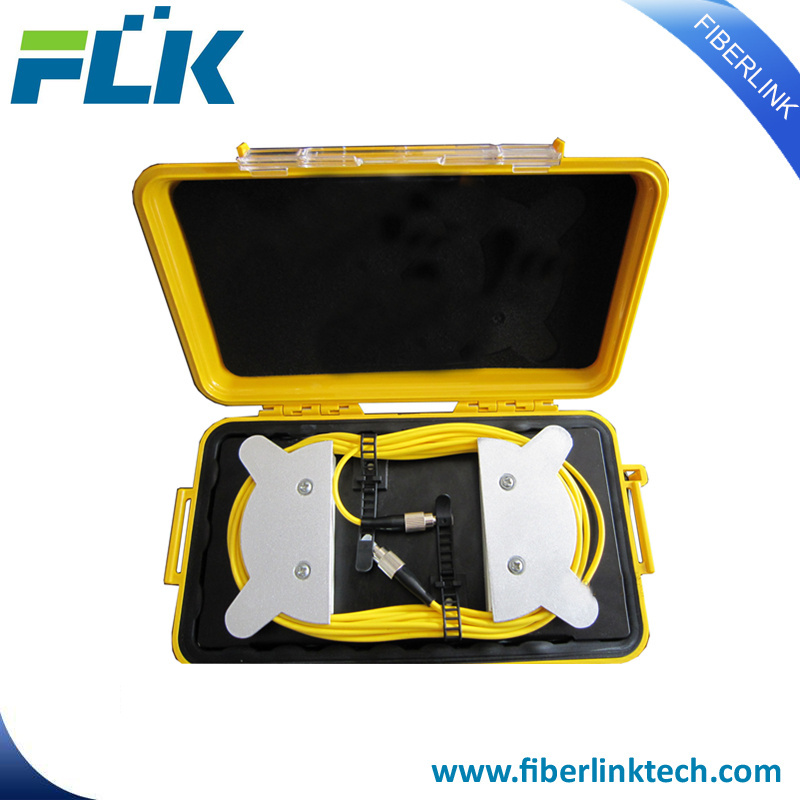

We supply OTDR launch cable which designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR launch cable boxes are available in single mode and multimode fiber cable with different length from 200m to 2KM. The OTDR Launch Test Box is used with Optical Time Domain Reflectometers (OTDRs) to help minimize the effects of the OTDR launch pulse on measurement uncertainty, it's a very helpful tool in the fiber optic FTTH/FTTx projects.
Features
Pulse Suppressor, Launch cable Box, Delay Line, Installation/Testing, Training, Calibration
Compound Latch for positive seal and easy opening with locking feature
Non¬metal construction will not dent, corrode, or conduce electricity
Water and dust prove allowing the unit to be taken into almost any environment
Case can house up to 2,000 meters of fiber
Auto Purge Valve for changes in altitude and temperature
Specifications| Length x Width x Height | 9.37" x 5.56" x 2.62" (238x141x66mm) |
| Material | SR Polypropylene |
| Weight | 0.75 kg (without fiber) |
| Operating temperature | -40° to +55°C |
| Typical Loss | < 0.5dB @ 1310nM for 1000 meters |
Order Information
| Part No. | Description |
FL-OTDR-BOX-SM05 | OTDR Launch Cable Box, SM G652D, 500M,
Connector: FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
FL-OTDR-BOX-SM10 | OTDR Launch Cable Box, SM G652D, 1KM,
Connector: FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
FL-OTDR-BOX-SM20 | OTDR Launch Cable Box, SM G652D, 2KM,
Connector: FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
FL-OTDR-BOX-MM05 | OTDR Launch Cable Box, MM (62.5/125um or 50/125um), 500M,
Connector: FC/PC, SC/PC, ST/PC, LC/PC optional |
FL-OTDR-BOX-MM10 | OTDR Launch Cable Box, MM (62.5/125um or 50/125um), 1KM,
Connector: FC/PC, SC/PC, ST/PC, LC/PC optional |
FL-OTDR-BOX-MM20 | OTDR Launch Cable Box, MM (62.5/125um or 50/125um), 2KM,
Connector: FC/PC, SC/PC, ST/PC, LC/PC optional |
| FL-OTDR-BOX-SM705 | OTDR Launch Cable Box, SM G657A, 500M,
Connector: FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
FL-OTDR-BOX-SM710 | OTDR Launch Cable Box, SM G657A, 1KM,
Connector: FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
FL-OTDR-BOX-SM720 | OTDR Launch Cable Box, SM G657A, 2KM,
Connector: FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
FL-OTDR-BOX-OM305 | OTDR Launch Cable Box, OM3, 500M,
Connector: FC/PC, SC/PC, ST/PC, LC/PC optional |
FL-OTDR-BOX-OM310 | OTDR Launch Cable Box, OM3, 1KM,
Connector: FC/PC, SC/PC, ST/PC, LC/PC optional |
FL-OTDR-BOX-OM320 | OTDR Launch Cable Box, OM3, 2KM,
Connector: FC/PC, SC/PC, ST/PC, LC/PC optional |

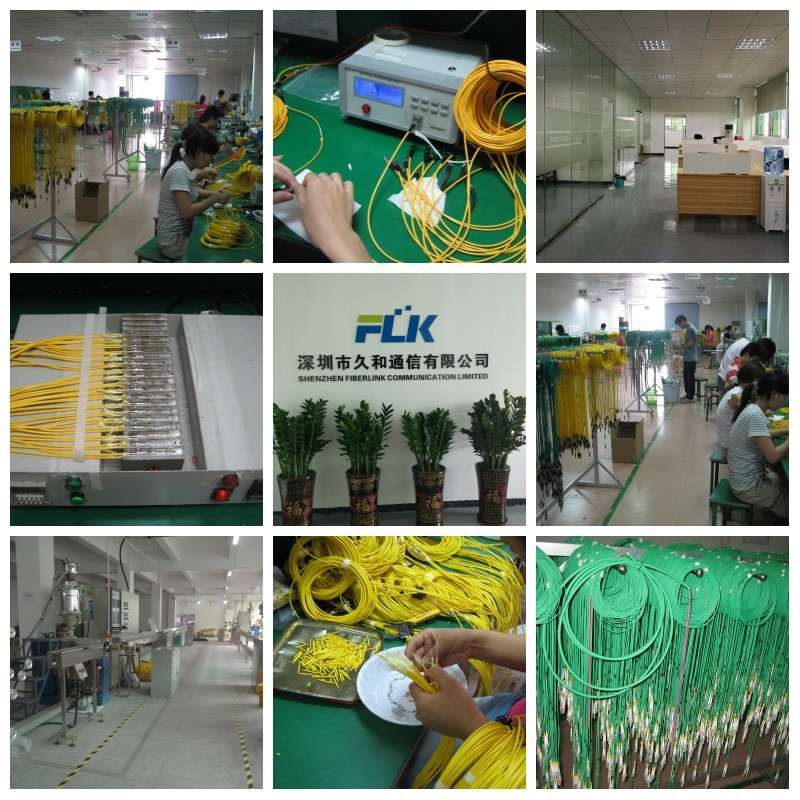

SHENZHEN FIBERLINK COMMUNICATION LIMITED has been dedicated to full range of fiber optic passive components and accessories for about 10 years, our products include fiber optic cable, patch cord, connector, adapter, PLC Splitter, FBT coupler, attenuator, distribution box, terminal box, patch panel, splice closure, test tools, etc.
