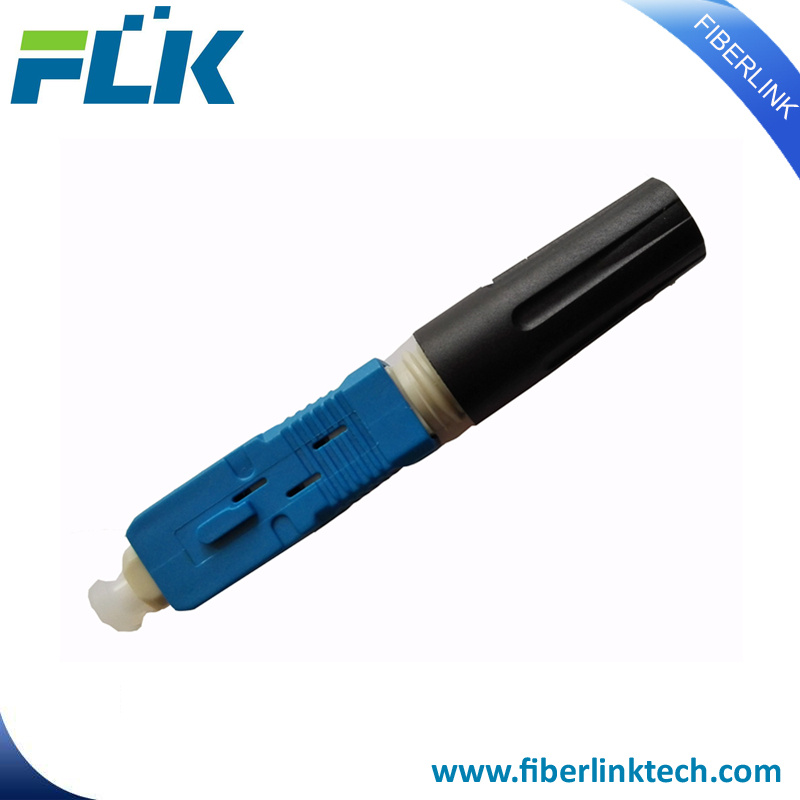

FTTH Fiber Optic Quick Field Assembly Fast Connector Drop Cable Faoc Sc/Upc Sc/APC
| Price: |
US $ 0.65-0.95/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FLK-FAOC-SU04/SA04 |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
Upc/APC |
| Connector Type: |
Quick Field Assembly Fast Connector |
| Brand: |
Fiberlink or OEM |
Product Description

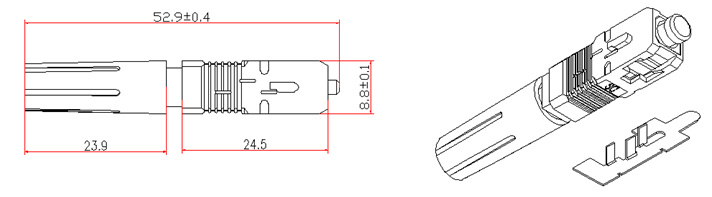

Field Assembly Optical Connector (FAOC) is a perfect solution for filed working and FTTH connection. It is widely used for where need to quick connection, providing a quick assembly and stable performance. When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing.SC/UPC APC Fast Connector is designed inside ferrule with fiber stuff and pre-polishing in the factory. It provides a perfect ferrule end face quality. This has great help to protect user's equipment interface and improves the connector loss.FeaturesFTTH project usableOne-piece connector or attenuatorInside ferrule with fiber stuff and pre-polishingField installable, quick connection, easy for operationHigh performance and high reliabilitySimply and easy fixed fiber or cableCable Tensile complied with Telcordia GR-326-COREApplicationsOptical Distribution FrameOptical Network EquipmentFTTH, CATVFLK-FAOC-SU04/SA041.1 Product schematic diagram

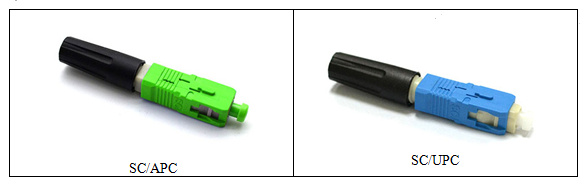

1.2 Product photos
Material specification
| Name | Specification | Remarks |
| Fiber type | Single mode or Multi mode | Consistent with ROHS,IEC |
| Cable diameter | 250um |
| Applicable for | Indoor or Outdoor FTTH |
| Connector type | SC |
| Core diameter | 2.499±0.002mm |
| Core concentricity | <=0.5um |
Optical performance| Project | Company | Index | Remarks |
| Operating Wavelength | nm | 1260~1650 | |
| Insertion loss | dB | ≤0.5 | |
| Return loss | dB | APC ≥50;UPC≥45 | |
| Insertion loss typical value | dB | 0.25 | |
| Fastening strength of naked fiber | N | ≥5N | |
| Tensile Strength | N | >50N | |
| Mechanical endurance | time | ≥500 | |
| Reusable | time | ≥10 | |
| Operating Temperature | ºC | -40~+85 | |
Fiber cutting length
Fixed length device
Cutting length diagram

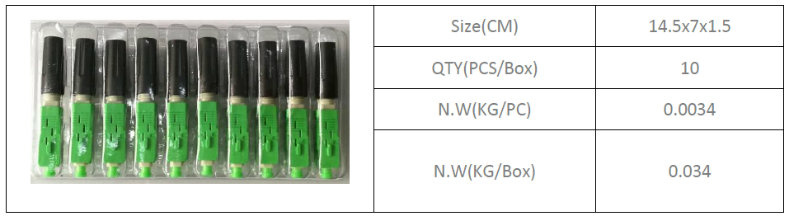

Packaging method
