FTTH Fiber Optical FC Fast Connector/FC Quick Connnector

Name: FTTH Fiber Optical FC Fast Connector/FC Quick Connnector
Brand: all-electronics-online.com
SKU: 796864155
Availability: InStock
Rating: 4.7 (75 reviews)

Price:	US $ 0.1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FC fast connector
Product:	FC Fast Connector
Polish:	Upc or APC
Fiber Application:	Singlemode or Multimode
Fiber Type:	Simplex
Maximum Cable Diameter (mm):	250um, 900um, 2mm, 3mm Fiber Types
Connector Ferrule:	Ceramic
Notes:	Pre-Polished, Pre-Stubbed Factory Polished Ferrule
Transmission Medium:	Single-Mode
Structure:	FC
Number Of Cores:	Single-Core
Ferrule Endface:	APC

Product Description

The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
Assembly of the FC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.

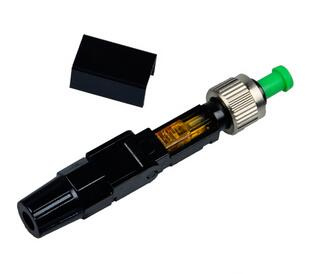

FTTH Fiber Optical FC fast connector/FC Quick Connnector

Technical Specification:

Item	Parameter
Cable Scope	3.0 x 2.0 mm Bow-type Drop Cable 2.0/3.0 indoor cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.25dB(1310nm & 1550nm)
Return Loss	≥ 45dB
Success Rate	>98%
Reusable Times	>10 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>50 N
Work Temperature	-40~+85°C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	IL ≤ 0.3dB

FTTH Fiber Optical FC fast connector/FC Quick Connnector

Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC,APC,UPC optional

FTTH Fiber Optical FC fast connector/FC Quick Connnector

Application:
FTTH
Local Area Network
CATV System
Telecommunication Networks
Equipment Test

FTTH Fiber Optical FC fast connector/FC Quick Connnector
