FTTH Fiber Optical SC APC Quick Connector With High Quality

Name: FTTH Fiber Optical SC APC Quick Connector With High Quality
Brand: all-electronics-online.com
SKU: 818409945
Availability: InStock
Rating: 5 (96 reviews)

Price:	US $ 0.6-1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-009
Polishing:	APC
Durability:	0.3dB Max
Assembly:	SC Fast Terminated
Cable Diameter:	2.0mm
Type:	Single-mode Fiber
Connection Structure:	SC
Material Shape:	Round Wire
Core:	Single Core
Certification:	CE, RoHS, ISO9001, UL
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Light Source TYPE:	Fiber

Product Description

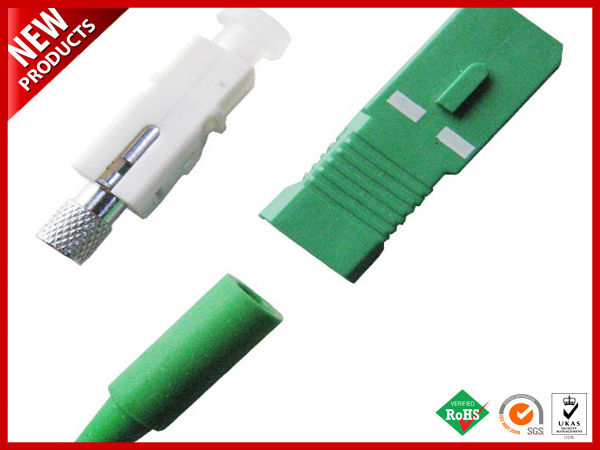

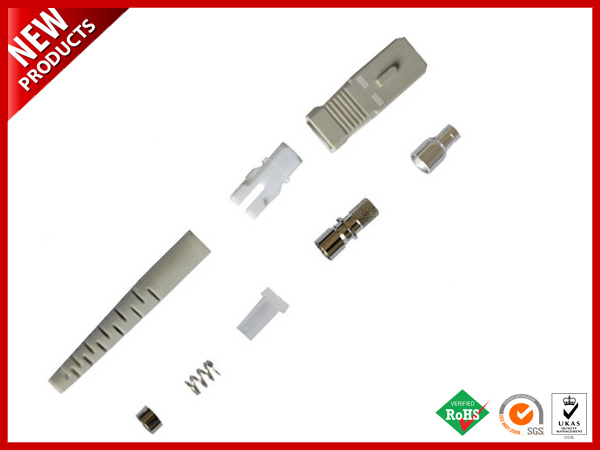

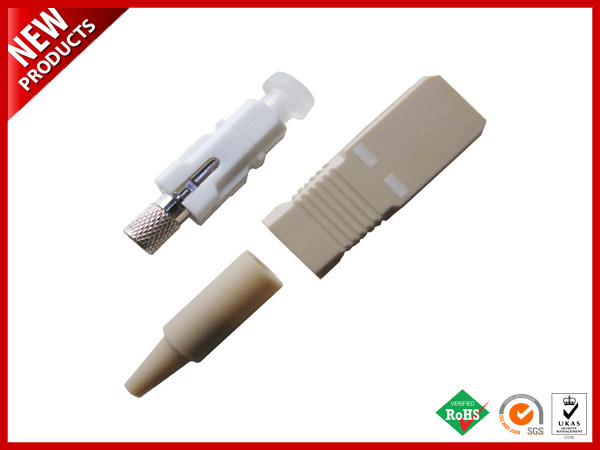

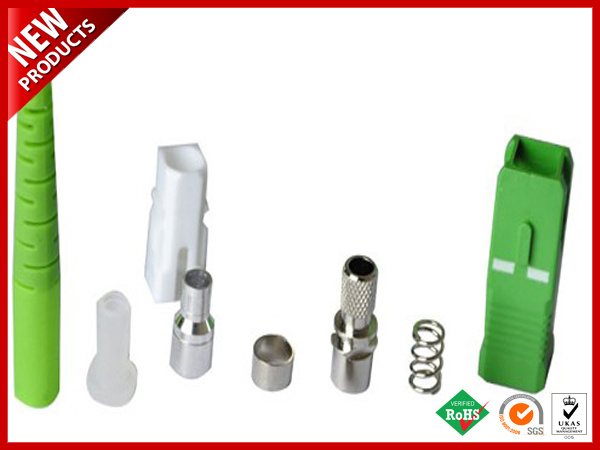

FTTH Fiber Optical SC APC Quick Connector With High Quality

The connector is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporaters a factory-mounted fiber stub and a pre-polish ceramic ferrule. This technology from PUNO and provides a fast, secure and reliable SC-Compatible optical fiber termination for either multimode or singlemode cable.

Application:

√ Fiber connecting when FTTH Projects processing;
√ Used to restore and maintenance when fiber-cut;
√ Distibution in LAN area;
√ Suitable for connecting with optic splice closure, ODF, optical cross connection cabinet.

Feature:

√ Precision mechanical dimension;
√ Fast, easy to installation;
√ Low Insertion Loss;
√ Ultra low back reflection;
√ Confirms to IEC61754-4;
√ All material confirm to RoHS.

Specification:

Fiber Type	Single-mode	Multi-mode
	G.652	62.5µm	50µm
	1310/1550 nm	850/1300 nm	850/1300 nm
Insertions Loss	0.3 dB	0.5 dB
Return Loss	45dB (PC) Typical 65dB (APC) Typical
Operating Temperature Range	-30° C ~ 75° C \| -22° F ~167° F
Storage Temperature Range	-40° C ~ 85° C \| -40° F ~185° F

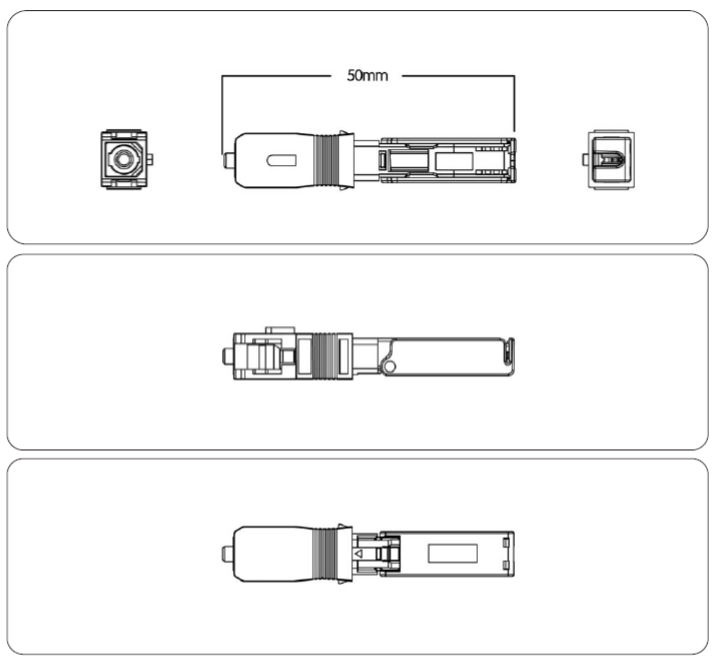

SC Connector Dimension:

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
