FTTH Flat Drop Cable 1core 2core 4core Optic Fiber Cable

Name: FTTH Flat Drop Cable 1core 2core 4core Optic Fiber Cable
Brand: all-electronics-online.com
SKU: 830504655
Availability: InStock
Rating: 4.6 (55 reviews)

Price:	Negotiable/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJXCH Optic Fiber Drop Cable
Messenger Wire:	1.0mm or 1.2mm Steel Wire
Strength Member:	Steel or FRP
Sheath:	LSZH / PVC
Sheath Color:	Black or White
Other Material:	Glue
Fiber Count:	1-4 Cores
Application:	Fiber to The Home,CCTV etc.
Certification:	Tel, Reach, etc
Type:	Optic Fiber Drop Cable
Brand:	Tw-Scie or OEM
Sheath Material:	LSZH/PVC

Product Description

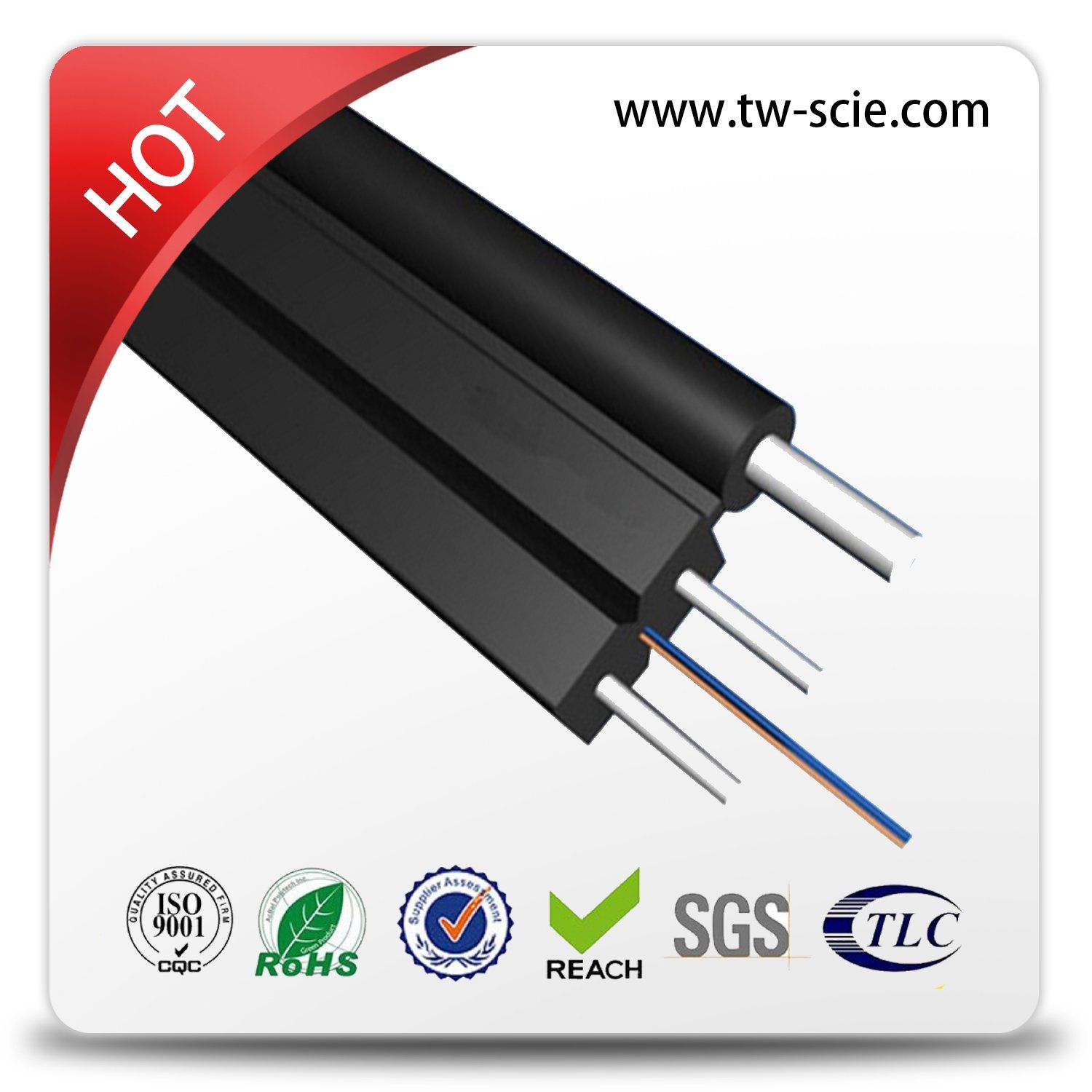

FTTH Flat Drop Cable 1core 2core 4core Optic Fiber Cable

Cable Introductions as following:

1. Optic Fiber Drop Cable General Specifications

Cable Type	FTTH(Drop Cable)
Fiber Type	SM G.657A1
Application	LAN, CCTV etc
Recommended installation methods	Aerial
Environment	Indoor/Outdoor
Temperature Range	-40ºC to 70ºC

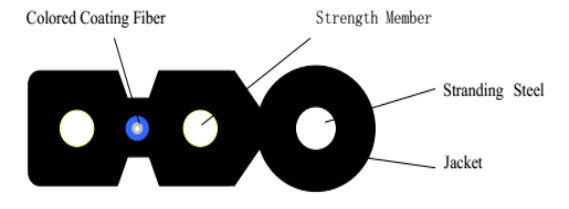

2. Optic Fiber Drop Cable Design

Item	Description
Model No	GJYXCH
1. Fiber count	1core, 2 Core,4 core
2. Cable Diameter	2.0±0.1*5.0±0.2mm
3. Cable Weight	20KG
4. Strength member
-Material	STEEL
-Diameter	0.45mm*2
5.Outer Sheath
-Material	LSZH
6. Sheath marking
-Type of marking	Laser printing
7. Messenger
OD	1.0mm
Material	Steel wire

3. Optic Fiber Drop Cable Performance

Items		Description
Installation Temperature range		-20--+60ºC
Operation and transport temperature		-40-+70ºC
Min Bending Radius(mm)	Long term	10D
Min Bending Radius(mm)	short term	20D
Allowable Tensile Strength(N)	Long term	300
Allowable Tensile Strength(N)	short term	600
Crush Load (N/100mm)	Long term	1100
Crush Load (N/100mm)	short term	2200

Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2.Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

As professioanl manufacturer on optical fiber cables, we can not only offer you cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

Tag: FTTH FIBER CABLE; 1 CORE DROP CABLE; 2 CORES DROP CABLE.

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
