| Prod Model: |
GJYXFCH or GJXFH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Type: |
G657A or G652D |
| Fiber Count: |
1~2 |
| Connector Type: |
Sc/FC PC/APC |
| Cable Type: |
GJXFH or GJYXFCH |
| Length: |
According to Requirement |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Sc or FC |
| Brand: |
HNK or OEM |
| Sheath Material: |
PE, LSZH, PVC |
Product Description

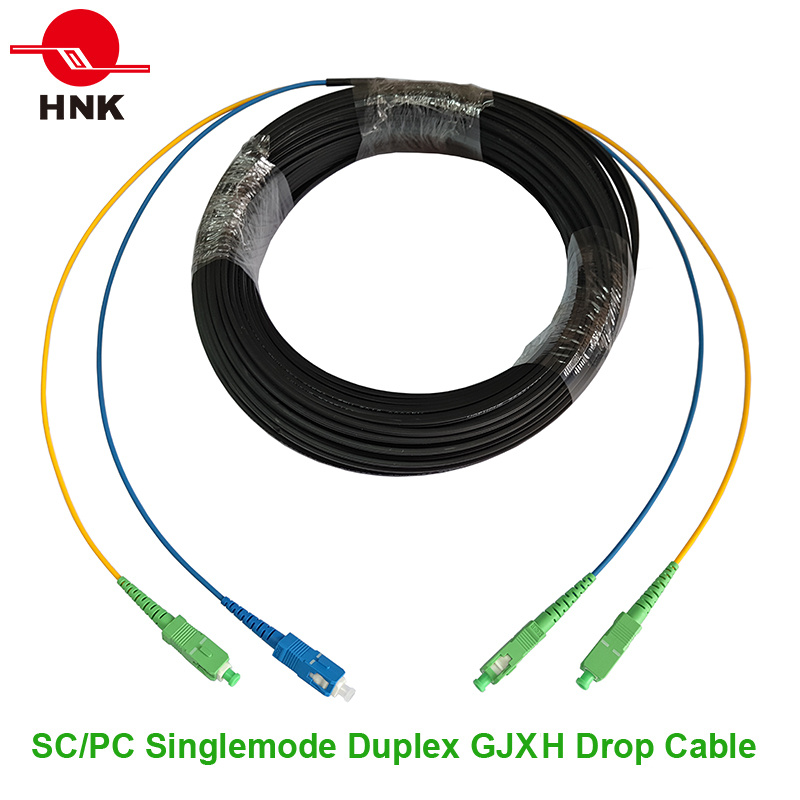

Drop Cable is used in high speed and broadband telecommunication applications. It is suitable for
both indoor and outdoor applications. The indoor fiber construction comprises of two colored optical
fibers, 2 parallel FRP (Fiber Reinforced Plastic) strength members and an LSZH Jacket. The Outdoor
Drop Cable construction is similar to the indoor cable, except the cable jacket is made up of a Flame
Retardant Black PE and has a steel wire for aerial installations. These light weight cables are suitable
for direct installations in villas and multi dwelling units due to their excellent crush and impact resistance
properties.
Complied with or exceeds Standard
. ITU-T G657A2 (B6) . GR-326-CORE
. TIA/EIA-568-C.3 . ANSI/TIA/EIA-455B
. RoHS Compliant Directive 2011/65/EU
Features
. Special low-bend-sensitivity G657 fiber provides high bandwidth
and excellent communication transmission property.
. Two parallel strength members ensure good performance of crush
resistance to protect the fibers.
. Simple structure, light weight and high practicability.
. Novel flute design, easily strip and splice, simplify the installation and maintenance.
. The strong steel passenger provided good tensile load during aerial application.
. Single steel wire or FRP as additional strength member ensuring good
performance of tensile strength.
. Drop cable patch cord will be produced to different kind of connectors
and different length according to the construction need.
Fiber Parameters
| ITEM | Value |
| Fiber type | G657A or G652D |
| Cladding Diameter | 125±0.7 (µm) |
| Cladding non-circularity | ≤0.7(%) |
| Core-cladding concentricity error | ≤0.5 (µm) |
| Mode field Diameter @1310 | 8.4~9.2(µm) |
| Cladding -coating concentricity error | ≤12.0up |
| Coating Diameter | 245±0.5 (µm) |
| Attenuation(max.) | 1310nm | ≤0.4(dB/km) |
| 1550nm | ≤0.3(dB/km) |
| Bend Loss (dB) | Bend Radius | 10 | 15 |
| Bend Turns | 1 | 10 |
| 1550nm | ≤0.75 | ≤0.25 |
| 1625nm | ≤1.5 | ≤1.0 |
Cable Parameters| ITEM | SPECIFICATIONS |
| Fiber Type | SM |
| Fiber count | 1~2 |
Jacket | Diameter | 2.0±0.1mm × 5.1±0.1mm |
| Material | Standard: LSZH Option: PE or other |
| Color | Black or White |
| Strength Member | FRP or Single steel wire |
Mechanical and Environmental Characteristics| ITEMS | UNITE | SPECIFICATIONS |
| GJYXFCH | GJXFH |
| Tension Term(Long Term) | N | 300 | 40 |
| Tension Term(Short Term) | N | 600 | 80 |
| Crush Term(Long Term) | N/100mm | 1000 | 500 |
| Crush Term(Short Term) | N/100mm | 2200 | 1000 |
| Min. Bend Radius(Dynamic) | mm | 30D | 20D |
| Min. Bend Radius(Static) | mm | 15D | 10D |
Ordering InformationUsing the available configurations amend/create product codes using the formula below.
Part Number: DPC-AA-BB-CDEFGCLOrdering Guide| AA | BB | C | D | E | F | G | CL |
Connector
Type | Connector
Type | Fiber Type | Fiber Count | Cable Type | Length | Jacket
Materia | Jacket
Color(CL) |
| FP,SP,SA | FP,SP,SA | G652D
=9/125 G652D
G657A
=9/125 G657A | SX=Simplex
DX=Duplex | FH=GJXFH
CH=GJYXFCH | 0015=1.5M
0200=20M | 1=LSZH
2=PE | As noted in
Color code chart |
Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
| MU | MU | MT | MTRJ | DN | DIN | E2 | E2000 |
Ordering SamplePart Number | Description |
DPC-SP-FP-G657ASXFH10002WH | SC/PC-FC/PC Drop Cable Patch Cord, Singlemode G657A,
Simplex,GJXFH ,PE, White, 100M. |
