FTTH Gpon/Epon PLC Splitter 24c or 48c Gpon/Epon Fiber Optical ABS Box

Name: FTTH Gpon/Epon PLC Splitter 24c or 48c Gpon/Epon Fiber Optical ABS Box
Brand: all-electronics-online.com
SKU: 736827355
Availability: InStock
Rating: 4.5 (63 reviews)

Price:	US $ 0.5/Meter
Trade Terms:	FOB
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLC Splitter
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Od:	0.6/0.9/2.0/3.0mm
Outer Sheath Color:	Yellow
Color Of Fiber /Loose Tube:	Blue,Orange,Green,Brown,Grey,White,Red,Black,Yell
Installation:	Indoor
Waterblocking Material:	Water Blocking Tape or Filling Compound
Sheath:	PVC or LSZH
Fiber Count:	2-288 Core
Brand Of Fiber:	Corning ,Yofc,Draka,Fujikura or as Your Requiremen
Application:	Communication
Connection Structure:	SC
Certification:	ISO9001
Type:	PLC Splitter
Sheath Material:	LSZH or PVC

Product Description

FTTH Gpon/Epon PLC Splitter 24C or 48C Gpon/Epon Fiber Optical ABS Box

Features:
Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide Operating Wavelength
Wide Operating Temperature
Compact design

Applications:
FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks
CATV Networks
Other applications in fiber optic systems

1xN PLC Specifications:

Parameter		Port Configuration
Parameter		1X2	1X4	1X8	1X16	1X32	1X64
Fiber Type		SMF-28e or customer specified
Operating Wavelength(nm)		1260~1650
Insertion Loss(dB)	Typical	3.7	6.8	10.0	13.0	16.0	19.5
Insertion Loss(dB)	Max	4.0	7.2	10.5	13.5	16.9	21.0
Loss Uniformity (dB)	Max	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB)	Min	50	50	50	50	50	50
PDL (dB)	Max	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	Min	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	Max	0.3	0.3	0.3	0.5	0.5	0.8
Temperature Dependent Loss(-40~+85°C)	Max	0.5	0.5	0.5	0.8	0.8	1.0
Operating Temperature (°C)		-40~+85
Storage Temperature (°C)		-40~+85
Packaging Size(mm)		40x4x4	40x4x4	40x4x4	40x4x4	50x7x4	60x12x4

2xN PLC Specifications:

Parameter		Port Configuration
Parameter		2X2	2X4	2X8	2X16	2X32	2X64
Fiber Type		SMF-28e or customer specified
Operating Wavelength(nm)		1260~1650
Insertion Loss(dB)	Typical	3.8	7.4	10.8	14.2	17.0	21.0
Insertion Loss(dB)	Max	4.2	7.8	11.2	14.6	17.5	21.5
Loss Uniformity (dB)	Max	1.0	1.4	1.5	2.0	2.5	2.5
Return Loss (dB)	Min	50	50	50	50	50	50
PDL (dB)	Max	0.2	0.2	0.4	0.4	0.4	0.5
Directivity (dB)	Min	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	Max	0.8	0.8	0.8	0.8	0.8	1.0
Temperature Dependent Loss(-40~+85°C)	Max	0.5	0.5	0.5	0.8	0.8	1.0
Operating Temperature (°C)		-40~+85
Storage Temperature (°C)		-40~+85
Packaging Size(mm)		40x4x4	40x4x4	50x4x4	50x7x4	60x7x4	60x7x4

Note: Above specfication is base on the devices without connector, with connector, IL should add 0.3dB.

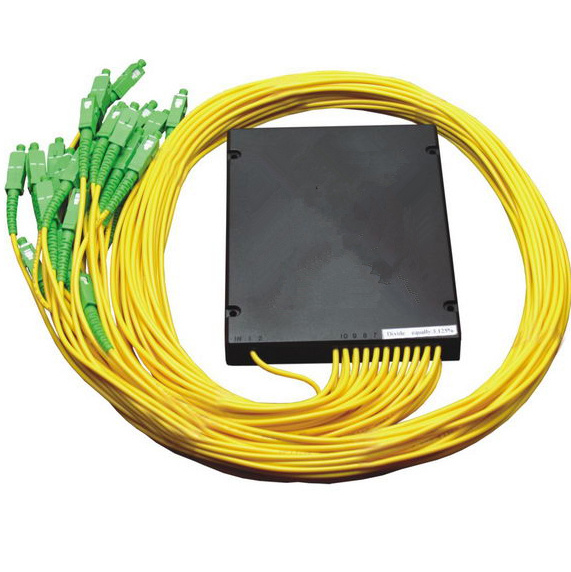

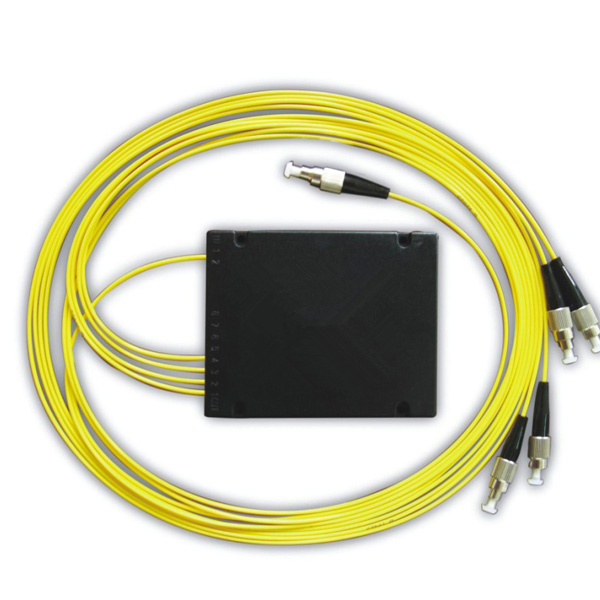

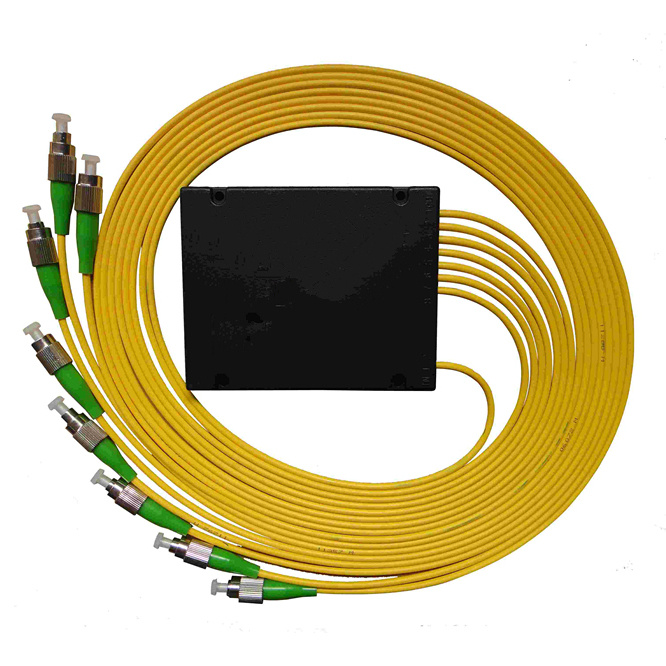

Gpon/Epon Fiber Optical Splitter ABS Box PLC Splitter

Gpon/Epon Fiber Optical Splitter ABS Box PLC Splitter

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
