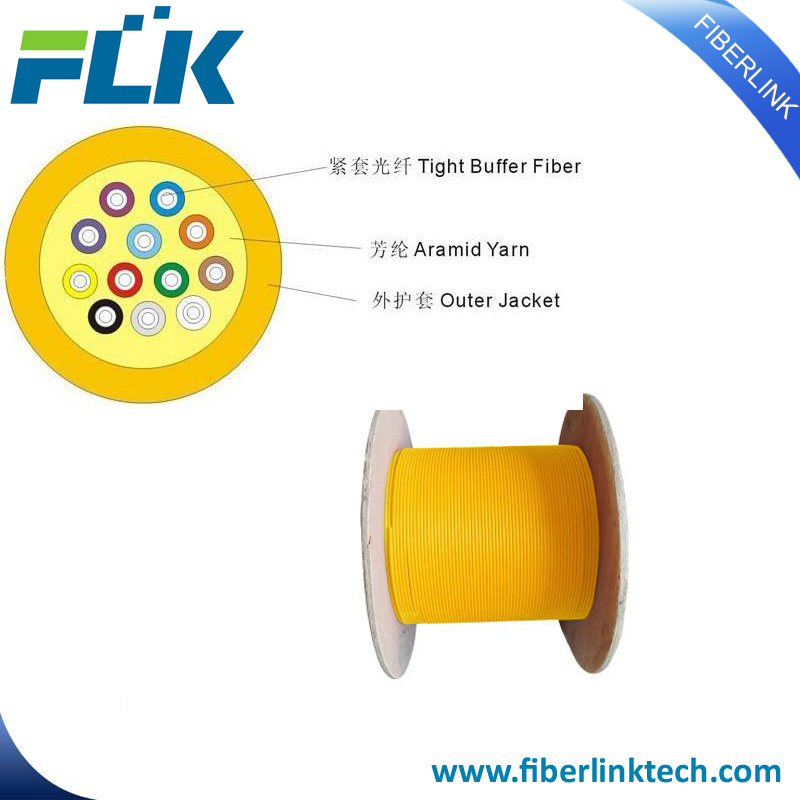

FTTH Indoor Distribution Tight Buffer Fiber Optical Cable GJFJV
| Price: |
US $ 0.8-2.5/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
Indoor Distribution Tight Buffer Fiber Optical Cab |
| Fiber Style: |
Sm G652D, mm |
| Fiber Brand: |
Yofc, Corning, Fiberhome, Fujikura, Ofs etc |
| Sheath Color: |
Orange, Can Be Required. |
| Length Of Cable: |
Generally Is 2km, Can Be Required. |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
According to Customers Request |
| Sheath Material: |
PE, LSZH, PVC (Can Be Required). |
Product Description
FTTH Indoor Distribution Tight Buffer Fiber Optical Cable GJFJV
1.Cable Description
Indoor Distribution Tight Buffer Optical Cable uses 2~24 core 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium.
The tight buffer fiber wrapped with a layer of aramid yarn as strength member, then completed with a layer of PVC or LSZH material as out jacket.

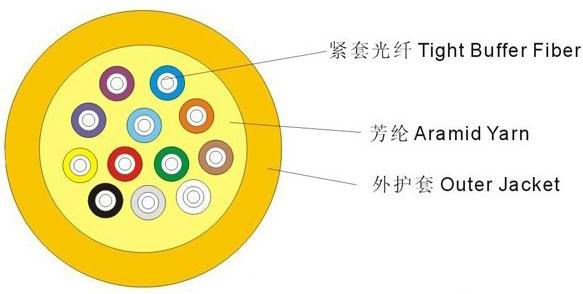

2. Cable Drawing
Note: Structure drawing just for reference, please check the following details.
- Applications
- Used in pigtails and patch cords
- Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distribution frames
- Used in indoor cabling, especially used as distribution cable
4. Characteristics:
- Good mechanical and environmental characteristics
- Flame retardant characteristics meet the requirements of relevant standards
- The mechanical characteristics of jacked meet the requirements of relevant standards
- Soft, flexible, easy to lay and splice, and with big capacity data transmission
- Meet various requirements of market and clients.
5. Cable construction details:| Technical Parameters: |
| Cable Count | Outside
Diameter | Tight buffer
Diameter | Weight | Mini allowable
Tensile Strength
(N) | Mini allowable Crush Load
(N/100mm) | Minimum Bending Radius (MM) | Storage
temperature |
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (ºC) |
| 04 | 4.0 | 0.9 | 22.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 06 | 5.0 | 0.9 | 23.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 08 | 5.5 | 0.9 | 27.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 10 | 5.5 | 0.9 | 30.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 12 | 6.0 | 0.9 | 35.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 24 | 8.0 | 0.9 | 48.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
- Standard color of tight buffer
The color of the tight buffer shall be in accordance with the table as below:| Standard Colors Identification |
|
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
- Cable Mechanical characteristics
| Fiber style | Unit | SM
G652D | MM
50/125 | MM 62.5/125 |
| condition | nm | 1310/1550 | 850/1300 | 850/1300 |
| attenuation | dB/km | ≤0.34/0.22 | ≤3.0/1.0 | ≤3.0/1.0 |
| Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ..... | ..... |
| 1550nm | Ps/(nm*km) | ≤22 | ..... | ..... |
| Bandwidth | 850nm | MHZ. KM | ..... | >=400 | >=160 |
| 1300nm | MHZ. KM | ..... | >=800 | >=500 |
| Zero dispersion wavelength | nm | >=1302,
≤1322 | ..... | ..... |
| Zero dispersion slope | nm | ≤0.091 | ..... | ..... |
| PMD Maximum Individual Fiber | | ≤0.2 | ..... | ..... |
| PMD Design Link Value | Ps(nm2*km) | ≤0.08 | ..... | ..... |
| Fiber cutoff wavelength λc | nm | >=1180,≤1330 | ..... | ..... |
| Cable cutoff wavelength λcc | nm | ≤1260 | ..... | ..... |
| MFD | 1310nm | um | 9.2±0.4 | ..... | ..... |
| 1550nm | um | 10.4±0.8 | ..... | ..... |
| Numerical Aperture(NA) | | ...... | 0.200±0.015 | 0.275±0.015 |
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.10 | ≤0.10 |
| Irregularities over fiber length and point discontinuity | dB | ≤0.05 | ≤0.10 | ≤0.10 |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0.08 | ≤0.10 |
| Attenuation uniformity | dB/km | ≤0.01 | ....... | ....... |
| Core diameter | um | ...... | 50±1.0 | 62.5±2.5 |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 242±7 | 242±7 |
| Coating/chaffinch concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | ≤4 | ..... | ..... |
- Requirement for Order:
- Fiber sort: Single mode G652, G655, G657, Multi mode 50/125, 62.5/125, OM3, OM4.
- Fiber brand: YOFC, Corning, Fiberhome, Fujikura, OFS etc.
- Sheath material: PE, LSZH, PVC (can be required).
- Sheath color: Orange, can be required.
- The fiber and tube color: according to stranded color, can be required.
- The cable Size: shall be in accordance with the table, can be required.
- Length of cable: generally is 2KM, can be required.
- Other requirements can be negotiated.
9. Cable marking
The cable sheath shall be marked with white characters at intervals of one meter with following information:- Purchaser's name
- Fiber type and counts
- Cable type
- Name of manufacturer
- Country of origin
- Length marking
10. Packing Informations
- Packing material: Wooden drum
- Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customer
11. Our certificates:
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
12. Testing Lab:
| No | Device name | No | Device name |
| 1 | Optical time domain reflectometer (OTDR) | 8 | GNZV Cable Torsion Testing Machine |
| 2 | Fiber Polarization Mode Dispersion | 9 | GQNV Cable Flexing Testing Machine |
| 3 | Fiber Dispersion, Strain Tester | 10 | GJRV Cable Winding Testing Machine |
| 4 | High Low Temperature Test Chamber | 11 | GZDV Cable Vibration Testing Machine |
| 5 | Cable Impact Testing Machine | 12 | Cable Water Penetration Test |
| 6 | Cable Squash Tensile Testing Machine | 13 | Fusion Splicer |
| 7 | GWQV Cable Bending Tester | 14 | Cable Water Penetration Test Rig |
Fiber Optic Cable Mechanical Performance Testing Laboratory- Main Testing Type: Precision Test and Mechanical Test.
- Precision Testing Machine: EXFO OTDR, EG&G PMD-440, CD-400.
- Mechanical Performance Testing: Temperature, Impact, Tensile, Bending, Torsion, Flexing, Winding, Vibration, Water Penetration, Fusion Splicer, Water Penetration.
Related products

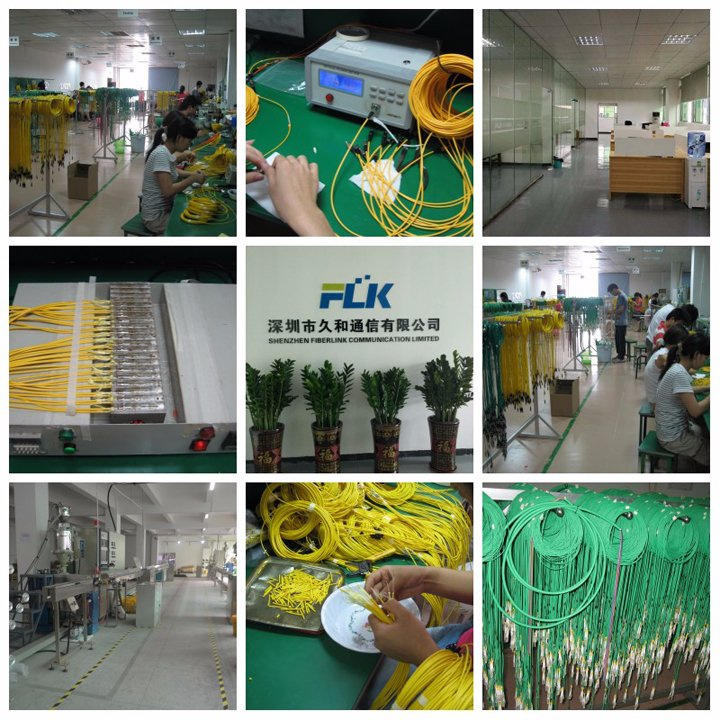

Our fiber patch cord production line:

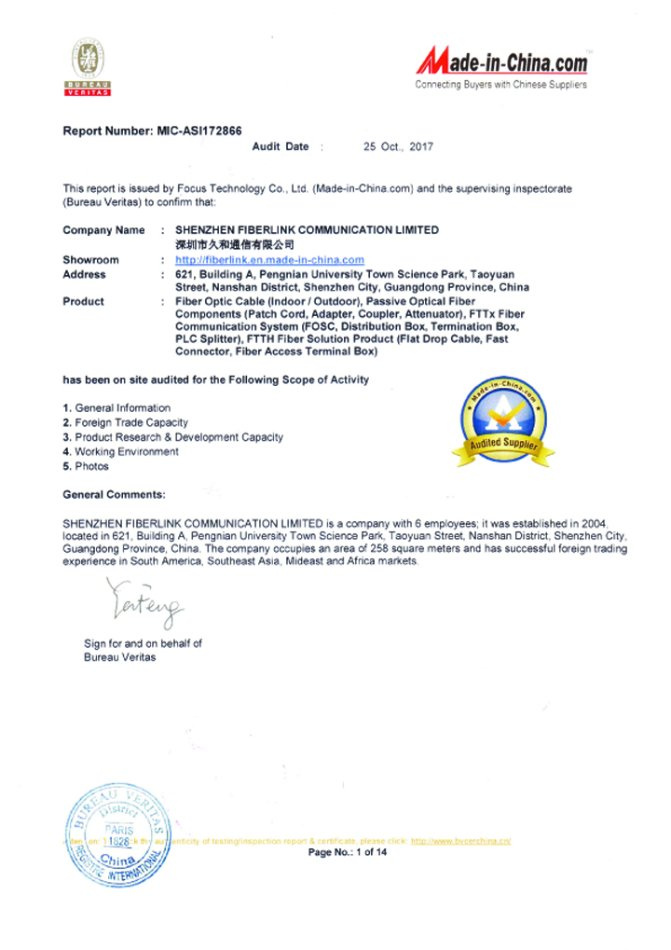

Certifications
