FTTH Koc-Fcs-02 Socket

Name: FTTH Koc-Fcs-02 Socket
Brand: all-electronics-online.com
SKU: 772582815
Availability: InStock
Rating: 5 (142 reviews)

Price:	US $ 0.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KOC-FCS-02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Box:	FTTH Box
Socket:	Fiber Optic Socket
Type:	Single-mode Fiber
Connection Structure:	SC
Material Shape:	Flat Wire
Allowed Lateral Pressure:	100（N/100mm)<1000（N/100mm）
Allowed Tensile Strength:	100N<1000N
Core:	Double Core
Certification:	CE, RoHS
Sheath Material:	PVC
Application:	Communication

Product Description

Description:
Used in the end termination of residential buildings and villas,to fix and splice with pigtails.
Features:
-small size,light weight,pleasing in apperance
-wall mounted with mechanical protection function
-max fiber capacity 4-16 fibers,4-16 adapter output
-available for FC,SC,ST,LC adatpers
-hinge and convenient press-pull button lock design

Sepecifications:

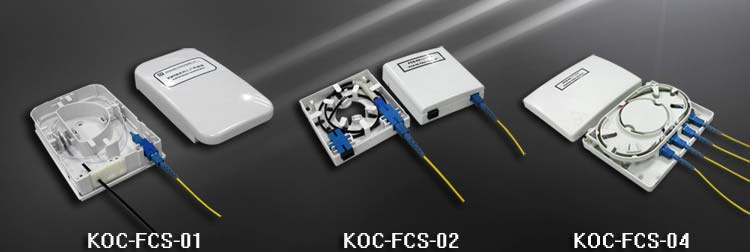

Item KOC-FCS-01 KOC-FCS-02 KOC-FCS-04
Size(H*W*D)mm 202*112*38 86*55*22 150*110*33
Cable diameter(mm) 5~10
Cable ports 1 2 4
Max capacity of splice 4 core 8 core 16 core
KOC-FCS-

KOC-FCS-01
Small size, light weight, pleasing in appearance
Can be installed on the wall with mechanical protective function
May adapt variety of optical connection styles.
Set strengthen device and fiber optic cable mounting seat
SC 2 cores,LC 4 cores
Suitable for indoor wall mount

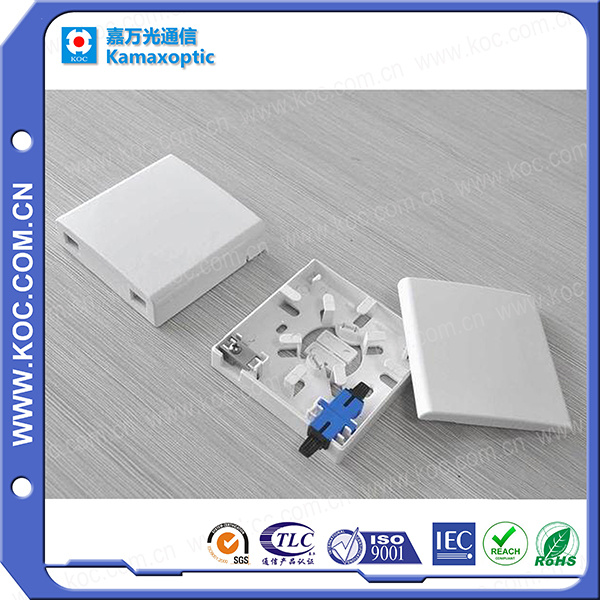

KOC-FCS-02
Used in FTTH indoor application,home or work area
Provide users with optical access or data access
Suitable for 2 pcs SC adapters
May store surplus fiber inside,easy for operation
KOC-FCS-04
Environmental Temperature:-25ºC~40ºC;
Max capacity: 4 fibers
Self-clip design,easy to operate.
