FTTH Mini Optical Receiver CATV Node

Name: FTTH Mini Optical Receiver CATV Node
Brand: all-electronics-online.com
SKU: 692341372
Availability: InStock
Rating: 4.3 (119 reviews)

Price:	US $ 15-25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SR1001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	FTTH/FTTB
Input Optical Connector:	Sc/APC or FC/APC
Input Optical Power:	-7~+2dBm
Receive Wavelength:	1100~1600nm
Optical Fiber Type:	Single Mode
Frequency Range:	45~ 862/1003MHz
Power Consumption:	<3W
Power Supply:	12VDC
Dimensions:	1056724mm
Operating Temperature:	-20 - +55
Type:	Fiber Transceiver
Wiring Devices:	Integrated Wiring

Product Description

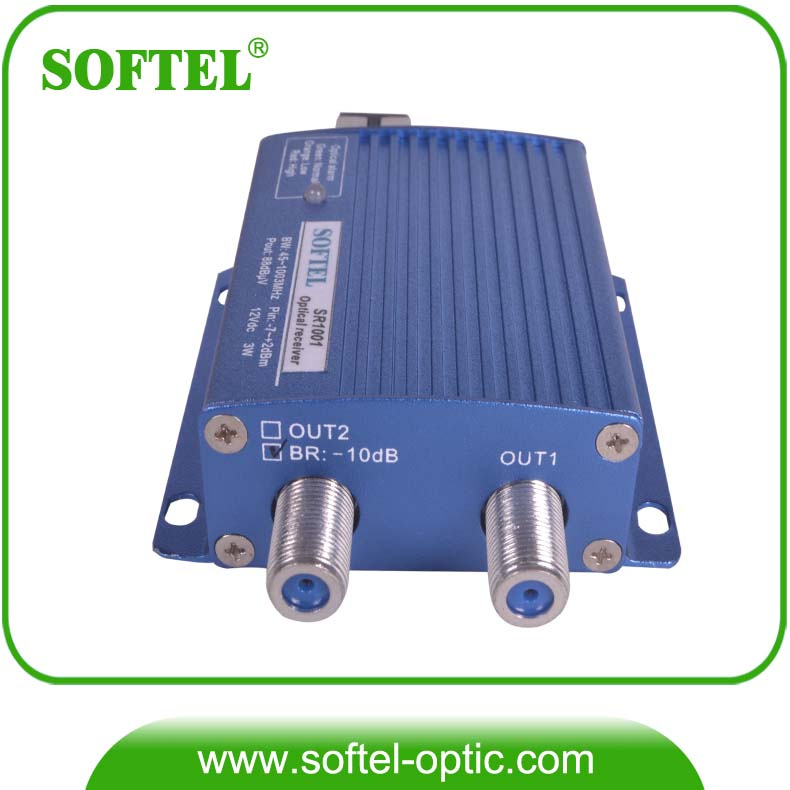

[SOFTEL] FTTH Mini Optical Receiver CATV Node SR1001

1. Product Summary

SR1001 Optical receiver is the featured product that we specially designed for FTTH- Fiber to the Home network structure. With small shell, compact and reasonable internal circuit structure and excellent performance indicators. It is the first choice for residential area and home fiber optic network.

2. Performance Characteristics

1. Forward RF branch output, 75Ω Impedance.
2. Adopt GaAs amplifier device.
3.12V DC voltage power supply.
4. Small size and easy to install.

Item	Unit	Technical Parameter
Forward optical receiving part
Optical Parameters
Receiving Optical Power	dBm	-7 ~ +2
Optical Return Loss	dB	> 45
Optical Receiving Wavelength	nm	1100 ~ 1600
Optical Connector Type		SC/APC
Fiber Type		Single Mode
Link performance
C/N	dB	≥ 51	-1dBm optical power receive
C/CTB	dB	≥ 65
C/CSO	dB	≥ 62
RF Parameters
Frequency Range	MHz	45~ 862/1003
Flatness in Band	dB	±0.75
Rated Output Level	dBμV	≥ 88
Output Return Loss	dB	≥ 16
Output Impedance	Ω	75
Consumption	W	<3
Operating Temperature	ºC	-20__+55
Dimension	mm	1056724

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
