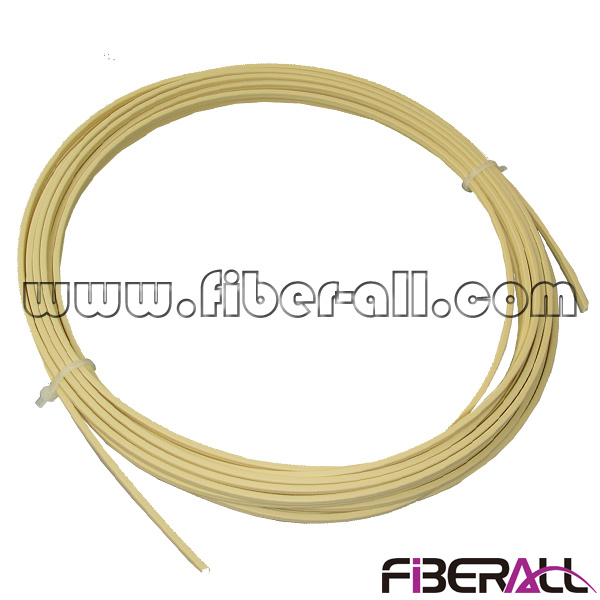

FTTH Optical Fiber Drop Cable 2 Fibers Krp LSZH Yellow

Name: FTTH Optical Fiber Drop Cable 2 Fibers Krp LSZH Yellow
Brand: all-electronics-online.com
SKU: 686808901
Availability: InStock
Rating: 4.6 (143 reviews)

Price:	US $ 0.1-0.5/Meter
Min Order:	2000/Meter
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FA-FXDP0102A
Jacket Material:	LSZH
Fiber Type:	G657A
Color Of Jacket:	Yellow
Strengthen Member:	ARP/Krp
MOQ:	2km
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Customized
Sheath Material:	LSZH

Product Description

FA-FXDP0102A, FTTH optical fiber drop cable, 2 fibers, with ARP strengthen member, LSZH Jacket, Yellow

Cable description:
Construction: colored optical fibers, 2 parallel ARP (Aramid Reinforced Plastic)or FRP strength member steel wire strengthen number, LSZH Jacket

Optical, mechanical and geometrical parameters table of optical fiber (G657A):

Items	Units	Specifications
Attenuation	dB/km	≤0.36 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion	Ps/nm.km	≤3.5 at 1285~1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength	Nm	1302~1322
Zero Dispersion Slope	Ps/nm.km	≤0.095
Cut-off Wavelength	Nm	≤1260
Mode Field Diameter (MFD)	Um	1310 9.2±0.4 1550 10.4±0.8
Mode Field Concentricity	Um	≤0.8
Cladding Diameter	um	125±1.0
Cladding Non-circularity	%	≤1
Coating Cladding concentricity error	Um	≤12
Coating Diameter	um	245±1.0
Proof test	kpsi	≥100

Construction of optical fiber cable:

Items	Description
No. of fiber	1, 2 or 4
Fiber model no.	Single mode: G.657A
Fiber colour	Blue, orange or customized
Outer diameter of colour coating	250±15um
Dielectric strength member	ARP or FRP or Steel wire
Jacket	LSZH
Colour of Jacket	Yellow, White or Black
Size of optical fiber cablewidth height	3.1±0.2mm 1.9±0.2mm
Approx. weight cable Kg/KM	9.0±1.0kg/km

Mechanical and environmental data:

Temperature range	Storage/Shipping Temperature range Operating temperature range	ºC	-10ºC-- +75ºC
Min.Bending Radius (mm)	Dynamic	mm	20H
Min.Bending Radius (mm)	Static	mm	10H
Max.Tension (N)	Short-term	N	380
Max.Tension (N)	Long-term	N	200
Max.Crushing Resistance (N/100mm2)		N/100mm2	500

Shenzhen Fiberall Technology Co., Ltd was started in 2007 and we are located in Shenzhen China. As a company engaged in fiber optical engineering related products, our main business including: Research and development (R&D), manufacturing, marketing; Optical engineering solution design; Maintenance, consulting service and accessories outsourcing.

Our main products are: All kinds of Fiber PLC Splitters, FBT Couplers, Fiber Cable Assemblies, Patch Cords, Fiber Pigtails, Fiber Adapters, Patch Panels, Fiber Optical Transceivers, OLT (Optical Line Terminal), OUN (Optical Network Unit), FTTX, Equipments & Accessories for Fiber Test, Installation, Maintenance & Repair.

With eight years' experience in fiber optic, Fiberall established a relatively perfect products and service system, with rich industry experience, comprehensive technology and high-quality team, we are able to provide our customers with OEM & ODM service, project implementation, maintenance, and after-sale service and we have ability to meet different requirement from different customers like distributors, operators, contractors and users etc.
