FTTH Sc/APC Fiber Optic Quick Field Assembly Fast Connector for CATV Network
| Price: |
US $ 0.38-0.4/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
DF-CNNT-002 |
| Products Name: |
Sc/Upc Fiber Optic Quick Field Assembly Connector |
| Type: |
Sc |
| Fiber Cable: |
3.1*2.0mm Drop Cable |
| Fiber And Coating Diametere: |
125um&250um |
| Applicable Model: |
Single Model and Multi-Mode |
| Insertion Loss: |
Less Than 0.5dB(1310nm&1550nm) |
| Return Loss: |
More Than 50dB |
| Reusability: |
Less Than 40 Times |
| Temperature Range: |
-40~+85ºC |
| Lifetime: |
30 Years |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

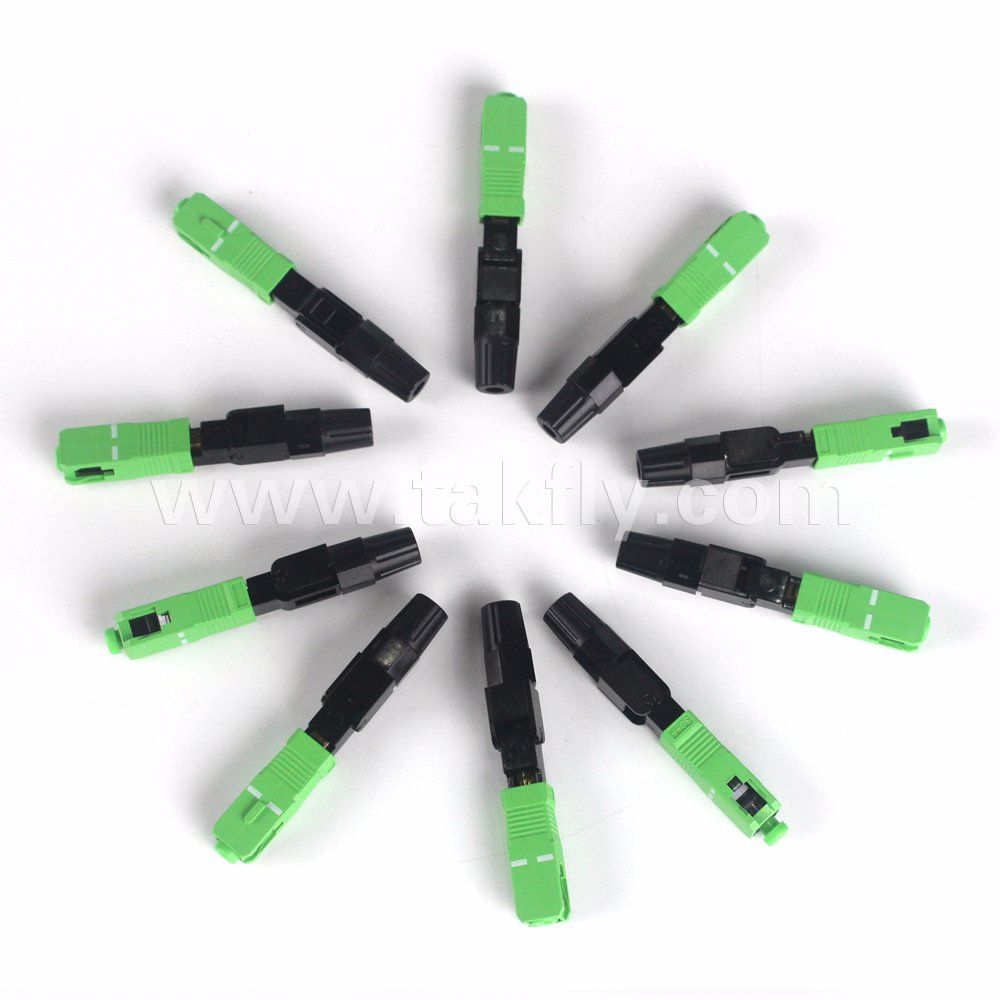

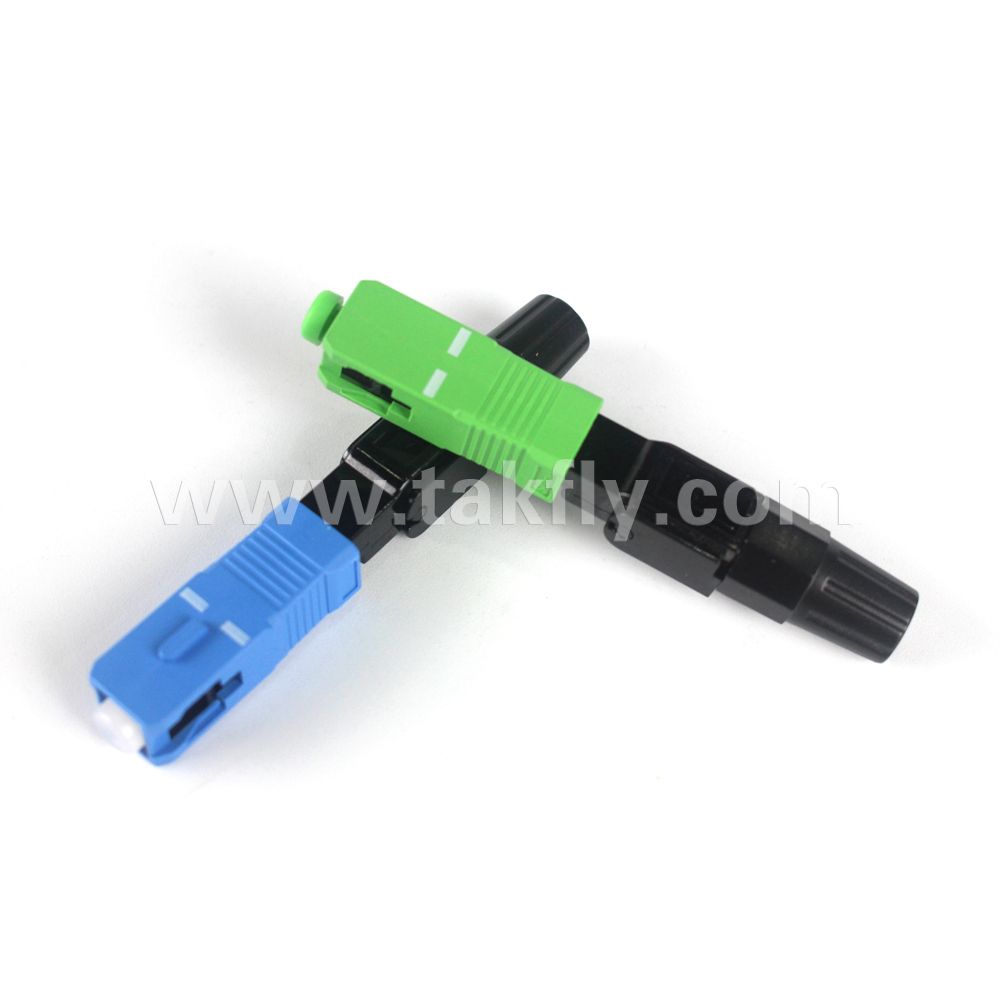

FTTH SC/APC Fiber Optic Quick Field Assembly Fast Connector for CATV Network
1.DescriptionFiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector. it is designed for high quality and high efficiency for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. Adapted fiber pre-installed structure, and convenient for field installation.2.Applications1. Patch panels;
2. Distribution frames;
3. Maintenance or emergency restoration of fiber networks;
4. FTTH Outlets;
5. Connection at the desk for LAN environments;
6. Fiber Optic Patch Cord & Pigtail;
7. Telecommunication Devices;
8. Data Communications Networks;
9. Optical Fiber LAN and Access Network;
10. Industry and Military Applications;3.Feature1.Factory-installed fiber stub;
2.No epoxy or polishing required;
3.Quick and easy fiber termination in the field;
4.Eliminates cable excess length and pigtail splice storage;
5.Cost effective;4.Specification | Series | SC/APC SC/UPC |
| Applicable Cable | P3 X 2 Rubber-insulated wire | Φ3.0 Fiber |
| Fiber Diameter | 125μm | 125μm |
| Coating Diameter | 250μm | 250μm |
| Fiber Mode | SM OR MM | SM OR MM |
| Installation Time | ≤40S | ≤40S |
| Construction Site Installation Rate | ≥99% | ≥99% |
| Insertion Loss | ≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm) | ≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm) |
| Return Loss | 45dB(average 50dB) | 45dB(average 50dB) |
| Tensile Strength | >30 | >20 |
| Working Temperature |
-40°C~+70 °C
| -40°C~+70 °C
|
Reusability
| ≥50 | ≥50 |
Normal Life
| 30 years | 30 years |
5.Relevant Solutions1.Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project;
2.With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design;

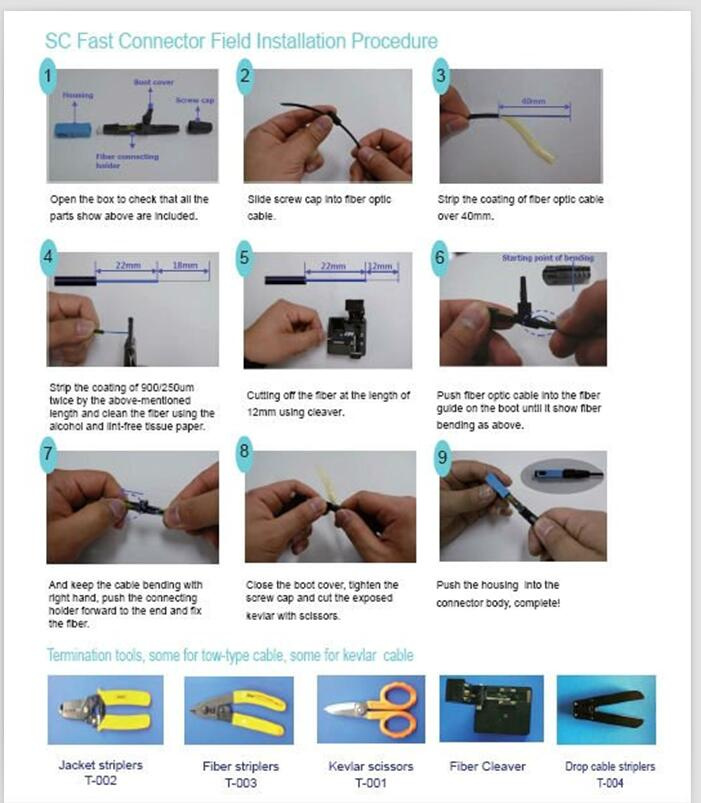

3.Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU;6.How to use our fast connector

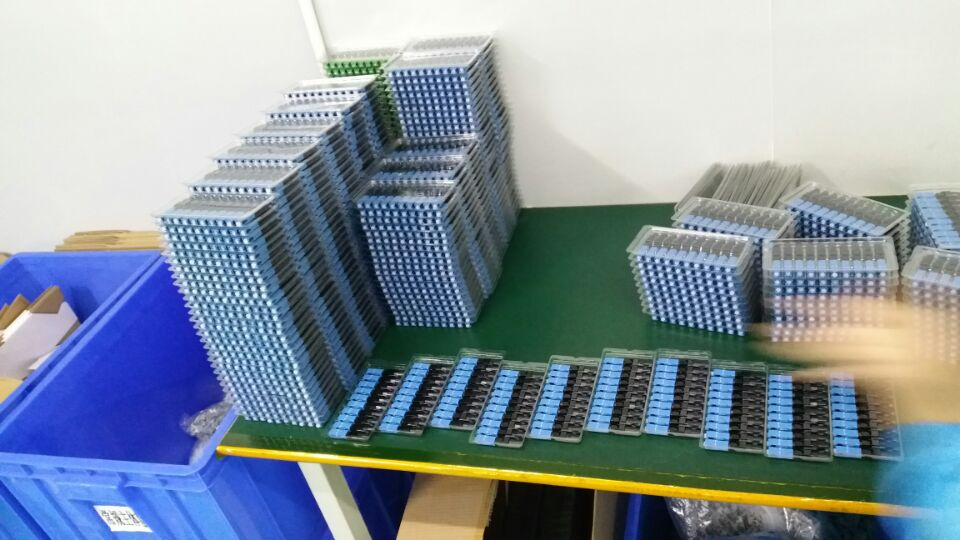

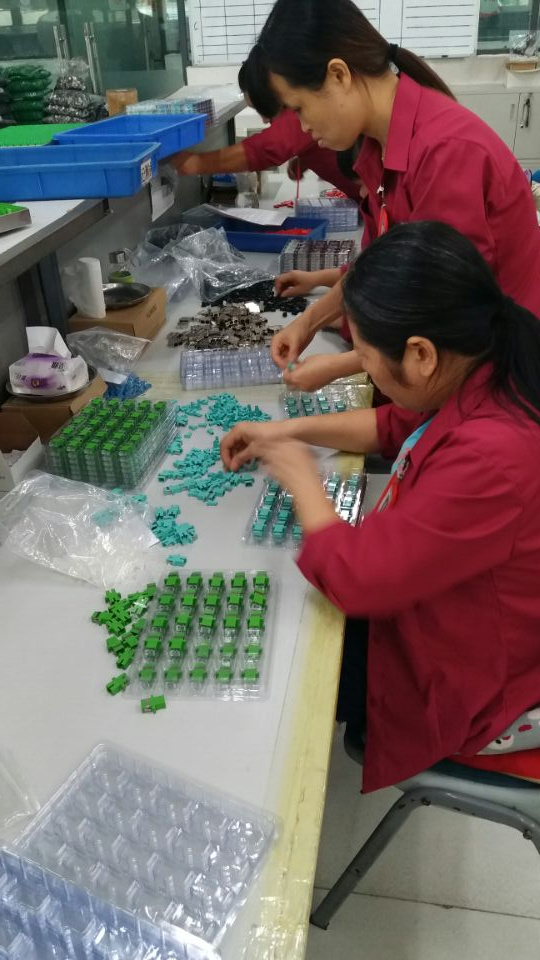

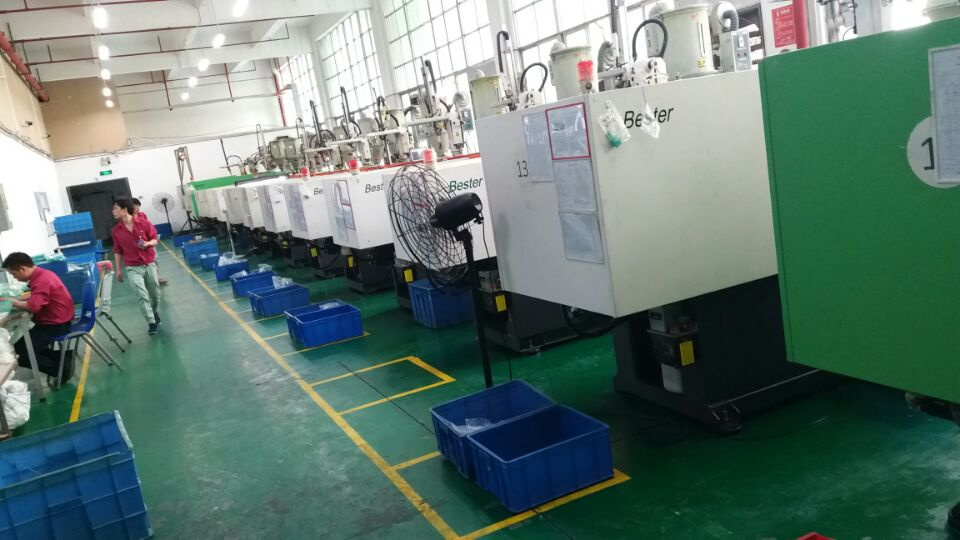

7.Our item and factory images
8.Company InformationTakfly, established in 2000, has been manufacturing and exporting fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. and goods have passed RoHS, CE, FCC, REACH, EN50575, ISO9001, etc.
So far, Our products have been widely installed in many big worldwide project and work perfectly. Many project contactors ask the first and second operators to purchase fiber items from Takfly for their new project. In addition, we also have builted long term cooperation with Lapp, Amper, Telefonica, orange and Ericsson. All enquiry are warmly welcomed here no matter it's small or big, we promise to provide all customers high quality and good price item.9.Why choose Takfly?Service
1.Customer's logo: Acceptable;
2.General inspection on fixing before packing;
3.Third party inspection: Acceptable;
Quality Control
All products must go through five checks before manufacturing process;
1.Material incoming inspection before production;
2.Full check after every individual process finished;
3.Full check after production half-done;
4.Full check before packing;
5.Spots check after production packed before shipping;
Advantage
1.15 years experience in manufacturing fiber optic products;
2.Availability of R & D with more than 10 engineers;
3.Available of design and making mold with special molding house;
4.High quality, attractive price and fast delivery(2-7days);
5.OEM, ODM customer designs are also welcomed;
6.More than 200 workers;
7.Excellent service;
Delivery
1.Packing: Plastic bag& carton, Neutral packing or as your required;
2.Sample time: 1-3 days after confirm;
3.Order lead time: 2-7working days depend on quantity and products;
4.Shipping port: Shenzhen China or HK;
5.Shipping term: EXW or FOB;
Shipping
1.Once confirmed the order, and payment sent after finishing goods;
2.Goods will be sent within 7 days with the fast, reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc;
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility;
4.Please do not bid if you disagree with the shipping and handling charge;Pls kindly note we not only wanna to seek an opportunity to work with you, but also regard you as our friend. All inquiries from your side will be warmly welcomed here. You can call at 0086 13537892205 to reach me.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
