FTTH Sc Fast Connector/Fiber Optical Connector/Fiber Optic Fast Connector

Name: FTTH Sc Fast Connector/Fiber Optical Connector/Fiber Optic Fast Connector
Brand: all-electronics-online.com
SKU: 684400161
Availability: InStock
Rating: 4.7 (111 reviews)

Price:	US $ 0.1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC Fast Connector
Type:	Sc Fast Connector
Connector:	Sc,FC,St,LC Optional
Fiber Mode:	Sm or mm
Polish:	Upc/APC
Fiber Diameter:	125um
Coating Diameter:	250um
Certificate:	Ce, RoHS
Payment Term:	T/T, Western Union, L/C, Paypal etc.
Service:	Perfect After-Sale Service
Shipment:	by Sea, Air Cargo, DHL, UPS, EMS etc.
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)

Product Description

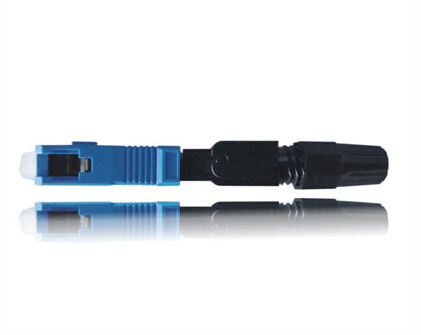

FTTH SC Fast Connector/Fiber Optical Connector/Fiber Optic Fast Connector

Mechanical Field-Mountable Fiber Optic Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embeded Tech with superior ceramic ferrule and aluminum alloy V-groove.. Also, transparent design of the side cover which allows visual inspection.
Connector Type : SC,FC,ST,LC optional.

Applications:
Fast Ethernet,Data Communication LAN and WAN
High speed Enterprise servers
Multiplexers,switches and routers
Optical Access and ATM Networks Equipment
Optical Transport and Telecommunications,FTTH,FTTD,FTTX
Switching Equipment

Parameter:

Series	SC/APC SC/UPC
Applicable cable	P3 X 2 Rubber-insulated wire	Φ3.0 Fiber
Fiber diameter	125μm	125μm
Coating Diameter	250μm	250μm
Fiber mode	SM OR MM	SM OR MM
Installation time	≤40S	≤40S
Construction site installation rate	≥99%	≥99%
Insertion loss	≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm)	≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm)
Return loss	45dB(average 50dB)	45dB(average 50dB)
Tensile strength	>30	>20
Working temperature	-40°C~+70 °C	-40°C~+70 °C
Reusability	≥50	≥50
Normal life	30 years	30 years
