FTTH SC Fiber Optic Quick Assembly Fast Connector

Name: FTTH SC Fiber Optic Quick Assembly Fast Connector
Brand: all-electronics-online.com
SKU: 733093212
Availability: InStock
Rating: 4.6 (40 reviews)

Price:	US $ 1-4/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	57
Interferometer:	APC Type
Radius Of Curvature:	5mm~12mm
Apex Offset:	Max. 50um
Fiber Height:	50nm
Conformance:	TIA/EIA 604-4
Housing Color:	Green
Cable OD:	3.0mm
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	APC
Light Source TYPE:	Fiber

Product Description

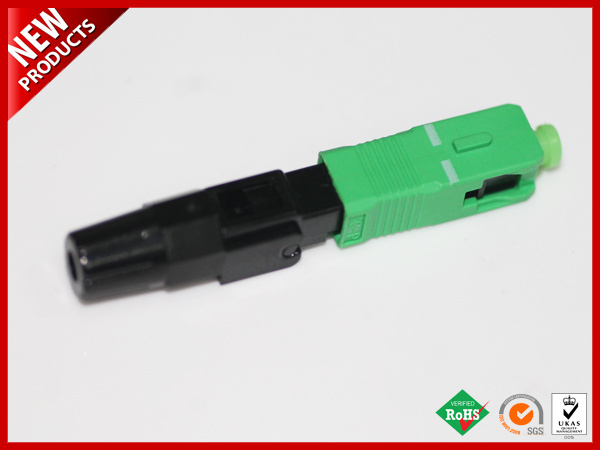

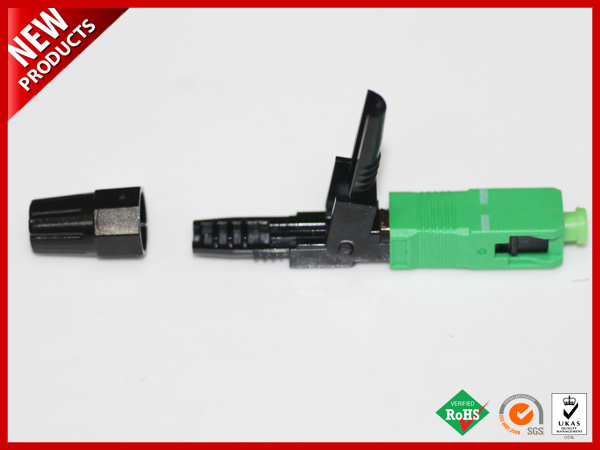

FTTH SC Fiber Optic Quick Assembly Fast Connector

Description

This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.

Feature

Comply with TIA/EIA and IEC;
Quick and easy fiber termination;
RoHS compliant;
Reusable termination capability [Up to 5 times];
Easy to deploy fiber solution;
High success rate of connections;
Low Insertion & Back Reflection;
No special tools required.

Application

All fiber interconnection;
Telecom Distribution and Local Area Networks;
FTTH and FTTx;
Passive optical networks [ATM, WDM, Ethernet];
Broadband, Cable TV(CATV).

Specifications

Interferometer	UPC Type	APC Type
Radius Of Curvature	7mm~25mm	5mm~12mm
Apex Offset	Max. 50µm	Max. 50µm
Fiber Height	-50nm~50nm	-50nm~50nm
Tile Error on APC 8˚	None	±0.3

Dimensions

	SC Type	LC Type	ST Type	FC Type
Conformance	TIA/EIA 604-3	TIA/EIA 604-10	TIA/EIA 604-2	TIA/EIA 604-4
Ferrule	Ceramic(Zirconia)
Housing Color	Single Mode PC type: Blue Single Mode APC type : Green Multimode PC type: Beige
Cable type	50μm/900μm 2.0mm/3.0mm 2.0mm X 3.0mm 1.6mm X 2.0mm Universal Type	250μm/900μm 2.0mm 1.6mm X 2.0mm	250μm/900μm 2.0mm	250μm/900μm 2.0mm/3.0mm 2.0mm X 3.0mm 1.6mm X 2.0mm
