| Prod Model: |
Loop Back Fiber Optic Patchcord |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
Manufacturer |
| Fiber Type: |
G652D, G655, G657, Om1/Om2/Om3/Om4 |
| Polishing: |
PC, Upc, APC |
| Core Number: |
Simplex |
| Operating Temperature: |
-40c~+80c |
| Fiber Mode: |
Single Mode or Multi-Mode |
| Cable Diameter: |
0.9mm, 2.0mm, 3.0mm |
| Operation Wavelenghth(Nm): |
1310/1550nm |
| Payment Terms: |
Tt/Paypal/LC |
| Jacket Material: |
PVC/Lszhofnp/Ofnr |
| Application: |
FTTH, FTTB, LAN, CATV, Testing |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
Sc/LC |
| Brand: |
Takfly |
Product Description

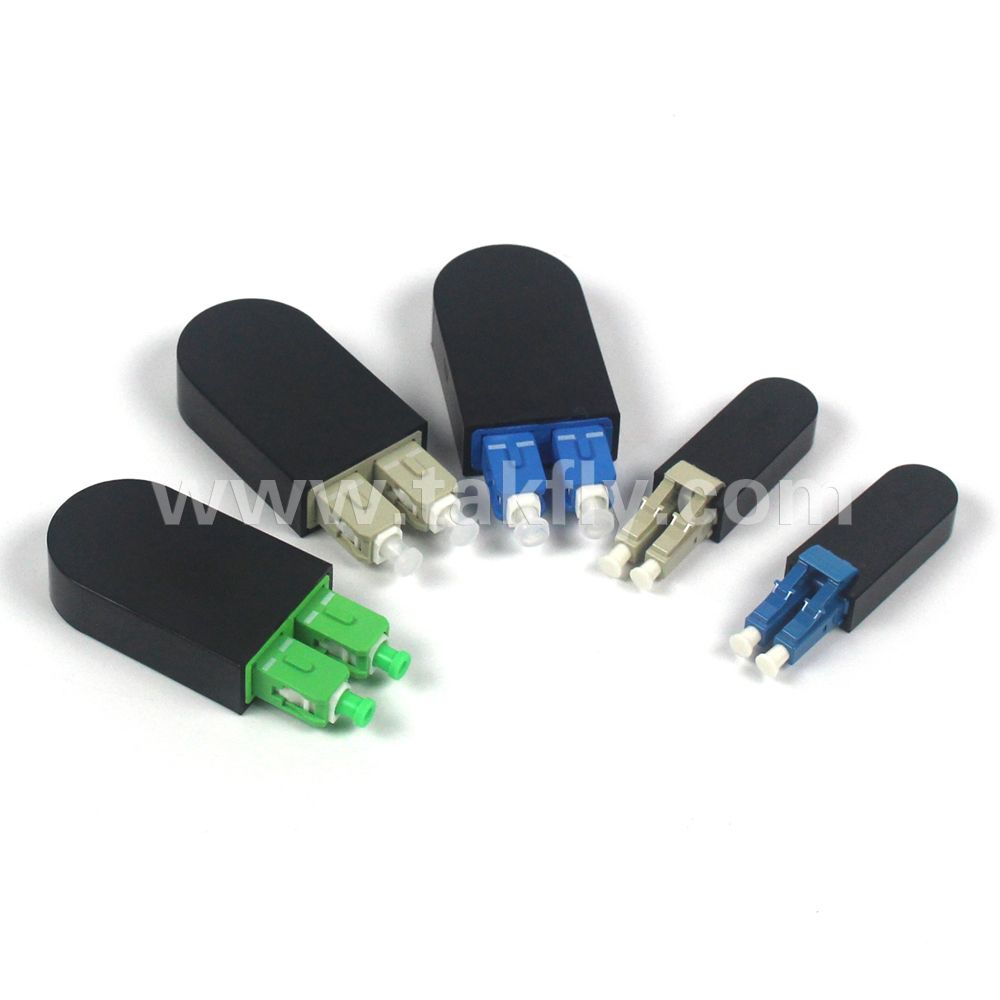

FTTH Single Mode Multimode Loop Back Fiber Optic Patchcord
Fiber loopback assemblies provide you with a looped signal from the source device to hardware for testing purposes. This allows for a signal check for both the transmit and receive functions.
FeaturesUsed in testing applications
100% functionally tested
Available in various connector types
SC/LC duplex clip is available for insertion accuracy
8 inches standard length
Custom length also available upon request
ApplicationsEquipment Interconnection
Device Pig-tailing
Premise Networks
Patch Panel Applications
Communications Connections
SpecificationsConnector Types: SC, LC, MU, MTRJ
Polish Types: PC, UPC, APC
Insertion Loss (Typical): 0.15 dB MTRJ: 0.30 dB
Insertion Loss (Maximum): 0.30 dB MTRJ: 0.50 dB
Durability: < 0.2dB (500 cycles)
Operational Temperature: -20C to +70C
Specification: | Item | Unit | Parameter |
| Operating Wavelength | Nm | 1310/1550 |
| Attenuation Range | dB | 1-10dB(1dB step), 15, 20, 25, 30dB |
| Return Loss | dB | PC:≥50 UPC: ≥55 APC: ≥60 |
| Attenuation Tolerance | dB | ≤1.0 (11-30dB) |
| Working Temperature | degC | -25C~+75C |
| Storage Temperature | degC | -40C~+ 85C |
