FTTX Fiber Distribution Box Wall Mount Case

FTTX Fiber Distribution Box Wall Mount Case
Price: US $ 28-38/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: UNWM-XX-CTYPE-8-CTYPE-S
Usage: CATV, LAN/Wan,FTTX
Type: Wireless
Support Network: Ethernet
Information Content: Data
Certification: RoHS
Condition: New

Product Description

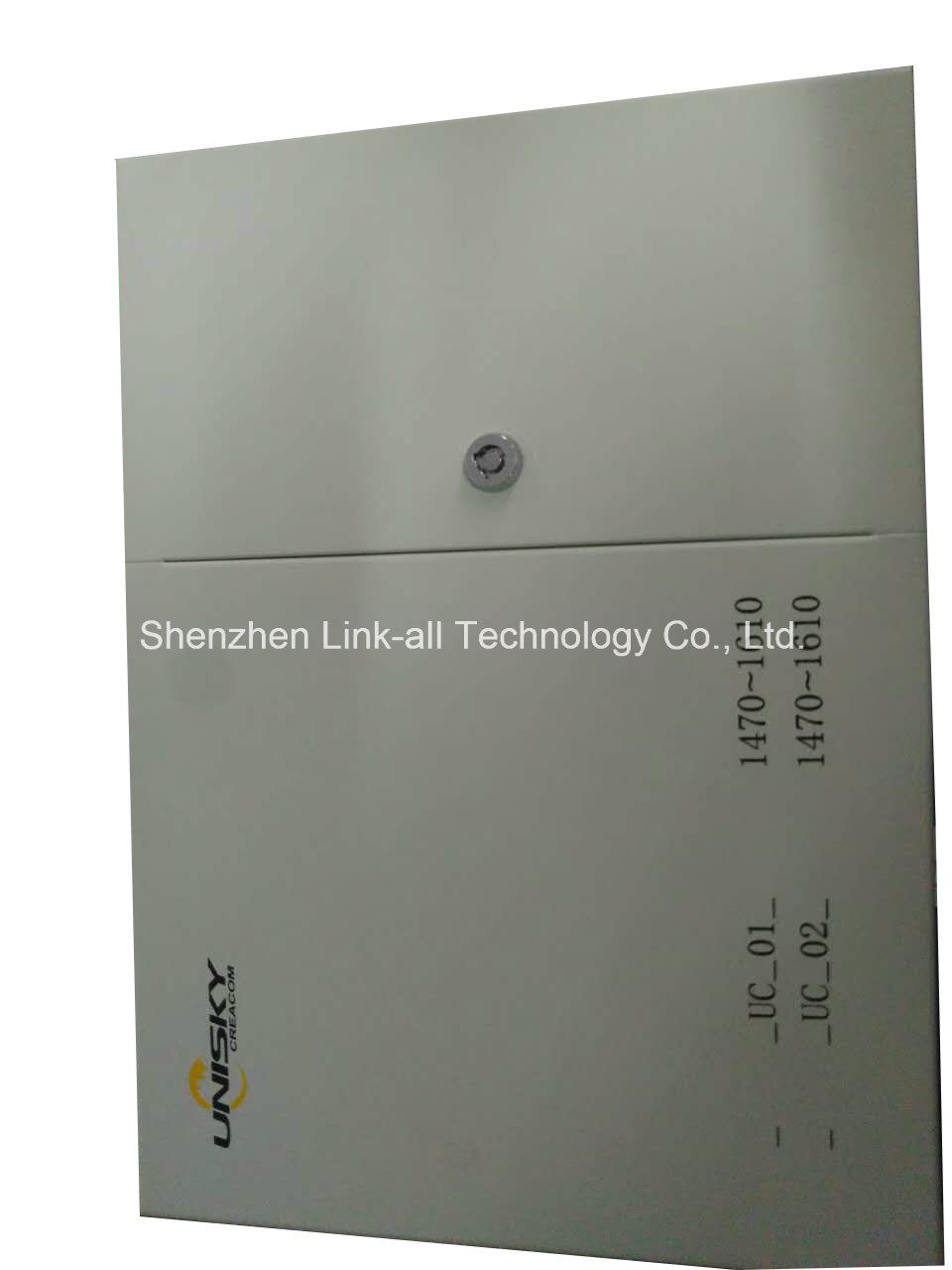

FTTx Fiber Distribution Box Wall Mount Case

Features

      The UNISKY aluminium FTTx wall mount cases are light weighted, full set and easy to install. Each type has more than one cable entry ports, allowing higher flexibility that accommodates various application environments. Each unit comes with standard accessories including faceplate, adaptor, splice tray, cable-mounting accessories, protection sleeve… etc and they are all "Ready to Use". Very broad adaptor types are now available.
      They are designed to organize and administer optic cables and passive optical splitters and provide mechanical protection for cables, splices, connectors and passive optical splitters.Applications

Specifications

Model Maximum Port # Dimensions (mm) Unit Weight (kg) Shipping Weight (kg)
UNWM-18-CTYPE-4-CTYPE-S18 + 4 280x200x801.2 2.0
UNWM-36-CTYPE-8-CTYPE-S36 + 8 370x350x1102.53.3
UNWM-48-CTYPE-8-CTYPE-S48 + 8 370x350x1102.83.6

Adapter

Insertion Loss <0.20dB
Durability <0.20 dB typical change, 1000 matings
Operating Temperature -40 to + 85°C
Adapter  TypeFC/UPC or SC/UPC or Customer Specified

 Ordering Information

UNWM-18-CTYPE-4-CTYPE-S
UNWMUNISKY Wall Mount
18Output Ports Maximum Port
CTYPEOutput Ports Connector Type: SC/UPC or customer specified
4Input Ports Maximum Port
CTYPEInput Ports Connector Type: FC/UPC or customer specified
SS: Singlemode; M: Multimode

UNWM-36-CTYPE-8-CTYPE-S
UNWMUNISKY Wall Mount
36Output Ports Maximum Port
CTYPEOutput Ports Connector Type: SC/UPC or customer specified
8Input Ports Maximum Port
CTYPEInput Ports Connector Type: FC/UPC or customer specified
SS: Singlemode; M: Multimode

UNWM-48-CTYPE-8-CTYPE-S
UNWMUNISKY Wall Mount
48Output Ports Maximum Port
CTYPEOutput Ports Connector Type: SC/UPC or customer specified
8Input Ports Maximum Port
CTYPEInput Ports Connector Type: FC/UPC or customer specified
SS: Singlemode; M: Multimode
Shenzhen Link-all Technology Ltd (manufacturer) was founded in 2012, and we have been endeavored in research and development, production and sale of passive optical components and modules, all kinds of transceivers, PLC Splitters, broadband access products and so on.

The predecessor of our company Unisky Creacom Technology Co., Ltd (Trading company ) was founded in 2006, Since then, we've provided to major Telecomm Operators of Hong Kong, Macao and Singapore with multiple communication products and solutions, The outstanding features and advantage are professional and excellent sales team, efficient and orderly management, competitive price, extensive superior sales channels, as well as high standard quality and flexible prices

Over the years we have gained extensive technical expertise as well as practical experience in the field of optic communication products. Link-all is committed to product design, research and development, manufacturing, service support for global data center, cloud computing, TV broadcasting network, metro network, broadband access network and so on.

Up to now, Link-all's products have been shipped to over 60 countries including USA, Europe, South America, Asia, Arica and other regions as well, we also have offered OEM and ODM custom design services to customers now, welcome any inquiries. Join us today, let's shake hands and create double wind world.
