FTTX FTTH Fiber Optic PLC Splitter Bare Fiber Type
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Singlemode and Multimode |
| Connection Structure: |
Sc/LC/St/FC |
| Brand: |
Fiberlink or OEM |
| Sheath Material: |
PVC or LSZH |
Product Description

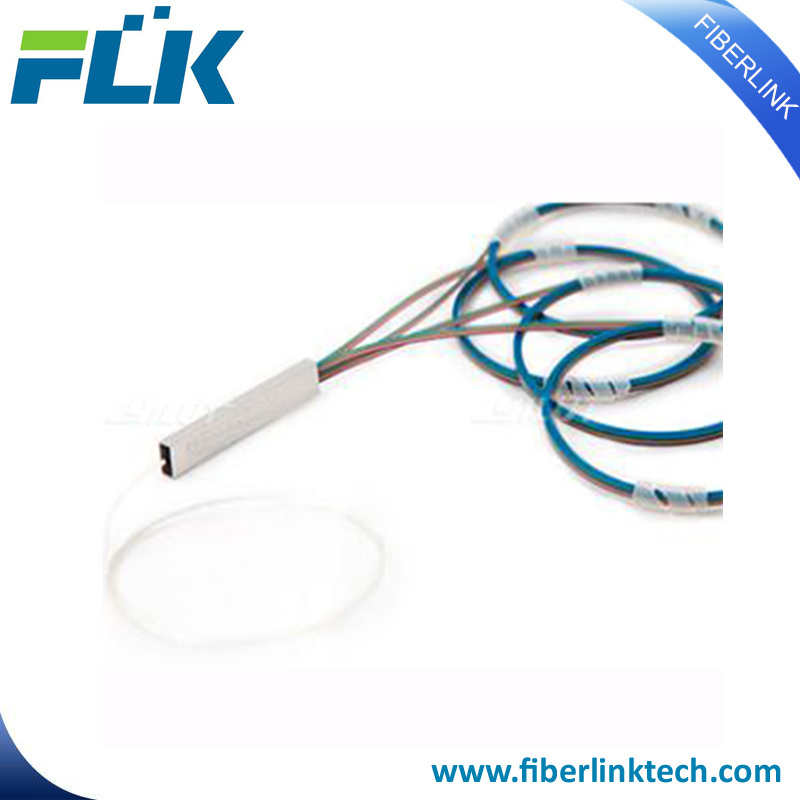

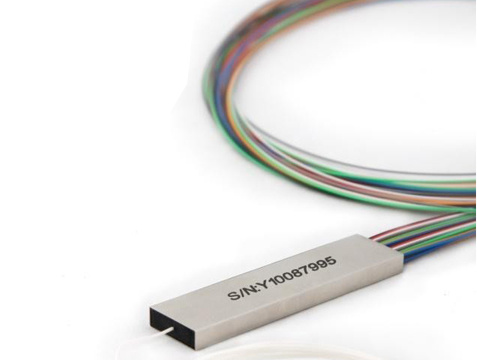

Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Fiberlink provides whole series of 1xN PLC Splitter and 2xN PLC Splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Features
1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength: From 1260nm to 1650nm
6) Wide Operating Temperature: From -40ºC to 85ºC
7) High Reliability and Stability
Applications Compliance
1) Can be used for FTTX Systems 1) Telcordia GR-1209-CORE-2001
2) Passive Optical Networks (PON) 2) Telcordia GR-1221-CORE-1999
3) CATV TV Networks (CATV) 3) YD/T1117-2001
4) Optical Signal Distribution
1xN PLC Splitter Specifications
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Fiber Type | SMF28-e or customer specified |
| Operating Wavelength (nm) | 1260~1650 |
| Insertion Loss (dB) | Typical | 3.7 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| Max | 4.0 | 7.2 | 10.5 | 13.5 | 16.9 | 21.0 |
| Loss Uniformity(dB) | Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 |
Temperature Stability
(-40~85 ºC)(dB) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 |
| Operating Temperature (ºC) | | -40~85 |
| Storage Temperature (ºC) | | -40~85 |
| Package Size (mm) | | 50x7x4 | 60x12x4 | 80x20x6 | 100x40x20 |
Note: All the data above does not include connectors.
Add an additional 0.2dB loss per connector.2xN PLC Splitter Specifications| Port Configuration | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 |
| Fiber Type | SMF28-e or customer specified |
| Operating Wavelength (nm) | 1260~1650 |
| Insertion Loss (dB) | Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17.0 | 21.0 |
| Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
| Loss Uniformity(dB) | Max | 1.0 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 |
| Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1.0 |
Temperature Stability
(-40~85 ºC)(dB) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 |
| Operating Temperature (ºC) | | -40~85 |
| Storage Temperature (ºC) | | -40~85 |
| Package Size (mm) | | 50x7x4 | 60x12x4 | 80x20x6 | 100x40x20 |
| | | | | | | | | |
Note: All the data above does not include connectors.
Add an additional 0.2dB loss per connector.Ordering Information| FPS | XXX | X | XX | X | XX | X | X |
| Port Configuration | Input Fiber Type | Intput Fiber Length | Output Fiber Type | Output Fiber Length | Input Connector | Output Connector |
| F=Fiberlink | 102=1x2 | B= 250um Bare Fiber | 10= 1.0m | B= 250um Bare Fiber | 10= 1.0m | 0=None | 0=None |
| P=PLC Splitter | 104=1x4 | L= 900um Loose tube | 15= 1.5m | | 15= 1.5m | 1=FC/UPC | 1=FC/UPC |
| S=Bare fiber | 108=1x8, | T= 900um Tight buffer | 20= 2.0m | | 20= 2.0m | 2-FC/APC | 2-FC/APC |
| | 116=1x16 | | | | … … | 3=SC/UPC | 3=SC/UPC |
| | 132=1x32 | | | | | 4=SC/APC | 4=SC/APC |
| | 164=1x64 | | | | | 5=LC/UPC | 5=LC/UPC |
| | 202=2x2 | | | | | 6=LC/APC | 6=LC/APC |
| | 204=2x4 | | | | | X=customized | X=customized |
| | 208=2x8, | | | | | | |
| | 216=2x16 | | | | | | |
| | 232=2x32 | | | | | | |
